Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel

  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
  • Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificated
Model Number GAT-ESD305
Minimum Order Quantity Negotiable
Price negotiation
Packaging Details wooden case+carton box
Delivery Time 3-6 working days after received your payment
Payment Terms T/T ,western Union,LC,Paypal, D/P, D/A, D/P
Supply Ability 2,000pcs per month
Product Details
Product Name Human Body Esd Tester Material 304 Stainless Steel
Accessories Wrist-strap, Right And Left Shoe Sample Available
Working Environment Indoor / Outdoor ( Shelter),-10-50℃ Application Factory / Lab
Highlight

Human Body Esd Wrist Strap Tester

,

Anti Static Esd Wrist Strap Tester

,

AC220V esd checker
Leave a Message
Product Description

Goldantell GAT-ESD305 Anti-Static Human Body Esd Tester Tool Esd Wrist Strap Shoes Tester


Human Body ESD Tester Specification
1
Instrument Dimensions
8 inch LCD monitor:
display all info of users, like photo, name, card ID,depart, entry time,etc.
2
Pedal size
W 400 x L 420 x H 20 (mm)
3
Operating voltage
input AC220V output DC12V
4
Working hours
unlimited
5
Environmental conditions
Humidity: 0%~90%, Temperature: 5C°~ 40°C
6
Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
7
Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper
and lower limit values of the test range can be adjusted according to customer requirements.)
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
Human Body Esd Tester Features & Functions
Human Body ESD tester has 4 modes to choose from:
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements



There are 3 types of the esd type:

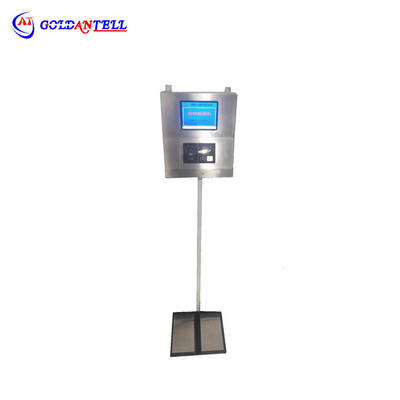

Type one:Esd tester installed in vertical column

 Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 0

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 1

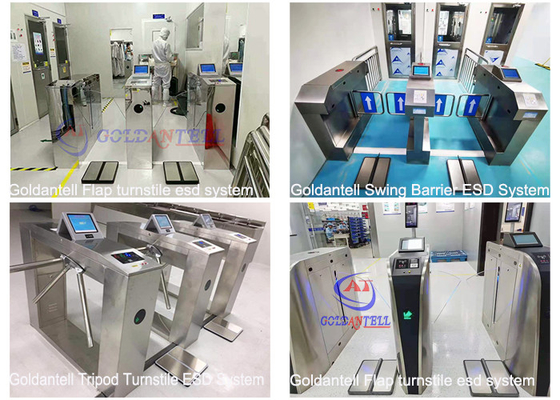

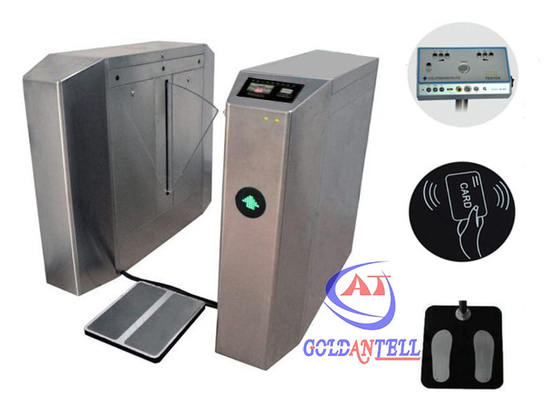

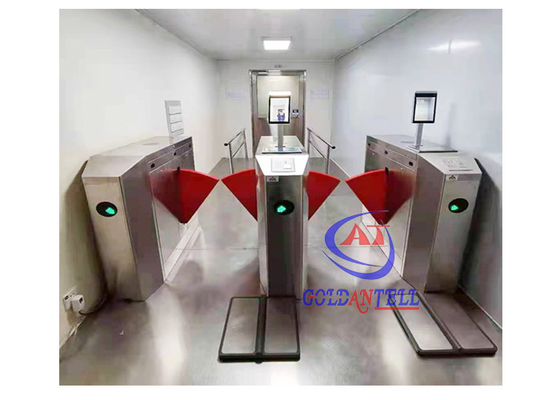

 Type two:installed in turnstile gate

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 2
Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 3

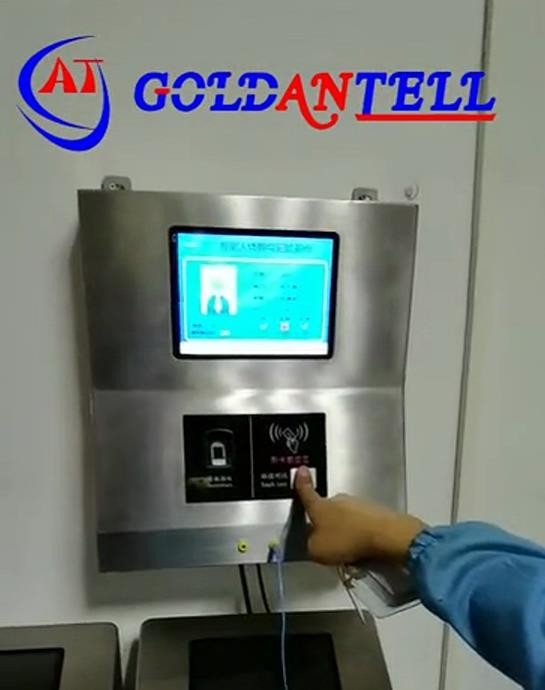

Type three:mounted on wall

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 4

Surface picture:

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 5

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 6

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 7

Working mode Instruction

① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.

Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 8

Package:inside carton,outside crate package or closed wooden package
Anti Static Human Body esd checker Esd Wrist Strap Tester 304 Stainless Steel 9
