Goldantell Alarm Voice Prompts Human Body Comprehensive ESD Tester Anti-Static Checker Tool Esd Wrist Strap Shoes Tester
ESD Tester Features
It can be used to save data online, with signal output, 8 inch display monitor, included related software, tester and voice prompts (additional), and employee card access control.
1. ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.
2. Just install SQL Server2000/2008 and run the access control management software system on any computer in your
company.

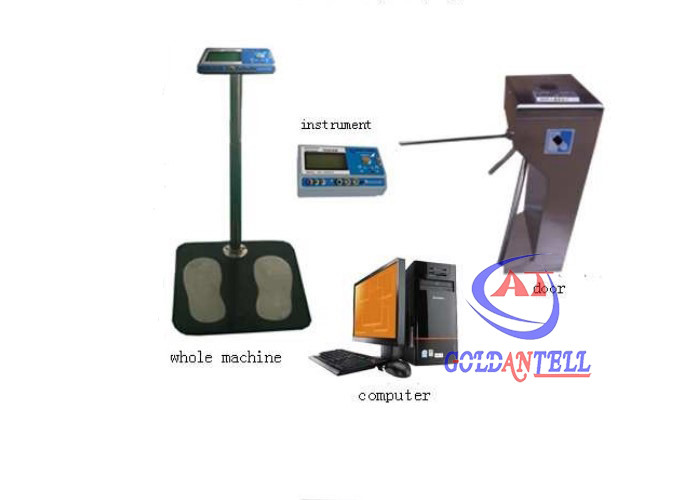

3. Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types). To monitor employees' compliance with anti-static requirements in real time.
GAT-ESD305 ESD Tester Parameter
|
1
|
Instrument Dimensions
|
8 inch LCD monitor:
display all info of users, like photo, name, card ID,depart, entry time,etc.
|
|
2
|
Pedal size
|
W 400 x L 420 x H 20 (mm)
|
|
3
|
Operating voltage
|
input AC220V output DC12V
|
|
4
|
Working hours
|
unlimited
|
|
5
|
Environmental conditions
|
Humidity: 0%~90%, Temperature: 5C°~ 40°C
|
|
6
|
Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
|
|
7
|
Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper
and lower limit values of the test range can be adjusted according to customer requirements.)
|
|
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
|
There are 3 types of the esd type:

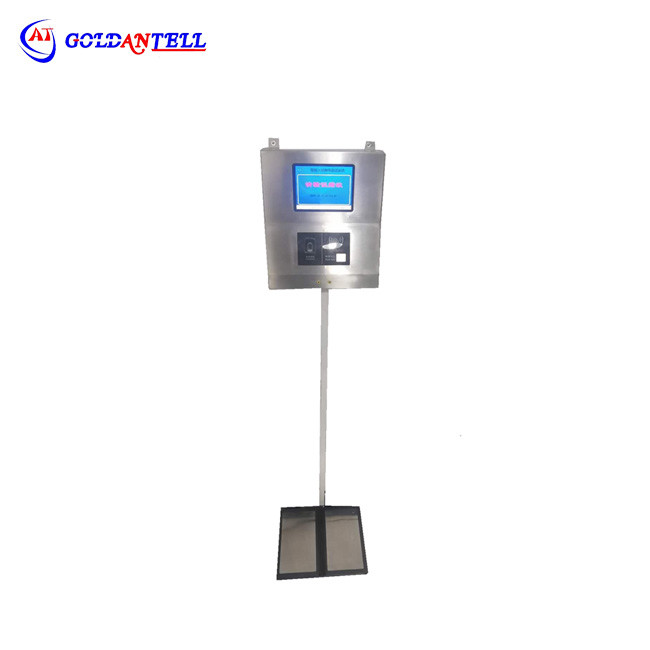

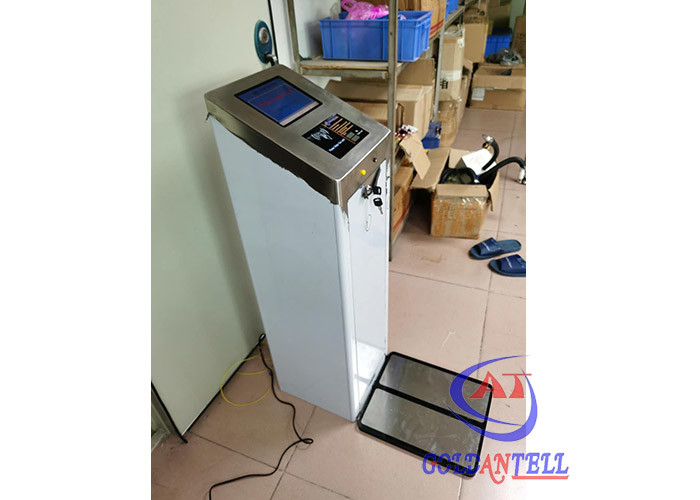

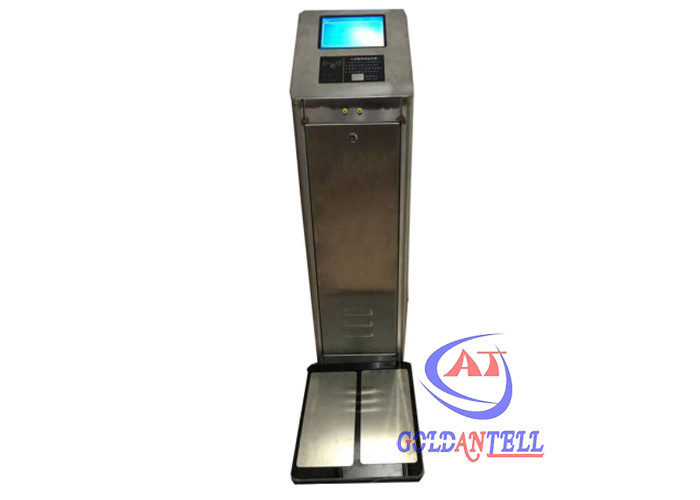

Type one:Esd tester installed in vertical column

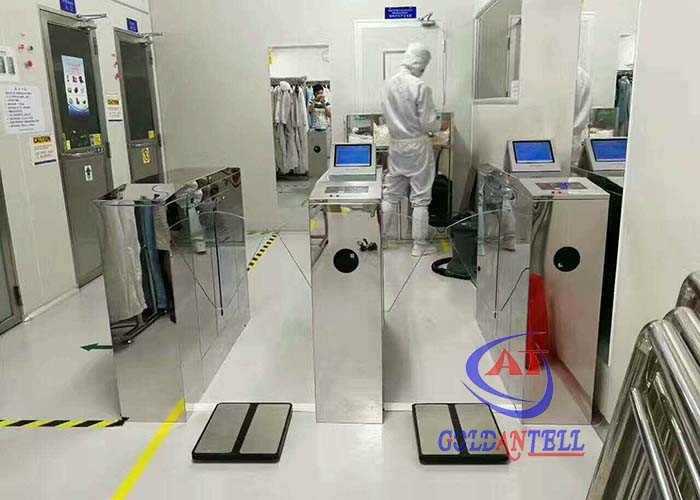

Type two:installed in turnstile gate
Type three:mounted on wall
Surface picture:
Working mode Instruction
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
Package:inside carton,outside crate package or closed wooden package
FAQ
1- Can you do OEM service?
Goldantell:Sure,OEM and ODM are our strengths.
2-Are you factory or trading company?
Goldantell:We are a source factory with 14 years experiences in this line
3- Can I purchase the ESD system without gate?
Goldantell:Sure,you can purchase ESD system only,there are 3 kinds options:
01-to mounted on wall type
02-the ESD system built in a 1 meter height vertical box type.
03-installed in turnstile gate
4- What is the leading time?
Goldantell:Our leading time for samples 3-5 working days,for bulk order like 100-500 sets,
about 20-35 working days.
5- What is the delivery way?
Goldantell:By express,by air or by sea.
