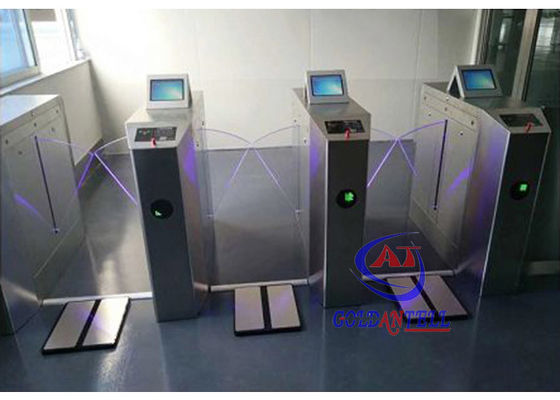

8 Inch LCD Monitor ESD Gate Stainless Steel Turnstiles For Lab / Facotry
GAT-ESD305 ESD Tester Parameter
| 1 |
Instrument Dimensions |
8 inch LCD monitor: |
| 2 |
pedal size |
(W) 400mmx (L) 420mmx (H) 20mm |
| 3 |
Operating voltage |
input AC220V output DC12V |
| 4 |
Working hours |
unlimited |
| 5 |
Environmental conditions |
Humidity: 0%~90%, Temperature: 5C°~ 40°C
|
ESD Tester Descriptions
1. Item model: GAT-ESD305
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Swing barrier, Flap barrier or tripod door.
3. A 8 inch LCD monitor, display all info of users, like photo, name, card ID,depart, entry time,etc.
4. Software: available.
5. Test Range and Accuracy (The upper and lower limit values of the test range can be adjusted according to customer requirements)
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
6. Application: This product can work with electric door or intelligent turnstile gates in the air shower. It meets the standards of other countries.
7. Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
Turnstile Gate Parameter
| 1 |
Power |
AC220C±10V,50HZ |
| 2 |
Operating temperature |
-15°C--75°C |
| 3 |
Relative Humidity |
≤95%, No Condensation |
| 4 |
Arm length |
51cm |
| 5 |
Passing Speed |
30~40 persons/min(IC Card) |
| 6 |
Motor |
0.5NM/24V(Fully Automatic) |
| 7 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V |
| 8 |
Communication Connection |
RS485 Communication Module Standard. |
| 9 |
Material |
SUS304,thickness is no less than 1.3mm |
| 10 |
Protection Grade |
IP54 |
| 11 |
Colour |
SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 |
Operation Place |
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
Stardard Features & Functions of esd tester system
1. ESD equipment can be quickly tested, and three independent devices (Left Shoes, Right Shoes, Wrist Strap) be completely ESD tested at one time.
2. Just install SQL Server2000/2008 and run the access control management software system on any computer in your company.
3. Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types). To monitor employees' compliance with anti-static requirements in real time.

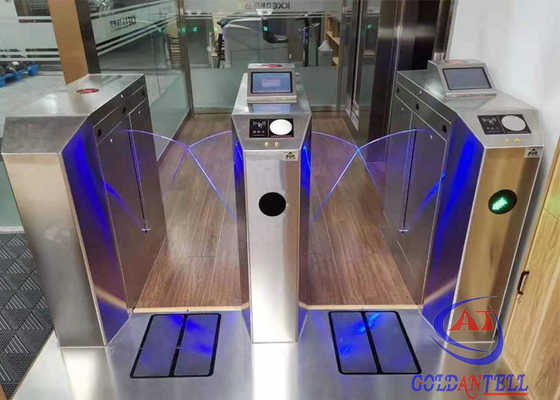

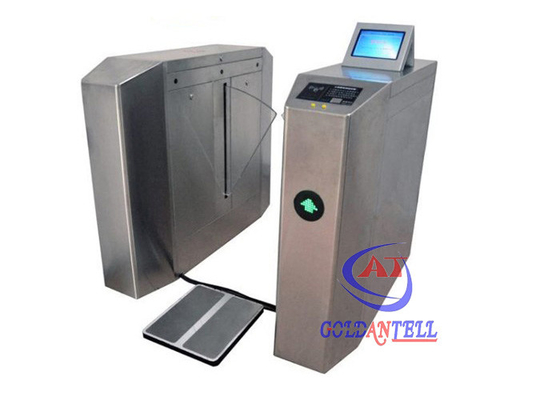

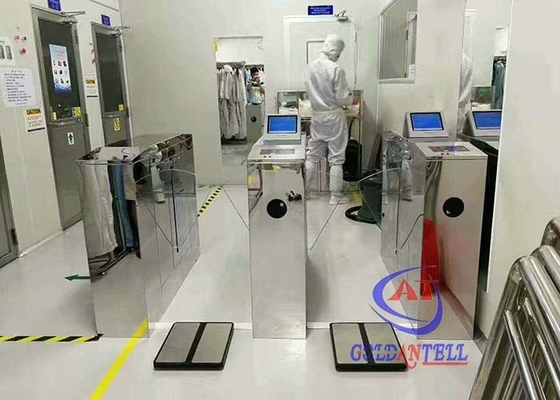

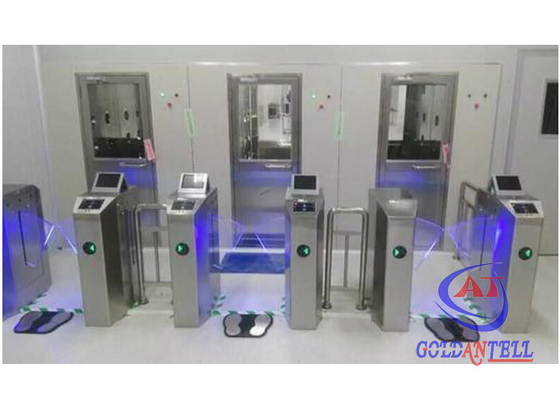

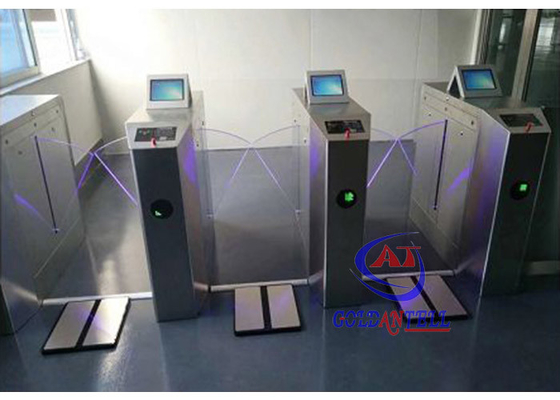

ESD Turnstile Product Photos
Working mode Instruction
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
