980mm Height Bi Directional Flap Barrier Gate Security Subway Turnstile

  • 980mm Height Bi Directional Flap Barrier Gate Security Subway Turnstile
  • 980mm Height Bi Directional Flap Barrier Gate Security Subway Turnstile
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-206 series
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 5-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size L1200*W300*H1000mm Passing Speed 40 Person/min
Material 304 Stainless Steel Type Single Core Or Dual Core Unit
Working Environment Indoor / Outdoor ( Shelter),-10-70℃ Certification CE
Warranty One Year Power Supply AC100V-240V
Highlight

Bi Directional Flap Barrier Gate

,

980mm Height Flap Barrier Gate

,

Subway Turnstile
Leave a Message
Product Description
980mm Height Bi-Directional Flap Barrier Gate Security Subway Turnstile
Product Brief
  • Compatible with face thermal detection, NFC/RFID card, QR code/ticket scanner, ESD tester, and fingerprint reader access control devices
  • Smooth operation with low noise and double core engine for both sides access
  • Can be combined with swing barriers or turnstiles as manual lanes for handicapped users
  • Available in single core or dual-core movement structures
  • Single wing or double wings structures available for different lane width requirements
  • Ideal for low traffic and light duty sites requiring affordable solutions
Technical Specifications
Size: 1200mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length: 285 mm (can be custom-made)
Pass speed: 40 persons/min (open), 30-35 persons/min (closed)
Passage width: ≤600mm (or <900mm width, custom-made)
Normal running life: 3 million cycles
Time of opening/closing: 0.6 second
Time to work after power on: 3 seconds
Reset time after break down: 10 seconds
Direction: Single or bi-directional (optional)
Drive motor: Brushless motor (or servo motor)
Working environment: Indoor/outdoor (with tent) -10℃～70℃
Communication interface: Standard RS 485 interface, distance ≤1200m
Input interface: +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity: ≤90% (non-condensing)
Housing material: Domestic standard 304 # stainless steel
Working voltage: AC220±10%V 50±10%HZ
Security Features
  • Emergency open function for automatic unlocking during evacuations
  • Infrared sensors for obstacle detection with automatic bounce-back and alarm signals
  • Anti-trailing, orientation discrimination, and anti-pinch injury functions
  • Light and sound alarm indication to prevent illegal entry
  • LED lights and indicators for passing direction
  • Unique sensors for visitor detection
  • Adjustable operation speed based on passenger flow
Product Show

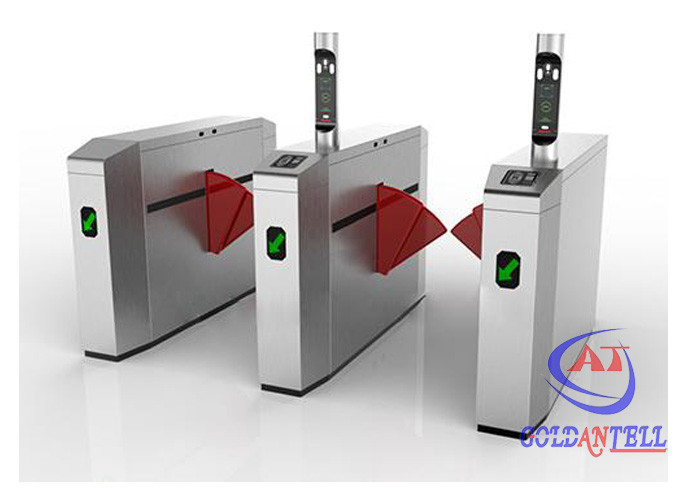

980mm Height Bi Directional Flap Barrier Gate Security Subway Turnstile 0
Project Applications
  • Factories
  • Office buildings
  • Clubs
  • Intelligent communities
  • Airports
  • Railway stations
  • Docks
  • Scenic spots
  • Parks
  • Student dormitories
  • Pedestrian passages
Frequently Asked Questions
What is your MOQ?
Any quantity is acceptable.
Can your machines be used outside?
With waterproof function, could be used outside.
What is the warranty for the machine?
Within 1 year, if any quality problems, we will offer the accessories.
Can I customize it?
Yes, welcome. We are the manufacturer with rich OEM/ODM experience for government projects.
What are your terms of payment?
100% paid before shipment. We'll show you photos or videos of products and packages before payment.
What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Package Information
  • Inner carton package with two outer package options: crate or closed wooden package
  • Shipping times: <10pc ships in 7 working days; >50pc ships in 10-15 working days
  • Customized products require 2-3 additional working days
