Product Details:
Payment & Shipping Terms:
|
Application: | Fare Collection,ticket Station,Office | Transit Speed: | 30~40 Persons / Min |
---|---|---|---|
Direction: | One Or Bi-direction(optional) | Working Environment: | -15-70℃ |
Communication Port: | RS485 ,TCP/IP | Power Supply: | AC110 Or AC220+/-10% |
Size Of Product: | 1200*300*1000mm | Material: | 304 Stainless Steel/316 Stainless Steel |
Highlight: | Retractable Flap Barrier Gate,Pedestrian Flap Barrier Gate,pedestrian turnstile gate |

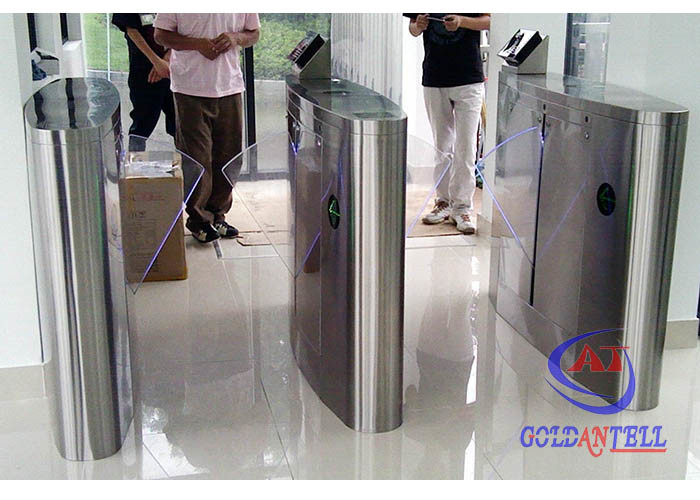

Pedestrian Retractable Flap Barrier Gate Fingerprint Dual Movement For Hospital
Description
1. Lighting LED indicator: green and red indicate the passing information.
2. Special stretch wing design, save closing time, improve the passage speed, prevent trailing , increase the security level.
3. Bi-directional lanes, integrate with latest facial detection temperature scanner, RFID / fingerprint / QR or barcode / ESD access control system, to manage.
4. Superior quality stainless steel material, can also customize for client.
5. Custom service: we can completely make customized products for you, like printing LOGO, design, etc,
Specifications
Item |
( single motor ), OR ( double motors ) |
Name |
Bridge type flap turnstile |
Size: |
1200mm (L) * 300mm (W) * 1000mm (H) |
Retractable arm length: |
260 mm |
Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
Passage width: | ≤600mm |
Normal running life: | 3 million |
Time of opening/closing: | 0.6 second |
Time to work after power on: |
3 seconds |
Reset time after break down: |
10 seconds |
Direction: | single or bi-directional (optional) |
Drive motor: | DC 24 V brush motor |
Working environment: |
indoor/outdoor (with a tent over) -10℃~70℃ |
Communication interface: |
standard RS 485 interface, distance ≤1200m |
Input interface: |
+12V level signal or pulse width>100 ms |
Relative humidity: | ≤90% coagulation free |
Housing material: |
domestic standard 304 # stainless steel |
Working voltage: | AC220±10%V 50±10%HZ |
Functions & Features
1. Fault detection and alarm functions, easy to use, and maintenance.
2. The running status can be programmed and controlled with the built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in the reset process,motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)
4. Anti-breakthrough function. The gate is locked automatically until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within the prescribed time, the system will cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc.
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on, complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function
Project Application
Competitive Advantage
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
