ESD Mechainsm Bi Directional Flap Barrier Access Control System For School

  • ESD Mechainsm Bi Directional Flap Barrier Access Control System For School
  • ESD Mechainsm Bi Directional Flap Barrier Access Control System For School
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-218 series
Document Different ESD Tester turnst...ll.pdf
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 5-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size L1200*W300*H1000mm Esd Tester LCD Screen And Software (optional)
Passing Speed 40 Person/min Testing Parts Wristband, Shoes, Finger Button
Material 304 Stainless Steel Working Environment Indoor / Outdoor ( Shelter),-10-70℃
Certification CE Power Supply AC100V-240V
Highlight

ESD Flap Barrier Access Control System

,

Bi Directional Flap Barrier Access Control System

,

Bi Directional Flap barrier turnstile
Leave a Message
Product Description
ESD Mechanism Bi-Directional Flap Barrier Access Control System For School
Product Description
Sport school tourniquet CE Certificate accesses control flip gate ESD Mechanism Automatic Bi-Direction
Product Brief
  • Flap barrier gate can be integrated with ESD tester system or other access control system for staff, providing civilized orderly access methods.
  • ESD equipment can be quickly tested, with three independent devices (Left Shoes, Right Shoes, Wrist Strap) completely ESD tested at one time.
  • LCD screen: optional, providing more options for system requirements.
  • Single core (movement) structure or dual core (double movement) structure available for different installation requirements.
  • Higher flow rate and better anti-tailgate functions.
  • Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passage.
Technical Specifications
Size: 1200mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length: 285 mm (can be custom-made)
Pass speed: 40 persons/min (open), 30-35 persons/min (closed)
Passage width: ≤600mm (or <900mm width, custom-made)
Normal running life: 3 million
Time of opening/closing: 0.6 second
Time to work after power on: 3 seconds
Reset time after break down: 10 seconds
Direction: single or bi-directional (optional)
Drive motor: brushless motor (or servo motor)
Working environment: indoor/outdoor (with a tent over) -10℃～70℃
Communication interface: standard RS 485 interface, distance ≤1200m
Input interface: +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity: ≤90% coagulation free
Housing material: domestic standard 304 # stainless steel
Working voltage: AC220±10%V 50±10%HZ
Security Features
  • Through TCP/IP communication technology, you can connect 255 human body comprehensive testing equipment (255 sets of Flap Turnstile / Tripod Turnstiles or other types) to monitor employees' compliance with anti-static requirements in real time.
  • Just install SQL Server2000/2008 and run the access control management software system on any computer in your company.
  • Emergency evacuation: During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
  • Can be set for single direction or two directions to go through the machine.
  • Supports Employee mode and guest mode. Employee mode requires EM card and can show Name, Card No., Date & Time.

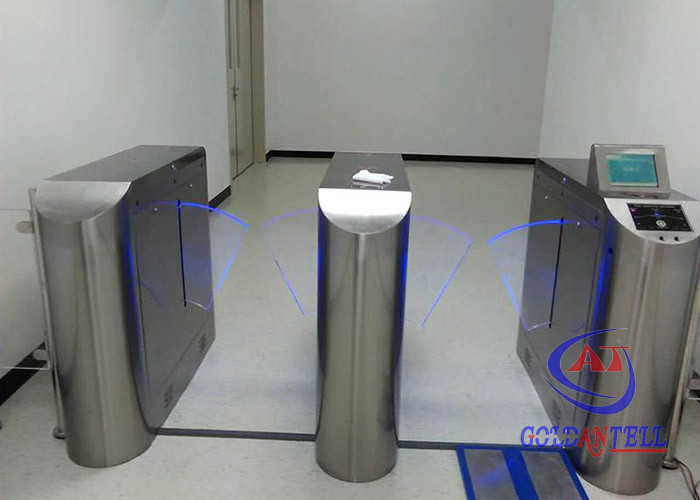

Product Show
ESD Mechainsm Bi Directional Flap Barrier Access Control System For School 0
Project Application
Factories
Office buildings
Clubs
Intelligent communities
Airports
Railway stations
Docks
Scenic spots
Parks
Student dormitories
Pedestrian passages
FAQ
Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. Our catalog can provide to help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Package Info
  • Inside with a carton package. Then outside, there are 2 kinds of packages under your choice:
  • Crate package and closed wooden package optional.
  • If <10pc, ship in 7 working days; >50, ship in 10-15 working days; For customized product, need 2-3 longer working days.
