Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile

  • Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile
  • Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile
  • Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-206 series
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 5-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size L1200*W300*H1000mm Passing Speed 40 Person/min
Material 304 Stainless Steel Type Single Core Or Dual Core Unit
Working Environment Indoor / Outdoor ( Shelter),-10-70℃ Certification CE
Warranty One Year Power Supply AC100V-240V
Highlight

Infrared access control flap barrier

,

Manual Card Collecting Turnstile

,

Infrared flap barrier turnstile
Leave a Message
Product Description
Half Height Infrared Access Control Flap Barrier Gate Manual Card Collecting Turnstile
Infrared Access Control smart manual card collecting turnstile half height exit Anti Pinch Security Door
Product Brief
  • Compatible with face thermal detection, NFC/RFID card, QR code/ticket scanner, ESD tester, and fingerprint reader access control devices
  • Optional LCD screen provides more system configuration options
  • Higher flow rate with enhanced anti-tailgate functions
  • Available in single core (movement) or dual core (double movement) structures for different installation requirements
  • Single wing or double wings structures available for different lane width requirements
  • Double protection with mechanical and infrared anti-pinch function for safer passage
Technical Specifications
Size: 1200mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length: 285 mm (can be custom-made)
Pass speed: 40 persons/min (open), 30-35 persons/min (closed)
Passage width: ≤600mm (or <900mm width, custom-made)
Normal running life: 3 million cycles
Time of opening/closing: 0.6 second
Time to work after power on: 3 seconds
Reset time after break down: 10 seconds
Direction: Single or bi-directional (optional)
Drive motor: Brushless motor (or servo motor)
Working environment: Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface: Standard RS 485 interface, distance ≤1200m
Input interface: +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity: ≤90% (non-condensing)
Housing material: Domestic standard 304 # stainless steel
Working voltage: AC220±10%V 50±10%HZ
Security Features
  • Auto close timer protection prevents unauthorized entry when no pedestrian passes through after delay time
  • LED indicator lights show lane availability (green arrow) or maintenance status (red cross)
  • Emergency evacuation: flaps automatically open during power failure and close when power resumes
  • RS485 connection for remote control of arm movement to meet special or fire control requirements
  • Standard electrical interface for easy integration with various readers/writers and computer management
Product Images

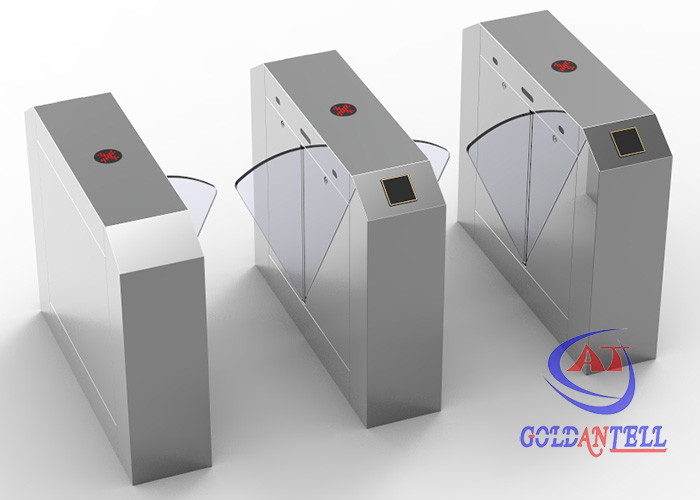

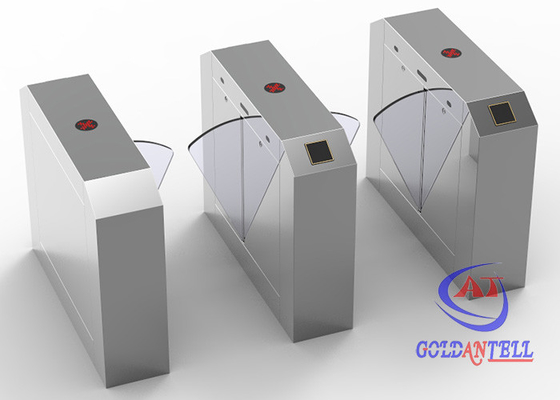

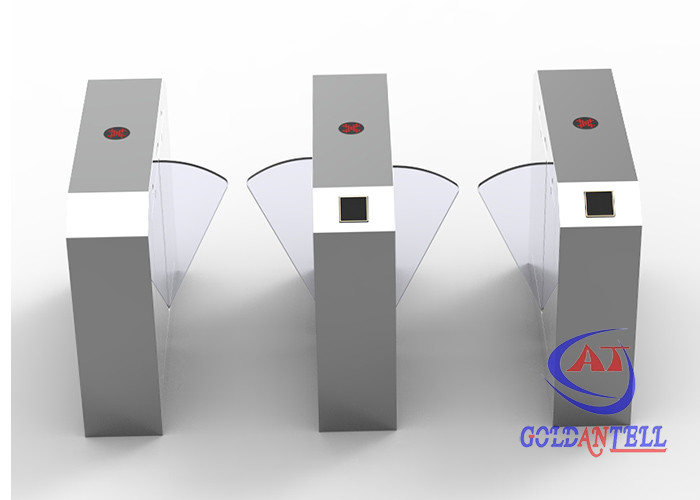

Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile 0 Half Height Infrared access control Flap Barrier Gate Manual Card Collecting Turnstile 1
Project Applications
  • Factories
  • Office buildings
  • Clubs
  • Intelligent communities
  • Airports
  • Railway stations
  • Docks
  • Scenic spots
  • Parks
  • Student dormitories
  • Pedestrian passages
Frequently Asked Questions
What is your MOQ?
Any quantity is acceptable.
Can your machines be used outside?
With waterproof function, could be used outside.
What is the warranty for the machine?
Within 1 year, if any quality problems, we will offer the accessories.
Can I customize it?
Yes, welcome. We are the manufacturer with rich OEM/ODM experience for government projects, etc.
What are your terms of payment?
100% paid before shipment. We'll show you photos/videos of products and packages before balance payment.
What are your terms of delivery?
EXW, FOB, CFR, CIF, DDU.
Package Information
  • Inner carton package with two outer package options: crate package or closed wooden package
  • Shipping times: <10pc ships in 7 working days; >50pc ships in 10-15 working days
  • Customized products require 2-3 additional working days
