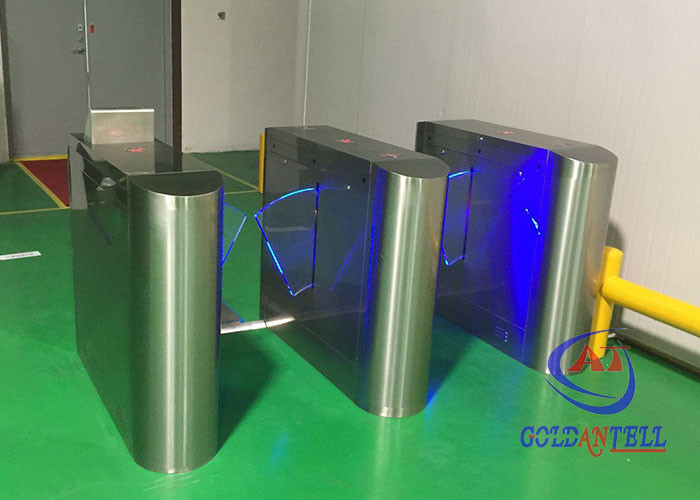

Airport Ticket Identification Swing Gate Turnstile Baffle Design

Airport Ticket Identification Swing Gate Turnstile Baffle Design

Airport Ticket Identification barcode reader identification swing gate turnstile Baffle Design

Product Description

1. Flap barrier gate, also called wing gate is one of the passage management equipment, mainly used for pedestrian passage management;

2. it has the characteristics of fast opening, safety, and convenience, and is an ideal managing and channeling device for high-frequency pedestrian access;

3. it has been widely used in airports, subway stations, and railway stations , docks, scenic spots, parks, student dormitories, pedestrian passages, etc.

4. System Integration: This equipment is integrated with mechanism,electric and micro- controller and various kinds of identification technologies,compatible with RFID card and barcode reader, to provide intelligent control and management to flow control.

Technology Parameters

Item	( single motor ), OR ( double motors )
Name	Bridge type sharp flap turnstile
Technical parameters
Size:	1200/1400mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length:	285 mm ( can be custom-made)
Pass speed:	35 persons/min (open), 25-30 persons/min (closed)
Passage width:	≤600mm ( or <900mm width, custom-made)
Normal running life:	3 million
Time of opening/closing:	0.6 second
Time to work after power on:	3 seconds
Reset time after break down:	10 seconds
Direction:	single or bi-directional (optional)
Drive motor:	DC 24 V brush motor
Working environment:	indoor/outdoor (with a tent over) -10℃～70℃
Communication interface:	standard RS 485 interface, distance ≤1200m
Input interface:	+12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA
Relative humidity:	≤90% coagulation free
Housing material:	domestic standard 304 # stainless steel
Working voltage:	AC220±10%V 50±10%HZ



Feature & Function

1. Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2. DC Brushless Motor, Maintenance Free

3. Auto-lift-arm function: the arm can lift automatically with alert when the power is on again.

4. Auto-drop-arm function: the arm can drop down automatically (default) (or free passing) when the power is off.

5. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you).



Details Photos



Application Location

♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums.

♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.

♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.



FAQ

1) How about your package?

Vivian: Seaworthy wooden case + Foam.

2) How about the payment method?

Vivian: Standard products: 50% deposit, 50% balance payment before shipment.

3) How about the lead time?

Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
