Entry digital screen anti-static turnstile tester system security control Flap Barrier with Smart card fingerprint reader
ESD detection Descriptions
1. Item model: GAT-ESD303
2. It can stand and work alone, or be built into different styles of Channel turnstile gates like a Flap barrier or tripod.
3. Has has a 4.3-inch LCD screen, voice prompts, intuitively display the test results, no software.
4. Parameters of ESD Checker_ Factory default Settings (stand-alone version)
Wrist band: 750KΩ – 10MΩ, test range: 750KΩ – 10MΩ, accuracy ±10%.
Anti-static shoes: 750KΩ – 100MΩ, test range: 750KΩ – 100MΩ, accuracy ±10%.
5. Power supply model: 9V, 1A.
6. Sure!! You can choose to add a variety of access control systems such as card swiping function, networking function. This product can work with electric door or intelligent turnstile gates in the air shower (please note this customized function will increase the price and cost).
Test Parameter
|
Font color
|
Static shoes test
|
wrist strap test
|
alarm sound
|
results
|
|
Red words
|
R＜750KΩ |
R＜750KΩ |
Voice prompt
|
unqualified
|
|
Green words
|
R≥750KΩ |
R≥750KΩ |
voice prompt
|
qualified
|
|
Red words
|
R＞100MΩ |
R＞10MΩ |
voice prompt
|
unqualified
|
Stardard Features & Functions of esd tester system
1. When the tester on the pedals, touch test button, anti-static shoes worn by personnel with the static test between the pedals can form a loop, (electrostatic test between the pedal and the floor should be insulated) we measure is that the loop resistance, when the loop resistance within a prescribed scope, electrostatic conductive performance good shoes and personnel with electrostatic voltage in a safe range.
2. At this time, personnel entering the electrostatic control area will not damage the precision electronic products due to the release of their own electrostatic charge.
3. If the electrostatic test fails, you will not be allowed to enter the electrostatic control area.
4. Please replace the electrostatic protection equipment and eliminate your own static electricity. After passing the test, you can enter the relevant area.

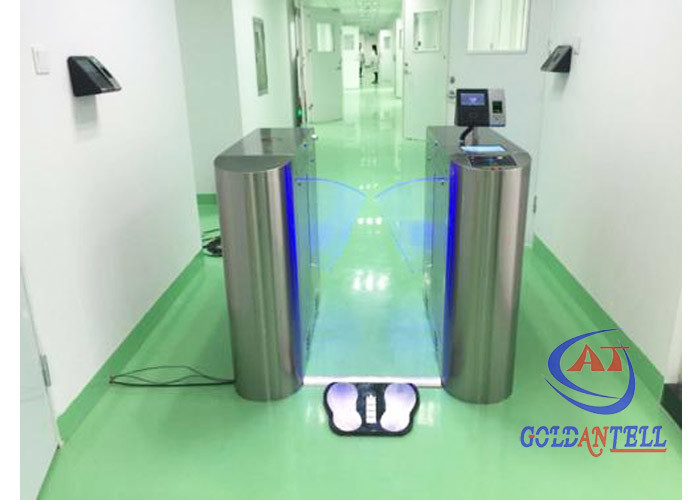

Product Photos
Operation Instruction
1. After power on, the screen is standby. At this time, you can directly test whether the wrist strap and electrostatic shoes are qualified.
2. Click the screen to call up the login menu, and enter "88888888" password to enter the parameter setting interface.
3. After entering the setting interface, the first display is the parameters of the wrist band. The upper and lower limits can be modified autonomously according to requirements.
4. Click the the language setting. The language displayed by the instrument can be set in English / Chinese.
FAQ
1. Can I have a system that only supports esd test which supports control software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
2. What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
3. Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
4. What is the MAQ?
Vivian: 1 pc.
