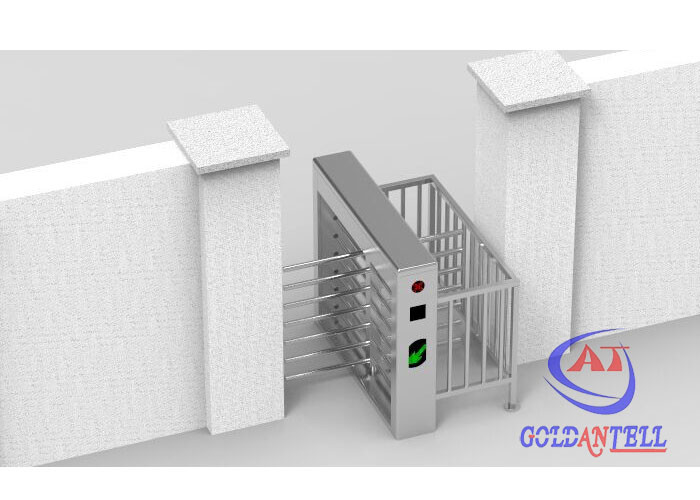

Public Toilets Bi Directional SUS304 Full Height Turnstiles Coins Operated
Public toilets SUS304 cheap full height turnstiles coins operated Bi-Directional Stadium Visitor entry system
Quick Descriptions
1) The Turnstile gates are available with unique features for a wide range of security, commercial and industrial applications to meet customer satisfaction.
2) Four arms can rotate in one or two directions by controlled drive mechanism. in case of emergency turnstile can be unlocked either manually or automatically. Robust mechanism with intelligent control unit makes it more reliable. It is intensive use with smooth operation.
3) The body is made from brushed stainless steel which creates a seamless and elegant design.
4) Its unique features with extensible functions allow it to integrate with various kinds of access control, including rfid / fingerprint/ qr code /barcode / ticket / ESD testing / facial recognition system.
5) Application places: prison/universaty/station/public toilent/factory/ GYM / fitness center entrance,etc.
Specifications
| Size |
1400 (L) * 280 (W) * 1000 (H) (MM)
|
| Working voltage |
AC220±10%V 50±10%HZ |
| Working movement |
DC 24 V solenoid valve |
| Roof Dimensions : |
Φ 1500 MM |
| Reset time after break down: |
10 seconds |
| Passage width: |
≤600 mm
|
| Time of opening: |
0.2 second |
| Pass speed: |
30 persons/min |
| Time to work after power on: |
3 seconds
|
| Normal running life: |
3 million |
| LED light: |
direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃
|
| Housing material |
domestic standard 304# stainless steel
|
| Relative humidity: |
≤90% coagulation free |
| Communication interface: |
standard RS 485 interface, distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
|
Main Functions & Features
1. Reasonable reliable design, low noise, smooth operation and long service life.
2. Standard switch signal input, convenient external switch or barcode, IC card, fingerprint and other access controller to control the roller gates action.
3. With multiple operating modes to choose from, you can bi-directional card reader or fingerprint-limiting; While reader or fingerprint, the forbidden line of the other direction; One side of the card reader or fingerprint, and the other direction of free passage.
4. Hydraulic shock absorbers can be freely adjusted the return of the Turnstile.
5. Anti-recoil, pedestrians from the opposite direction into the channel, immediately locked.
Product Design
More Design Options
As you see, the shape of the outside obstacle fence can be customized or can add an extra barrier for pedestrian control.
Outdoor Installation
♦ Stadium
♦ Prison
♦ Factory
♦ Bank
♦ School
♦ Airports
♦ Stations
Why Choose Us
1. All items have 24 month quality guarantee.
2. Custom design shape and logo,for large amount, custom logo available for free.
3. Fast delivery.
4. Supported by professional engineers.
5. Special discount of our distributors or agents in their area.
6. Packing in standard export carton, suggest you pack it by wooden case to protect the products.
7. CE, ROSH available.
