Biometric recognition Wing Optical telescope flap barrier turnstile CE certificate Subway Station barrier gate
Product Brief
1) Special stretch wing design, save closing time, improve the passage speed, prevent trailing, increase the security level.
2) System Integration: be compatible with Face, thermal, RFID / fingerprint / QR or barcode / ESD access control system, to manage.
3) Application:widely used in airports, subway stations, and railway stations, docks, scenic spots, parks, student dormitories, pedestrian passages, etc.
4) LCD screen: optional, supply more options for system requirement.
5) Standard functions: Anti-tailgating/ anti-retrogradation function, anti-pinch, time attendance, or passing management, etc.
Technical specification
| Item |
single motor or double motors |
| Name |
Bridge type art flap turnstile |
| Technical parameters |
| Size: |
1400mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length: |
285 mm ( can be custom-made) |
| Pass speed: |
40 persons/min (open), 30-35 persons/min (closed) |
| Passage width: |
≤600mm ( or <900mm width, custom-made) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Drive motor: |
brushless motor ( or servo motor) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC220±10%V 50±10%HZ |
Security Features
1. Auto close timer protection. Flap will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
2. LED indicator function. LED indicator light is available at both directions to indicate if the lane is available to use (green arrow) or lane is closed for maintenance (red cross).
3. Emergency evacuation.During power failure, flaps will automatically open. Flap wing will automatically close back after power supply resumed.
4. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
5. It is with a standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by a computer.

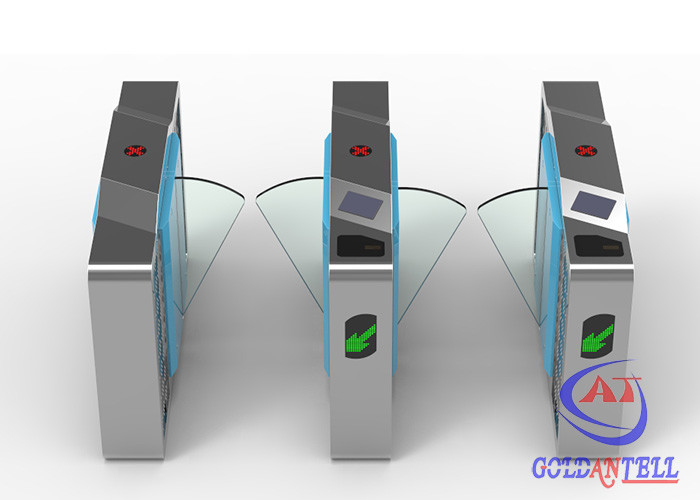

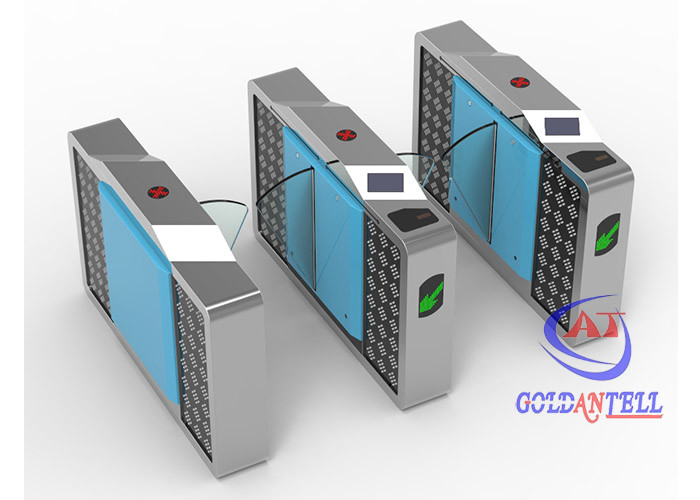

Product Show
Onsite Application
Hotel,
Factory,
Bank,
Prison,
Hospital,
School,
Enterprise’s Entrance and Exit Attendance.
Why Choose Us?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mold design, save your money!
4. We Timely Response to every customer! Response to customers no matter who did business with us or not in 3mins, and assist with project solutions later.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
2. crate package and closed wooden package optional.
3. if <10pc, ship in 7 working days ; > 50, ship in 10-15 working days; For customized product, need 2-3 longer working days.
FAQ
Q: How long is your warranty period?
A: Standard One-year guarantee & lifetime technical support.
Q: How about the lead time?
A: Regular products need 7-10 working days; the customized products need 10-15 working days.
Q: What is the flap gate Working environment?
A: They can be used indoor and outdoor (added the rain shed)
Q. Can I customize it?
A: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
