Product Details:
Payment & Shipping Terms:
|
| Wing Panel: | Red / Blue / Transparent / Black Color | Power Supply: | 100-240V(AC) |
|---|---|---|---|
| Throughput Rate: | 35~40 Persons Per Min | Working Environment: | Indoor / Outdoor ( Shelter),-15-75℃ |
| Body Size: | 1200*280*1000mm | Communication Port: | RS485 ,TCP/IP |
| Application: | Indoor, Outdoor | Material: | 304 Stainless Steel/316 Stainless Steel |
| High Light: | 0.6s Flap Barrier Gate,240VAC Flap Barrier Gate,240VAC biometric flap barrier |
||
Anti Punching Dual Channels 0.6s Biometric Flap Barrier Gate
Anti-Punching 0.6s Biometric Scanner Dual Channels single movement flap barrier access control
Quick Description
1. Luxury Intelligent flap barrier gate can be made into a single motor or dual-motor type for multiple passageways of entrance/ exit.
2. Has infrared reset function (Optional:4 pairs or 6 pairs Infrared), infrared anti-pinch function, and anti-tailgate functions.
3. LED indicator lights: green and red indicate the passing information.
4. No noise, long life.
5. Installed in indoor or outdoor.
6. Ensure rapid, efficient, and safe access control.
Technical Parameters
| Item |
( single motor ), OR ( double motors ) |
| Name |
Bridge type sharp flap turnstile |
| Technical parameters | |
| Size: |
1200/1400mm (L) * 300mm (W) * 1000mm (H) |
|
Retractable arm length: |
285 mm ( can be custom-made) |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | ≤600mm ( or <900mm width, custom-made) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
|
Time to work after power on: |
3 seconds |
|
Reset time after break down: |
10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
|
Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms |
| Relative humidity: | ≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Function& Features
1. Rapid identification technique, available to identify accurately and efficiently the latest face temperature detection, bar code /ticket, NFC, ID card, IC card, etc.
2. Real-time trouble self-detect and alarm indication, ensuring system safe operation, and facilitating maintenance and operation.
3. With direction indication, guiding passenger to entry and exit.
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
5. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
6. The processing mode in emergency or in special conditions.
7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by managing the computer.
10. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Product Display

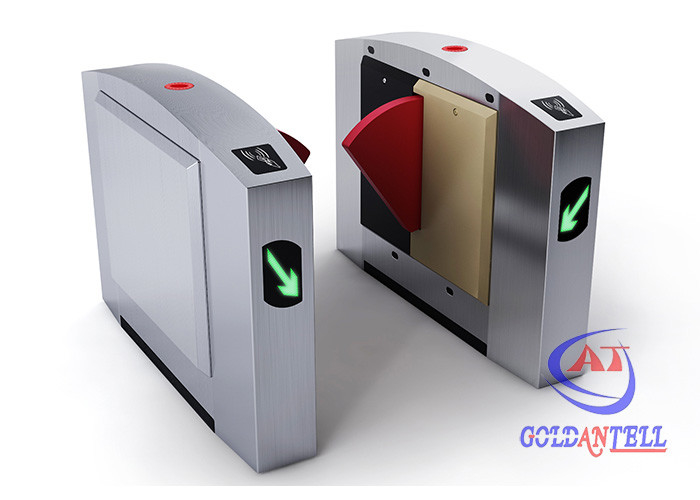

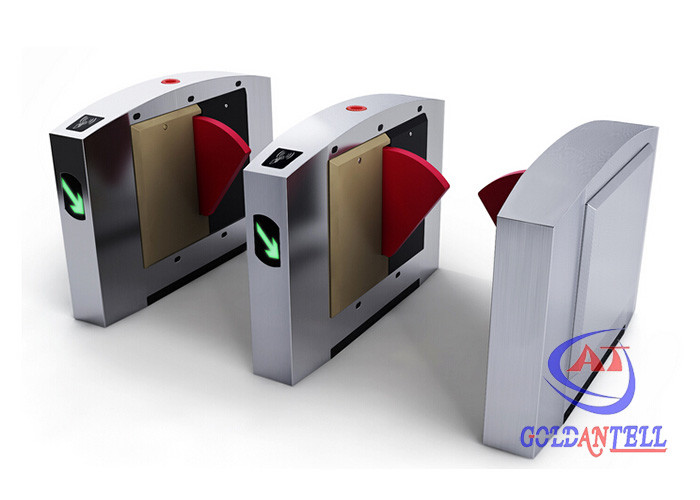

Flap Turnstile Real Photos
Projects Application
|
Entertainment Places |
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, |
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings. |
|
Business Organizations |
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |
Our Service
1. Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service: free warranty service. Also, we provide lifetime technical support online, by email, video, phone, etc.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
