4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate

  • 4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate
  • 4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-206 series
Document Different ESD Tester turnst...ll.pdf
Minimum Order Quantity 1pcs
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Single Core Or Dual Core Unit Working Environment Indoor / Outdoor ( Shelter),-10-70℃
Certification CE Size L1400*W300*H1000mm
Warranty One Year Power Supply AC100V-240V
Passing Speed 40 Person/min Material 304 Stainless Steel
Highlight

ESD Flap Barrier Gate

,

AC100V Flap Barrier Gate

,

ESD flap gate barrier
Leave a Message
Product Description

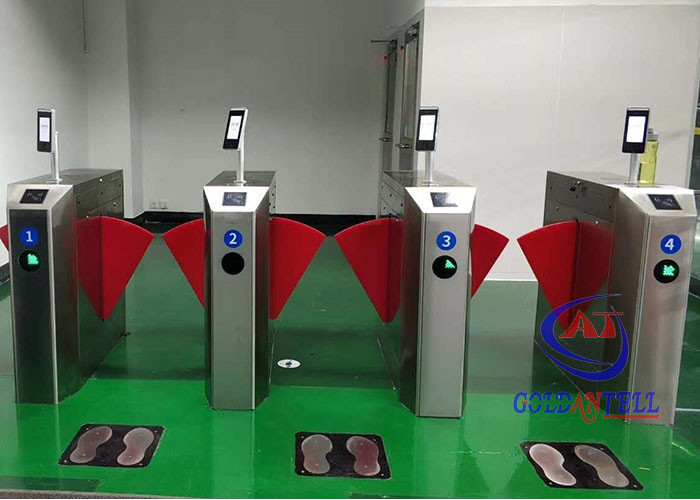

4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate
Metro Station 4 passage lane ESD Temperature Monitor Face detection flap barrier with telescopic flaps
Product Features
  • Special stretch wing design saves closing time, improves passage speed, prevents trailing, and increases security
  • Ideal for ticketing channels to prevent fare evasion
  • Standard external electrical interface compatible with various reading/writing devices for easy system integration
  • Widely used in airports, subway stations, railway stations, docks, scenic spots, parks, student dormitories, and pedestrian passages
  • Compatible with multiple access control systems including ESD tester, facial scanner, barcode scanner, coin acceptors, and buttons
Technical Specifications
Item Specification
Name Bridge type sharp flap turnstile
Size 1200/1400mm (L) * 300mm (W) * 1000mm (H)
Retractable arm length 285 mm (can be custom-made)
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm (or <900mm width, custom-made)
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24 V brush motor
Working environment Indoor/outdoor (with a tent over) -10℃～70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA
Relative humidity ≤90% coagulation free
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Security Features
  • Auto alarm when unauthorized person enters
  • Multiple working modes configurable via control panel menu
  • Arms open automatically during power failure
  • RS485 connection for remote control of arms
  • Standard electrical interface for easy integration with various readers/writers
Product System
4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate 0
Applications
Hotels, Factories, Banks, Prisons, Hospitals, Schools, Enterprise Entrance/Exit Attendance
4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate 1
Why Choose Us?
  • 13+ years specializing in turnstile systems
  • Custom OEM/ODM services available
  • Cost-optimized designs that eliminate unnecessary features
  • Guaranteed 3-minute response time to all inquiries
Package Information
Carton package inside with optional outer crate or closed wooden package
Frequently Asked Questions
Q: How long is your warranty period?
A: Standard one-year guarantee with lifetime technical support.
Q: How about the lead time?
A: Regular products: 7-10 working days; Customized products: 10-15 working days.
Q: What is the flap gate working environment?
A: Suitable for both indoor and outdoor use (with rain shed for outdoor installation).
Q: Can I customize it?
A: Yes, we specialize in OEM/ODM services with extensive experience serving government and commercial clients.
