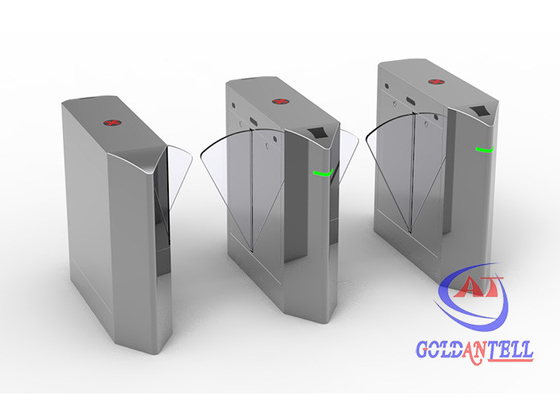

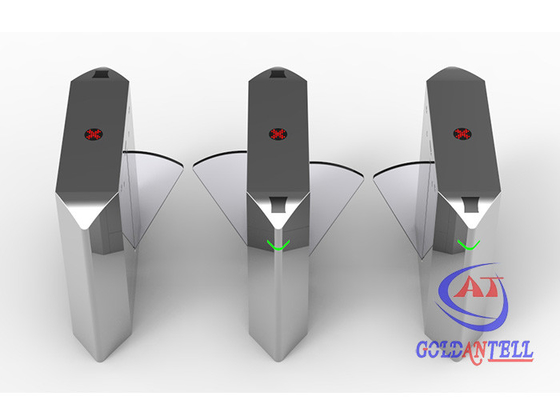

Acrylic Glass Dual Core 0.2 Second SS316 Flap Barrier Gate

Large Image : Acrylic Glass Dual Core 0.2 Second SS316 Flap Barrier Gate

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE certificate
Model Number:	GAT-201

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T ,western Union,LC,Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Power Supply:	110~240 V(AC)	Direction:	In Or Out, Or Two Ways
Warranty:	1 Year	Odm/oem:	Accepted
Passage Width:	600mm	Name:	SS316 Flap Barrier Gate
Highlight:	SS316 Flap Barrier Gate , 0.2 second Flap Barrier Gate , 0.2 second flap barrier turnstile

Acrylic Glass Dual Core 0.2 Second SS316 Flap Barrier Gate

Counter Automatic Acrylic Glass SS316 dual-core flap barrier 40person/Min pass Wing passageway

Product Description

1. Flap turnstyle door is an ideal managing and channeling device for high-frequency pedestrian access.

2. It has the characteristics of a fast opening, safety, and convenience.

3. widely used in airports, subway stations, and railway stations , docks, scenic spots, parks, student dormitories, pedestrian passages, etc.

4. Double protections of Mechanical and infrared anti-pinch function, providing more reliable and safer passing.
5. Higher flow rate and better anti-tailgate functions.

Technology Parameters

Size	1200mm (L) * 280mm (W) * 1000mm (H)
Working voltage	AC110/220±10%V , 50±10%HZ
Working movement	DC24V solenoid valve
Retractable arms length	285 mm
Support force of arm:	60kg
Passage width:	≤600 mm
Time of opening:	0.2 second
Pass speed:	30 persons/min
Emergence:	When power off, arm open automatically
Normal running life:	3 million
LED light:	direction arrow
Direction:	single or bi-directional (optional)
Working environment:	indoor/outdoor (with a tent over) -10℃~70℃
Relative humidity:	≤90% coagulation free
Communication interface:	standard RS485 interface, distance ≤1200m
Housing material	domestic standard 304# stainless steel
Input interface:	+12V level signal or pulse width>100ms 12V pulse, drive current>10mA

Feature & Function

1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent force passing without the card
7) Light and sound alarm indication function, preventing illegal entry or irregular passing.

Application Location

♦ Subway, Airports, Stations,

♦ Library,

♦ Parks,

♦ Exhibition halls

♦ Stadium

♦ Museums, Apartments

♦ Residence Area

♦ Movie theaters

♦ Fitness Gym.

♦ Factory

♦ Bank

♦ Hospital

♦ School

Application & Photos

FAQ

1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
5. How about your package?
Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.

Our Advantages & Service

1. Any email will be checked in 5 minutes, any inquiry will be replied to within 1 hour, and any solution will be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service: free warranty service. Also, we provide lifetime technical support online, by email, video, phone, etc.
