Card Dispenser 600mm Width Bar Code Flap Turnstile Gate

  • Card Dispenser 600mm Width Bar Code Flap Turnstile Gate
  • Card Dispenser 600mm Width Bar Code Flap Turnstile Gate
  • Card Dispenser 600mm Width Bar Code Flap Turnstile Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE certificate
Model Number GAT-NEW series
Minimum Order Quantity 1pc
Price negotiation
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply 110~240 V(AC) Direction In Or Out, Or Two Ways
Warranty 1 Year Odm/oem Accepted
Passage Width 600mm
Highlight

Bar Code Flap Turnstile Gate

,

Card Dispenser Flap Turnstile Gate

,

600mm Width Pedestrian Turnstile Gate
Leave a Message
Product Description

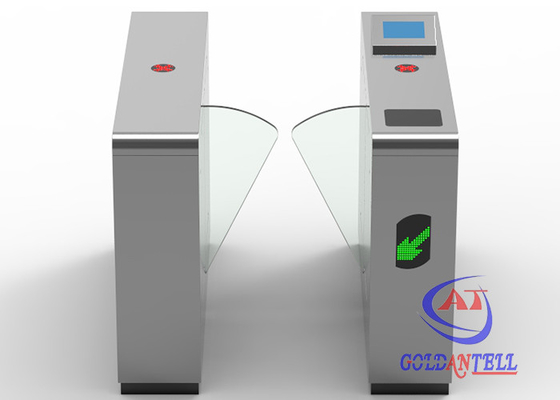

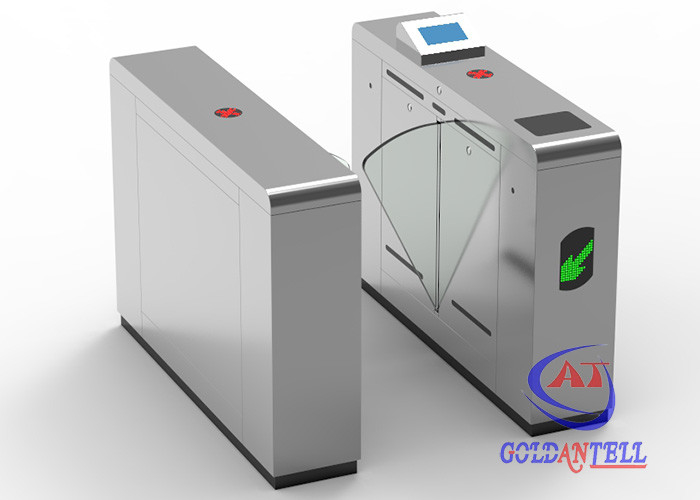

Card Dispenser 600mm Width Bar Code Flap Turnstile Gate
Full automatic bar code entrance counter door turnstile gate card dispenser for pedestrian control.
Product Description
  • Standard Functions: Rectangular box and brake lever to create a passage, providing orderly movement for people while preventing unauthorized access. Arms release in emergency situations.
  • Application Places: Widely used in stations, piers, subways, factories, office buildings, intelligent communities, hotels, clubs, and enterprises.
  • System Integration: Combines mechanical, electrical, and micro-controller technologies with various identification systems. Compatible with RFID cards and barcode readers for intelligent flow control and management.
Technology Parameters
Size 1400mm (L) * 300mm (W) * 1000mm (H)
Working voltage AC110/220±10%V, 50±10%HZ
Working movement DC24V solenoid valve
Arm width 510 mm
Support force of arm 60kg
Passage width ≤600 mm
Time of opening 0.2 second
Pass speed 30 persons/min
Emergency feature Arms open automatically when power fails
Normal running life 3 million cycles
LED light Direction arrow indicator
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with shelter) -10℃~70℃
Relative humidity ≤90% (non-condensing)
Communication interface Standard RS485 interface, distance ≤1200m
Housing material Domestic standard 304# stainless steel
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Features & Functions
  • Alarm Function: Automatically triggers alarm and locks arms when forced entry is attempted.
  • Configuration: Working conditions can be set via main control board buttons.
  • Auto-Lift-Arm: Arms automatically lift with alert when power is restored.
  • Auto-Drop-Arm: Arms automatically drop (default) or allow free passage during power failure.
  • Automatic Reset: Cancels passage authority if not used within adjustable time period (default 10s, adjustable 1-60s).
Application Locations
  • Public Places: Lobby entries, subways, airports, stations, libraries, bookstores, parks, exhibition halls, stadiums, museums, apartments, residential areas, offices, commercial buildings.
  • Entertainment Venues: Movie theaters, fitness centers, country clubs, fairgrounds, nightclubs, swimming pools, gyms.
  • Business Organizations: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrance/exit attendance systems.
Frequently Asked Questions
How long is the lead time?

For standard items:

  • 10-50 sets: 5 working days
  • 50-100 sets: 7-10 working days
  • 200-500 sets: 10-15 working days

For special items requiring custom design, packaging, or logo: Additional 3-10 working days.
