Face Detection IP54 0.6 Second ESD Entry Flap Barrier Gate

  • Face Detection IP54 0.6 Second ESD Entry Flap Barrier Gate
  • Face Detection IP54 0.6 Second ESD Entry Flap Barrier Gate
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-new
Document Manual Of Face Recognition ...em.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Health Projects,hotel,canteens, Hospitals, Office Buildings, Customs, Agencies, Tourist Attractions, Factories Identification Speed Face Detection And Tracking 20 Ms
Identification Height 1.2-2.2 M Wiegand Format 26/34
Size Of Product 1400*280*1000 Mm
Highlight

ESD Entry Flap Barrier Gate

,

0.6 Second Flap Barrier Gate

,

IP54 Flap Barrier Turnstile
Leave a Message
Product Description

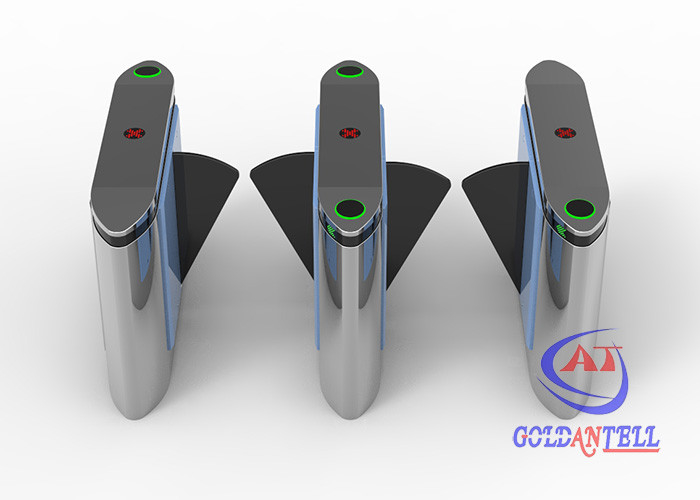

Face Detection IP54 0.6 Second ESD Entry Flap Barrier Gate
IP54 rated LED speed gates/turnstiles flap barriers with CE approval and ESD entry access control system.
Access Control System
  • Multiple access control options: fingerprint, face recognition, card reader, QR code, or barcode ticket system
  • Special function support: counter and coin/token acceptor
  • Integrated ESD tester system and function
Function & Features
  • LED gate direction indicator displays operational state (green arrow for entry free, red cross for passage locked)
  • Dual input signal operation (can be triggered by access controller, button or other equipment)
  • Audible sound prompts and information display function
  • Automatic flap opening during power interruption with N/C mode recovery after power restoration (optional)
OEM Services
  • Custom company color printing
  • Colorful LED light addition to wings
  • Double wing configuration available
Specifications
Size of housing 1200mm (L) * 300mm (W) * 1000mm (H)
Pass through width Standard 60cm (90cm available as custom option)
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Drive motor Standard DC 24V brush motor (brushless motor available as custom option)
Normal running life 3 million cycles
Opening/closing time 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with shelter) -10℃ to 70℃
Communication interface Standard RS 485 interface, distance ≤1200m
Input interface +12V level signal or pulse width >100 ms, 12V pulse, drive current >10 mA
Relative humidity ≤90% (non-condensing)
Housing material Domestic standard 304 # stainless steel
Working voltage AC220±10%V 50±10%HZ
Project Examples
  • Entertainment venues: Movie theaters, fitness halls, country clubs, fairgrounds, clubs, swimming halls, fitness gyms
  • Institutional facilities: Hotels, factories, banks, prisons, hospitals, schools, enterprise entrance/exit attendance systems
Face Detection IP54 0.6 Second ESD Entry Flap Barrier Gate 0
