Solenoid Locking 90 Degree Rotation Turnstile Mechanism

  • Solenoid Locking 90 Degree Rotation Turnstile Mechanism
  • Solenoid Locking 90 Degree Rotation Turnstile Mechanism
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS /IS9001
Model Number GAT-502
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 2,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Size 210(L)* 135(W)* 225(H)CM Material 316 / 304 Stainless Steel
Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Communication Port RS485 ,TCP/IP
Application Prison, Factory, Government Etc. Verification RFID, Fingerprint, Facial Optional
Direction One-way, Bi-direction Adjustable Passage Width 60-65cm
Opening Speed 25-30 Persons Per Min
Highlight

Solenoid turnstile entry systems

,

90 Degree full body turnstile
Leave a Message
Product Description

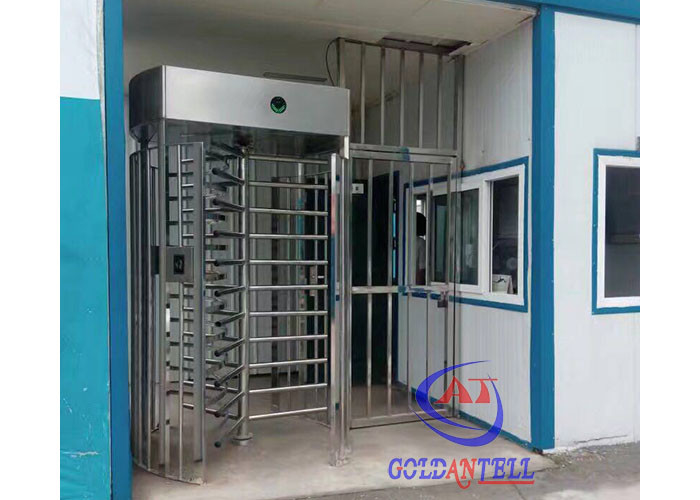

Solenoid Locking 90 Degree Rotation Turnstile Mechanism

90 degree rotation turnstile mechanism with solenoid locking channel for full height turnstile applications. The body is constructed from brushed stainless steel for a seamless, elegant design. Three arms can rotate in one or two directions via controlled drive mechanism. In emergency situations, the turnstile can be unlocked either manually or automatically.

This robust mechanism features an intelligent control unit for reliable operation, designed for intensive use with smooth performance. Its extensible functions allow integration with various access control systems including RFID, fingerprint, QR code, barcode, ticket systems, ESD testing, and facial recognition.

Functions & Features
Standard Features
  • Low noise operation with no mechanical impact
  • Single directional or bi-directional operation
  • High operation speed with quick response
  • Excellent design with high quality construction
  • Robust, rigid, anti-rust and durable materials
  • Smooth working system
  • Self-test function
Added Functions
  • Counting function available (counter)
  • Information display option (LCD display screen)
  • Audible sound prompt
  • Invalid entering alarm
  • Auto-lift-arm function (fully automatic type)
Custom Design: Standard Full Height Turnstile + Door
Solenoid Locking 90 Degree Rotation Turnstile Mechanism 0
Specifications
Power AC100-240V, 50/60HZ
Passage width 600 mm (can be custom-made)
Operating temperature -15°C to 75°C
Relative Humidity ≤95%, No Condensation
Communication Distance ≤1200m
Passing Speed 25-30 persons/min (IC Card/ID Card)
Motor 0.5NM/24V (Fully Automatic)
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard
Material SUS304 or Carbon Steel Powder Coating
Direction Single or bi-directional (optional)
Time of opening 1-2 seconds
Details Photos & Size Drawing

We offer different types of rotary arms:

  • Type: straight or "U" shape
  • Four arms or three arms (90°/120° rotation)

Our product includes a waterproof stainless steel box for installing biometric readers while providing protection. The left image shows an RFID card reader installation, while the right image demonstrates a fingerprint + card reader combination with high waterproof rating for outdoor use.

Solenoid Locking 90 Degree Rotation Turnstile Mechanism 1
Details Introduction
  • LED indicator light (optional)
  • Fingerprint reader (optional, other control methods include push button, coin-operation, and various access control systems)
  • The control board of full height turnstile
  • Material: standard 304 stainless steel (316 optional)
Solenoid Locking 90 Degree Rotation Turnstile Mechanism 2
