Stainless Steel Automatic Flap Barrier Turnstile High Speed Rfid With Fingerprint Readers

  • Stainless Steel Automatic Flap Barrier Turnstile High Speed Rfid With Fingerprint Readers
  • Stainless Steel Automatic Flap Barrier Turnstile High Speed Rfid With Fingerprint Readers
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS /IS9001
Model Number GAT-218 series
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V/110V,50/60Hz Type Single Core & Double Core
Working Environment Indoor / Outdoor ( Shelter) Communication Interface RS485/IP/TCP
Certification CE Material 304 Stainless Steel
Dimension L1200xW280xH1000mm Passage Width 600mm
Direction One Or Bi-direction(optional)
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

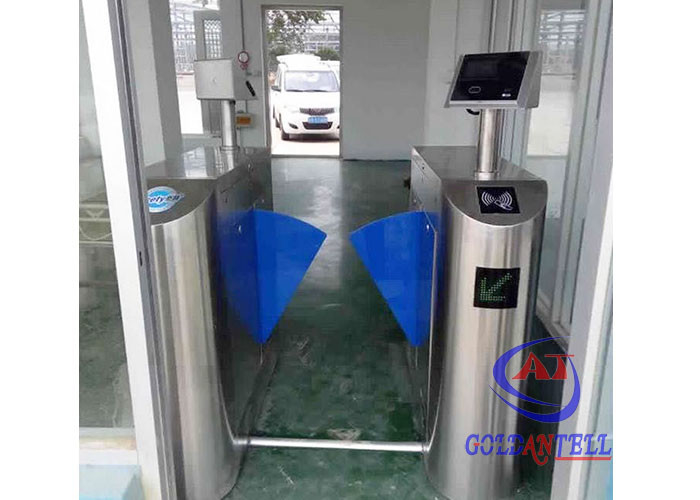

Stainless Steel Automatic Flap Barrier Turnstile High Speed RFID With Fingerprint Readers
Stainless Steel Automatic Flap Barrier / high speed gate RFID wristband barrier gate with fingerprint readers. Designed for pedestrian flow control at entrances of high-class communities, intelligent buildings, hotels, subway stations, and other high-level venues.
Key Features
  • Flaps reset to close position when power resumes
  • Flaps reset to lock position when access time expires
  • Prevents invalid, tailgate, and wrong direction access
  • LED array indication for access granted/denied
  • Compatible with diverse access control devices
  • Pedestrian flow directions can be single or double directions
  • RS485 socket available for computer connection
Technical Specifications
Power AC100-240V, 50/60HZ
Passage width 600 mm (customizable to 900mm)
Operating temperature -15°C to 75°C
Relative Humidity ≤95%, No Condensation
Communication Distance ≤1200m
Passing Speed 25-30 persons/min (IC Card/ID Card)
Motor 0.5NM/24V (Fully Automatic)
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection RS485 Communication Module Standard
Material SUS304 or Carbon Steel Powder Coating
Direction Single or bi-directional (optional)
Time of opening 1-2 seconds
Additional Options
  • LED indicator light (optional)
  • Fingerprint reader (optional)
  • Alternative control methods: push button, coin-operation, access control system like card reader
  • Material options: standard 304 stainless steel or 316 stainless steel
