Airport Access Control Entrance Barrier Systems Bar Code Scanner Mechanism IP54
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificate |
| Model Number | GAT-218 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | carton + crate or closed wooden case |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Transit Speed | 30~40 Persons / Min | Usage | Office,Hotel,Library,Metro Station,ect. |
|---|---|---|---|
| Product Name | Flap Barrier,Flap Type Turnstile | Material | 304 Stainless Steel, (or Custom 316) |
| Dimension | L1200xW280xH1000mm | Type | Single Core , Double Core |
| Passage Width | 600mm | Working Environment | Indoor / Outdoor ( Shelter),indoor |
| Warranty | 12 Months | Direction | One-way,bi-direction Adjustable |
| Highlight | Flap Barrier Turnstile,automatic flap barrier |
||
Product Description

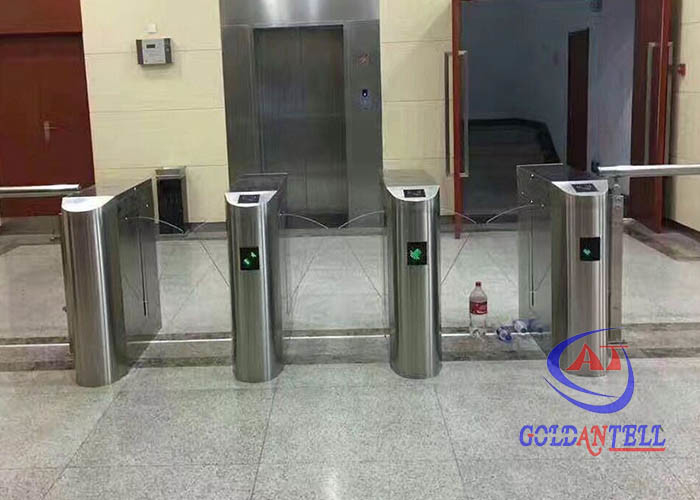

Airport Access Control Used entrance barrier systems bar code scanner Flap Barrier Gate Mechanism
Feature & Function
1. Elegant appearance: 304 stainless steel cabinet and the color of arms can be optional for several color.
2. Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3. Malfunction self-detection, which is easy for operation and maintenance.
4. Operational mode can be set up through the built-in menu on the control panel.
5. Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
6. Anti-collision function, the flaps will stay close if not receiving the open signal.
7. Flaps open on power failure. It can be integrated with a Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
8. Flaps reset to close position when power resume.
9. Flaps reset to lock position when access time expire.
Product Display
Access Width : within 600mm space, or customized 900mm
♦ Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
♦ Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
♦ Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
Technology parameter of Flap barrier
| Optimal flow rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Cabinet dimension | 1200(L)* 280(W)* 1000(H)MM |
| Open type | push button/ access control |
| Passing direction | single in/out or Bidirectional |
| Working temperature | -15°C +75°C |
| communication with computer | standard RS485, TCP/IP |
| Reset time after break down | default 10s,can be changed to fit different demands |
| Wing Material | stainless steel |
| Access Readers | rfid cards , fingerprint, Barcode ,ticket scanners |
| Input Connection | +12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms |
| More Optional function | coin controller, counter , sound alarm, speakers |
| Running Life | 3 Million(Continuous Opening and Closing Operation) |
| Protection Grade | IP54 |
Working Performance
1. Heavy duty, high Size prevents user from climbing over the gate to gain unauthorized access.
2. Anti-crash funtion. even if pedestrian forcefuly crash the swings gate, it can run smoothly well.
3. Auto close timer protection. Arms will auto close if there is no pedestrian pass through after the delay time elapsed. This prevent unauthorized user from sneaking into the building.
5. Emergency evacuation.During power failure, swing arms will automatically open and will automatically close back after power supply resumed. Of course,the swing arms can be automatically locked if power failure and only be open by access control ,to meet different demand of users.
6. Easy integration. Reader holder bracket is available for installing RFID wristband / token / cards reader underneath cover plate. bar code scanner or fingerprint reader can be installed in the bracket as well.
7. With function of self-examine and alarm, it is convenient for maintenance and use.
8. Being able to program running status by the small keyboard in the main board.
