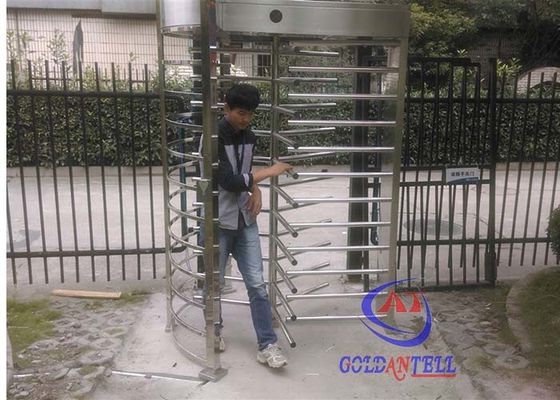

Brushed Stainless Steel Full Height Gate Qr Code Scanner Pedestrian Channel Management

Large Image : Brushed Stainless Steel Full Height Gate Qr Code Scanner Pedestrian Channel Management

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	Goldantell
Certification:	CE/ROHS /IS9001
Model Number:	GAT-502

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	negotiation
Packaging Details:	Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union, L/C, Paypal
Supply Ability:	2,000pcs per month

Contact Now

Detailed Product Description

Product Size:	150(L)* 135(W)* 225(H)CM	Application:	Prison, Factory, Government Etc.
Passage Width:	60cm (or Custom-made)	Direction:	One-way, Bi-direction Adjustable
Material:	316 / 304 Stainless Steel	Compatible:	RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Communication Port:	RS485 ,TCP/IP	Verification:	RFID, Fingerprint, Facial Optional
Opening Speed:	25-30 Persons Per Min
Highlight:	controlled access turnstiles , security turnstile gate

Brushed stainless steel qr code scanner pedestrian channel management rotating turnstile full height gate

Descriptions

The body is made from brushed stainless steel which creates a seamless and elegant design. 3 arms can rotate in one or two directions by controlled drive mechanism. in case of emergency turnstile can be unlocked either manually or automatically. Robust mechanism with intelligent control unit make it more reliable. It is intensive use with sooth operation. Its unique features with extensible functions allow it to integrate with various kinds of access control, including rfid / fingerprint/ qr code /barcode / ticket / ESD testing / facial recognition system.

Functions & features

>> Standard features
- Low noise, no mechanical impact
- Single directional or Bi-directional
- High operation with quick response
- Excellent design, with high quality
- Robust, rigid , anti-rust and durable
- Smoothly working system
- Self-test function
>> Added function
- Counting function available (counter)
- Information display option (LCD display screen)
- Audible sound prompt
- Invalid entering alarm
- Auto-lift-arm function (full automatically type)

More Specification

Power	AC100-240V,50/60HZ
Passage width	600 mm, can be custom-made
Operating temperature	-15°C--75°C
Relative Humidity	≤95%, No Condensation
Communication Distance	≤1200m
Passing Speed	25~30 persons/min(IC Card/ID Card...)
Motor	0.5NM/24V(Fully Automatic)
Input Connection	+12V Level Signal or Pulse Wide>100ms DC12V
Communication Connection	RS485 Communication Module Standard.
Material	SUS304 or Carbon Steel Powder Coating
Direction	single or bi-directional (optional)
Time of opening	1-2 second

Details Photos & Projects

Brushed Stainless Steel Full Height Gate Qr Code Scanner Pedestrian Channel Management 0
A. we can make different kinds of Rotary Arms. a. Type: straight or " U " shape; b. Four arms or three arms (90 / 120 degree)
B. we attach a waterproof stainless steel Box on our product, so can install biometrics readers inside, protect them as well.
please refer to above picture, the left is only RFID cards reader inside; right is Fingerprint + cards both (high waterproof for outdoor).

Details Introduction

1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin- operation, access control system like card reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
