IP54 Waterproof Pedestrian Security Entrance Barrier Gate With Automatic RFID LED Ditector

  • IP54 Waterproof Pedestrian Security Entrance Barrier Gate With Automatic RFID LED Ditector
  • IP54 Waterproof Pedestrian Security Entrance Barrier Gate With Automatic RFID LED Ditector
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-203
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Product Name 304 SUS Flap Turnstile
Size Of Product 1200*300*1000mm Application Indoor&outdoor
Communication Port RS485 ,TCP/IP Material 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

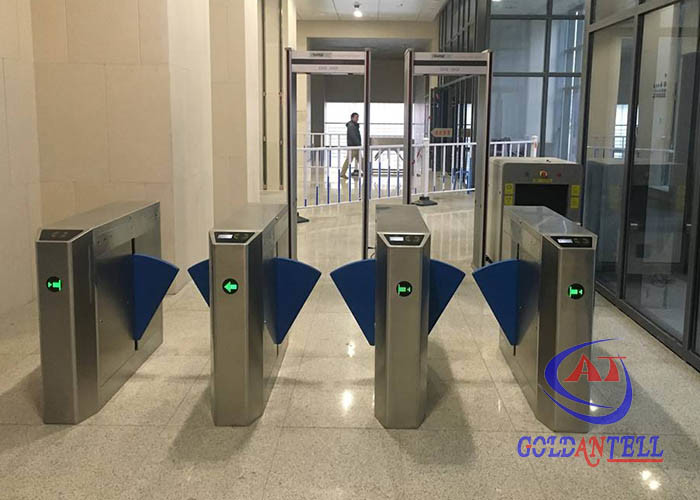

IP54 Waterproof Pedestrian Security Entrance Barrier Gate With Automatic RFID LED Detector
IP54 waterproof sliding factory pedestrian security entrance barrier gate with Automatic RFID LED Detector
Goldantell intelligent turnstile is a high-tech product which provides intelligent management for passageways. As an upgraded version of intelligent tripod turnstiles and swing barriers, this product features precision engineering, comprehensive functionality, and high-end suitability for premium neighborhoods, smart buildings, hotels, subway stations, ports, and clubs.
Specifications
Item Details
Name Bridge type sharp flap turnstile
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after breakdown 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with cover) -10℃～70℃
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms, 12V pulse, drive current>10mA
Relative humidity ≤90% (non-condensing)
Housing material 304 stainless steel
Working voltage AC220±10%V 50±10%HZ
Features & Functions
  • Automatically closes when detecting illegal entry, tailgating, or reverse direction attempts
  • Auto-locks before receiving open signal
  • Collision avoidance: arm opens when obstructed to protect internal mechanism
  • Automatic reset function (adjustable 1-60s timeout)
  • Optional infrared reset function (4 or 6 pairs)
  • Infrared induction clamp function (4 pairs)
  • Compatible with access control, biometric, ESD, and consumption systems
  • Bi-directional operation capability
  • Remote management via computer
  • Flashing light indicators for easy troubleshooting
Special Functions
  • LED counting display
  • Extendable housing and swing arm options
  • Advanced infrared logic (8 or 10 pairs optional)
  • Voice prompt function
  • Adjustable normally open/closed modes
  • Sound and light alarm indicators
  • Stroboscopic lamp for quick problem identification
Applications
Public Places Subway Stations Airports Train Stations Libraries Bookstores Parks Exhibition Halls Stadiums Museums Apartments Residential Areas Offices Commercial Buildings
Access Control System Options
  • Multiple authentication methods: fingerprint, facial recognition, card readers, QR/barcode systems
  • Special functions: counting, coin-operation
  • ESD tester system compatibility
