Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Usage: | Office,Hotel,Library,Metro Station,ect. |
|---|---|---|---|
| Direction: | One Or Bi-direction(optional) | Power Supply: | AC220V/110V |
| Size Of Product: | 1200*280*1000mm | Warranty: | 12 Months |
| Application: | Indoor&outdoor | Net Weight: | 65KG |
| Communication Port: | RS485 ,TCP/IP | Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Material: | 304 Stainless Steel/316 Stainless Steel | ||
| High Light: | Flap Barrier Turnstile,automatic flap barrier |
||

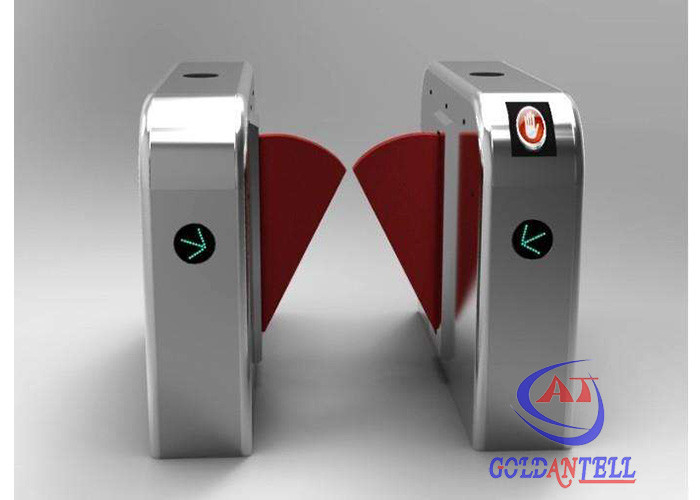

Servo brushless motor fast transit slide gate barrier turnstile retractable wings with Face recognition system
Function& features
1. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
2. Before received the open signal, the turnstile will lock automatically
3. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is 1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
5. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
6. Infrared induction clamp function (4 pairs Infrared).
7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by managing the computer.
10. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Specifications
| Item |
( single motor ); ( double motors ) |
| Size: |
1200/1400mm (L) * 280mm (W) * 1000mm (H) |
|
Drap arm length: |
250 mm (can be custom-made) |
| Pass speed:35 |
35 persons/min (open), 30 persons/min (closed) |
| Passage width: | ≤600mm |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
|
Time to work after power on: |
3 seconds |
|
Reset time after break down: |
10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
|
Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms |
| Relative humidity: | ≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Application
|
Entertainment Places |
Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, |
| Public Places | Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums,Apartments,Residence Area, Offices, Commercial buildings. |
|
Business Organizations |
Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance |
Access control system
1. we can offer the access control system: fingerprint/ face recognition/ card reader/ QR code/ barcode ticket system.
2. support special function: counter, coin- operation.
3. ESD tester system and function.
