900mm Wide Channel Entrance Barrier Gate Crowd Control Automatic Optical Dual Wings

  • 900mm Wide Channel Entrance Barrier Gate Crowd Control Automatic Optical Dual Wings
  • 900mm Wide Channel Entrance Barrier Gate Crowd Control Automatic Optical Dual Wings
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-206
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 SUS Flap Turnstile Size Of Product 1200*300*1000mm
Application Indoor&outdoor Communication Port RS485 ,TCP/IP
Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Material 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description

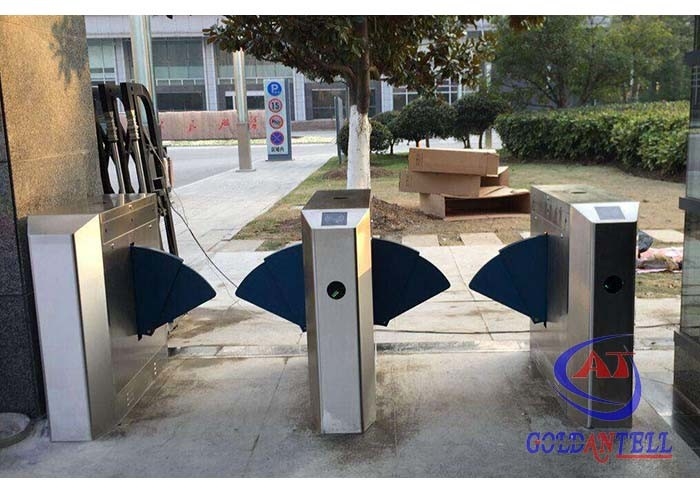

900mm Wide Channel Entrance Barrier Gate Crowd Control Automatic Optical Dual Wings
900mm wide channel waterproof outdoor crowd control automatic optical dual wings flap barrier

Goldantell intelligent turnstile is a high-tech product which provides intelligent management for passageways. As an upgraded version of intelligent tripod turnstiles and swing barriers, this product features precision engineering, comprehensive functionality, and high-end suitability for premium neighborhoods, smart buildings, hotels, subway stations, ports, clubs, and similar facilities.

Specifications
Item Details
Motor Configuration Single motor or double motors
Name Bridge type sharp flap turnstile
Size 1200mm (L) * 280mm (W) * 1000mm (H)
Retractable arm length 260mm
Pass speed 40 persons/min (open), 25-30 persons/min (closed)
Passage width ≤600mm
Normal running life 3 million cycles
Time of opening/closing 0.6 second
Time to work after power on 3 seconds
Reset time after break down 10 seconds
Direction Single or bi-directional (optional)
Drive motor DC 24V brush motor
Working environment Indoor/outdoor (with tent) -10℃～70℃
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms, 12V pulse, drive current>10mA
Relative humidity ≤90% (non-condensing)
Housing material Domestic standard 304# stainless steel
Working voltage AC220±10%V 50±10%HZ
Features & Functions
  • Automatic door closure for illegal entry, tailgating, or negative direction breaches
  • Automatic locking before receiving open signal
  • Collision avoidance function: arms open when obstructed to protect internal mechanism
  • Automatic reset function (adjustable 1-60s timeout)
  • Optional infrared reset function (4 or 6 pairs)
  • Infrared induction clamp function (4 pairs)
  • Compatibility with access control, biometric, and ESD systems
  • Bidirectional operation capability
  • Remote management via computer
  • Flashing light prompt for easy troubleshooting
Special Functions
  • LED counting display
  • Customizable box house and swing arm lengths
  • Advanced infrared logical judgment (8 or 10 pairs optional)
  • Voice prompt function
  • Adjustable normally open/closed modes
  • Sound and light alarm functions
  • Stroboscopic lamp for quick problem identification
Applications
Public Places Subway Stations Airports Train Stations Libraries Bookstores Parks Exhibition Halls Stadiums Museums Apartments Residential Areas Offices Commercial Buildings
900mm Wide Channel Entrance Barrier Gate Crowd Control Automatic Optical Dual Wings 0
Access Control System Integration
  • Compatible with fingerprint, face recognition, card reader, QR code, and barcode systems
  • Supports special functions: counter and coin-operation
  • ESD tester system integration
