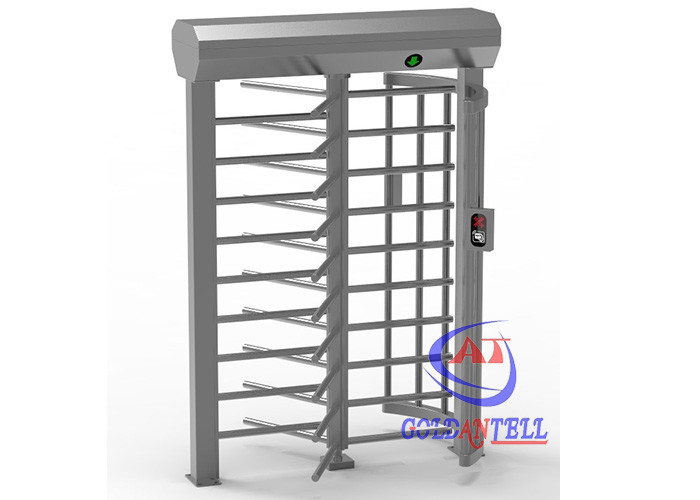

Bus station 1.5m wide fingerprint reader electronic turnstile full height roto gate
Descriptions
Goldantell full height turnstile is s a high tech product which mainly provides intelligent management to passageway.
1. Features: This full height turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Very comfortable space for passage.
2. Functions: Prevent illegal in and out.Arms off in emergency case. This product is finely processed with complete functions and high level.
3. Application: suitable for stadium,prison,office building, government, Confidentiality center,etc.,
4. System Integration: this equipment is subtly integrated with machine, electronics, micro- processor control and ID identification, provides convenience for the use of card reader identification equipment, such as IC card, ID card, bar code and fingerprint. It can carry out intelligent control and management to the passageway through choosing various identification equipment and adopting fair, reliable security protection, alarming equipment and direction indicating equipment...
5. Classified into two kinds: single-access;dual-access.
Feature & Function
1. Reasonable reliable design, low noise, smooth operation and long service life.
2. Standard switch signal input, convenient external switch or barcode, IC card, fingerprint and other access controller to control the roller gates action.
3. With multiple operating modes to choose from, you can bi-directional card reader or fingerprint-limiting; While reader or fingerprint, the forbidden line of the other direction; One side of the card reader or fingerprint, and the other direction of free passage.
4. Hydraulic shock absorbers can be freely adjusted the return of the Turnstile.
5. Anti-recoil, pedestrians from the opposite direction into the channel, immediately locked.
1. LED indicator light ( optional ).
2. Fingerprint reader (optional, other control ways: push button, coin-operation, access control system like card reader, fingerprint reader, etc.)
3. The control board of full height turnstile.
4. Material: standard 304 stainless steel (optional, 316).
Specifications
| Housing material |
domestic standard 304# stainless steel
|
| Size |
1500*1400*2250mm (MM)
|
| Working voltage |
AC220±10%V 50±10%HZ |
| Working movement |
DC24V solenoid valve |
| Roof Dimensions : |
Φ1500MM |
| Reset time after break down: |
10 seconds |
| Passage width: |
≤600 mm
|
| Time of opening: |
0.2 second |
| Pass speed: |
30 persons/min |
| Time to work after power on: |
3 seconds
|
| Normal running life: |
3 million |
| LED light: |
direction arrow |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -25℃ ～ 70℃
|
| Relative humidity: |
≤90% coagulation free |
| Communication interface: |
standard RS485 interface,
distance ≤1200m
|
| Input interface: |
+12V level signal or pulse width>100ms
12V pulse, drive current>10mA
|
Support Access Control System
1. rfid, nfc, reader, rfid coins,tap,etc.
2. fingerprint reader
3. qr code scanner
4. coin/ token acceptor
5. button
Real Picture
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
4. Friendly and professional customer service people help you in 16 hours.
