Half Height Portable Security Turnstile Gate Lock 304 SS With Rfid Coins Acceptor
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-218 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 304 SUS Flap Turnstile | Size Of Product | 1200*280*1000mm |
|---|---|---|---|
| Package Size | 1280*370*1070mm | Application | Indoor&outdoor |
| Communication Port | RS485 ,TCP/IP | Compatible | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button |
| Material | 304 Stainless Steel/316 Stainless Steel | ||
| Highlight | Flap Barrier Turnstile,automatic flap barrier |
||
Product Description

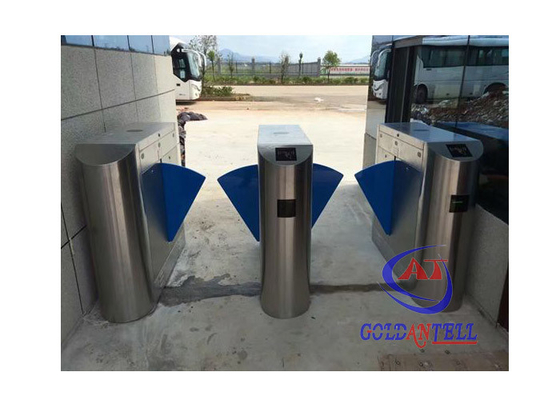

Half Height Portable Security Turnstile Gate Lock 304 SS With RFID Coins Acceptor
304 stainless steel half height portable security gate turnstile lock with RFID coins acceptor. Goldantell intelligent turnstile is a high-tech product providing intelligent management for passageways. It's an upgraded version of intelligent tripod turnstile and swing barrier, featuring fine processing, complete functions, and high-level suitability for premium neighborhoods, intelligent buildings, hotels, subway stations, ports, and clubs.
Specifications
| Item | (single motor) OR (double motors) |
|---|---|
| Name | Bridge type sharp flap turnstile |
| Size | 1200mm (L) * 280mm (W) * 1000mm (H) |
| Retractable arm length | 260 mm |
| Pass speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Normal running life | 3 million |
| Time of opening/closing | 0.6 second |
| Time to work after power on | 3 seconds |
| Reset time after break down | 10 seconds |
| Direction | single or bi-directional (optional) |
| Drive motor | DC 24 V brush motor |
| Working environment | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface | standard RS 485 interface, distance ≤1200m |
| Input interface | +12V level signal or pulse width>100 ms, 12V pulse, drive current>10 mA |
| Relative humidity | ≤90% coagulation free |
| Housing material | domestic standard 304 # stainless steel |
| Working voltage | AC220±10%V 50±10%HZ |
Function & Features
- Automatically closes when detecting illegal entry, tailgating, or negative direction break-in
- Automatically locks before receiving open signal
- Collision avoidance function: opens when obstructed to protect internal transmission
- Automatic reset function (adjustable 1-60s) meets fire protection requirements
- Optional infrared reset function (4 or 6 pairs infrared)
- Infrared induction clamp function (4 pairs infrared)
- Compatible with access control, consumption, biometric recognition, and ESD systems
- Bi-directional operation capability
- Remote management via computer
- Flashing light prompt for easy problem identification
Special Functions
- LED counting function
- Customizable box house and swing arm length
- Optional infrared logical judgment (8 or 10 pairs) with voice prompt
- Adjustable normally open/closed operation
- Sound and light alarm prompt functions
- Stroboscopic lamp for quick problem identification
Applications
| Entertainment Places | Public Places | Business Organizations |
|---|---|---|
| Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym | Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Residence Area, Offices, Commercial buildings | Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance |
Access Control System
- Compatible with fingerprint, face recognition, card reader, QR code, and barcode ticket systems
- Special functions: counter and coin-operation
- ESD tester system integration
Competitive Advantages
- 16-hour professional customer service support
- 10+ years ODM/OEM experience with custom design, logo, and packaging
- Complete product and system software management solutions
- Special repair service: video-based troubleshooting with free spare parts replacement within 1 year
Packaging
- One pair requires two packages
- With access control system: closed wooden box packing
- Without access control system: choice between crate and closed wooden box
