Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 SUS Flap Turnstile | Size Of Product: | 1200*280*1000mm |
|---|---|---|---|
| Application: | Face Recognition, Ticket Station, Office,etc. | Communication Port: | RS485 ,TCP/IP |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Material: | 304 Stainless Steel/316 Stainless Steel |
| Passage Width: | 600mm | ||
| High Light: | Flap Barrier Turnstile,automatic flap barrier |
||

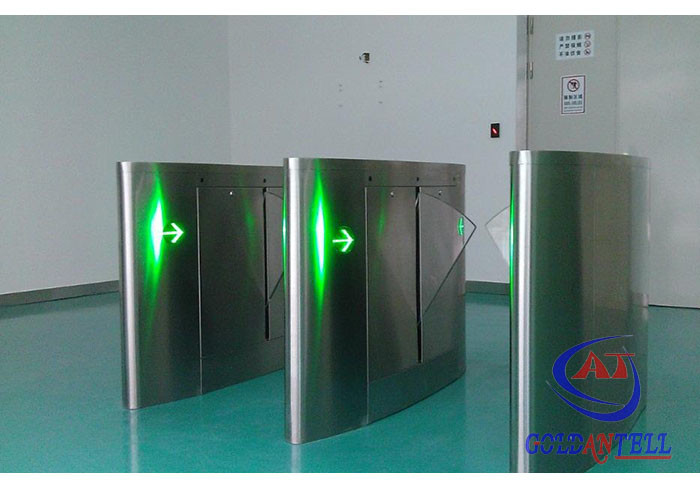

High performance rfid card reader security programmable turnstiles barrier gate motor for library system
Function& features
1. The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into negative direction gate.
2. Before received the open signal, the turnstile will lock automatically
3. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision, the arm will open to protect the Transmission of inner machine.
4. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time is
1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.
5. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).
6. Infrared induction clamp function (4 pairs Infrared).
7. The turnstile can work with door access control system/ consumption system /biometric recognition system/ ESD system and so on.
8. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).
9. Can manager and long-range control the turnstile directly by managing the computer.
10. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.
Specifications
| Type |
( single motor ), OR ( double motors ) |
| Size: |
1200mm (L) * 280mm (W) * 1000mm (H) |
|
Retractable arm length: |
260 mm |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | ≤600mm |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
|
Time to work after power on: |
3 seconds |
|
Reset time after break down: |
10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
|
Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms |
| Relative humidity: | ≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Project Example
a. Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,Fitness Gym.
b. Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance
Competitive Advantage
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
