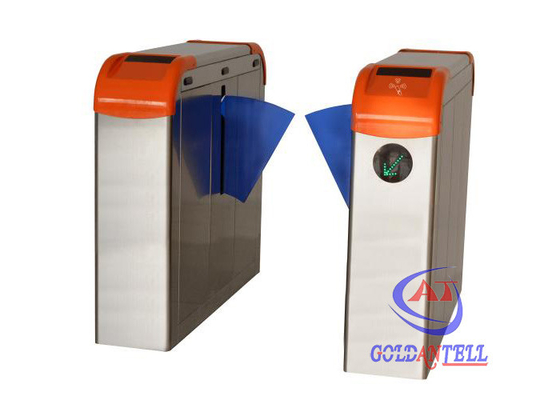

Electronic Acrylic Flap Barrier Gate 2 Ways Lanes Bidirectional Rfid Barrier On Indoor Events

  • Electronic Acrylic Flap Barrier Gate 2 Ways Lanes Bidirectional Rfid Barrier On Indoor Events
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-NEW
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7 working days after received your payment
Payment Terms T/T,western Union,LC,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 304 SUS Flap Turnstile Size Of Product 1200*280*1000mm
Package Size 1280*370*1070mm Application Indoor&outdoor
Net Weight 65KG Gross Weight 70KG
Communication Port RS485 ,TCP/IP Compatible RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Material 304 Stainless Steel/316 Stainless Steel
Highlight

Flap Barrier Turnstile

,

automatic flap barrier
Leave a Message
Product Description
Electronic Acrylic Flap Barrier Gate - 2 Way Lanes Bidirectional RFID Barrier for Indoor Events
Goldantell intelligent turnstile is a high-tech product providing intelligent management for passageways. As an upgraded version of traditional tripod turnstiles and swing barriers, it features sophisticated processing, complete functionality, and high-level performance suitable for premium neighborhoods, smart buildings, hotels, metro stations, ports, and clubs.
Technical Specifications
Item Specification
Model Single motor or double motors available
Product Name Bridge type sharp flap turnstile
Dimensions 1200/1400mm (L) * 280mm (W) * 1000mm (H)
Retractable Arm Length 260mm
Passage Speed 40 persons/min (open), 25-30 persons/min (closed)
Passage Width ≤600mm
Operational Lifespan 3 million cycles
Opening/Closing Time 0.6 seconds
Power On Delay 3 seconds
Reset Time After Failure 10 seconds
Direction Single or bi-directional (optional)
Drive Motor DC 24V brush motor
Operating Environment Indoor/outdoor (with cover) -10℃ to 70℃
Communication Interface RS 485 (distance ≤1200m)
Input Interface +12V level signal or pulse width >100ms
Housing Material 304 stainless steel
Power Supply AC220±10%V 50±10%HZ
Key Features
  • Automatic door closure for unauthorized entry, tailgating, or reverse direction attempts
  • Auto-locking mechanism when no open signal is received
  • Collision avoidance function protects internal mechanisms
  • Adjustable automatic reset function (1-60 seconds)
  • Optional infrared reset function (4 or 6 pairs)
  • Infrared induction clamp function (4 pairs)
  • Compatible with access control, biometric, and ESD systems
  • Bidirectional operation capability
  • Remote management via computer
  • Flashing light indicators for easy troubleshooting
Special Functions
  • LED counting display
  • Extendable housing and swing arm options
  • Advanced infrared logic (8 or 10 pairs optional)
  • Voice prompt system
  • Adjustable normally open/closed settings
  • Sound and light alarm indicators
  • Stroboscopic lamp for quick problem identification
Applications
Entertainment Venues Public Spaces Business Facilities
Movie theaters, Fitness clubs, Country clubs, Amusement parks, Nightclubs, Swimming pools, Gyms Subway stations, Airports, Train stations, Libraries, Bookstores, Parks, Exhibition halls, Stadiums, Museums, Apartments, Office buildings Hotels, Factories, Banks, Prisons, Hospitals, Schools, Corporate entrances
System Integration
This equipment integrates mechanical, electronic, microprocessor control and ID identification technologies. It supports various identification methods including IC cards, ID cards, barcodes and fingerprints, enabling intelligent passage control with reliable security protection, alarm systems and directional indicators.
Access Control Options
  • Multiple identification systems: fingerprint, facial recognition, card readers, QR/barcode tickets
  • Special functions: counting system, coin-operation capability
  • ESD tester system integration
Competitive Advantages
  • 16-hour professional customer support
  • 10+ years ODM/OEM experience with custom design capabilities
  • Complete system solutions including management software
  • Convenient repair service with video support and free spare parts replacement within warranty
Packaging Options
  • Two packages required per pair of barriers
  • Access control system included: sealed wooden box packaging
  • Without access control system: choice between crate or closed wooden box
