RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door

  • RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door
  • RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door
  • RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door
Place of Origin Guangdong,China
Brand Name Goldantell
Certification CE/ROHS/FCC/IS9001
Model Number GAT-custom
Document Full Catalog Of Full Height...te.pdf
Minimum Order Quantity 1pc
Price negotiation
Packaging Details Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time 7-9 working days after received your payment
Payment Terms T/T,Western Union,L/C,Paypal
Supply Ability 1,000pcs per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Prison, Factory, Government Etc. Size Of Product 3100*1400*2250mm (MM)
Material 304 Stainless Steel/316 Stainless Steel Type Single Access Full Height Turnstile
Net Weight 300KG Gross Weight 350KG
Compatible RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button Communication Port RS485 ,TCP/IP
Passage Width 600mm In Turnstyle
Highlight

controlled access turnstiles

,

security turnstile gate
Leave a Message
Product Description
RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1m Wide Magnetic Lock Bypass Door
Product Description

Goldantell full height turnstile is a high-tech access control solution providing intelligent management for passageways. Constructed with durable stainless steel, this single passage turnstile features a 1.1m wide magnetic lock bypass door for secure access control.

Key Features
  • Elegant, durable stainless steel construction resistant to rust and external damage
  • Spacious 1.1m passage width for comfortable access
  • Prevents unauthorized entry while allowing emergency egress
  • Advanced integration with machine, electronics, and microprocessor control
  • Compatible with multiple identification systems (IC card, ID card, barcode, fingerprint)
  • Available in single-access or dual-access configurations
Product Details
  • Optional LED indicator light
  • Optional fingerprint reader (alternative controls: push button, coin-operation, access control systems)
  • Advanced control board
  • Material: Standard 304 stainless steel (316 available as option)
Technical Specifications
Housing material Domestic standard 304# stainless steel
Size 3100*1400*2250mm
Working voltage AC220±10%V 50±10%HZ
Working movement DC24V solenoid valve
Roof dimensions Φ1500MM
Reset time after breakdown 10 seconds
Passage width ≤600 mm
Time of opening 0.2 second
Pass speed 30 persons/min
Normal running life 3 million cycles
LED light Direction arrow
Direction Single or bi-directional (optional)
Working environment Indoor/outdoor (with tent) -25℃ to 70℃
Relative humidity ≤90% (condensation free)
Communication interface Standard RS485 interface, distance ≤1200m
Input interface +12V level signal or pulse width>100ms 12V pulse, drive current>10mA
Product Images

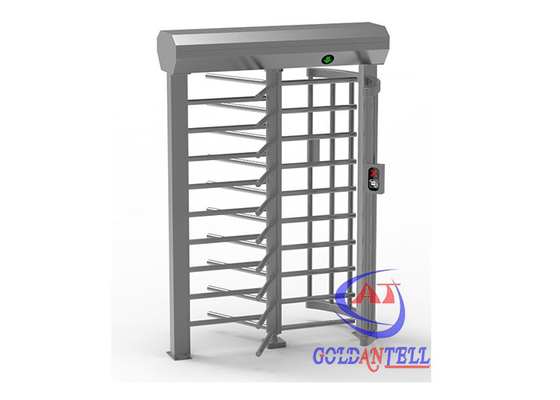

RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door 0
Layout Details

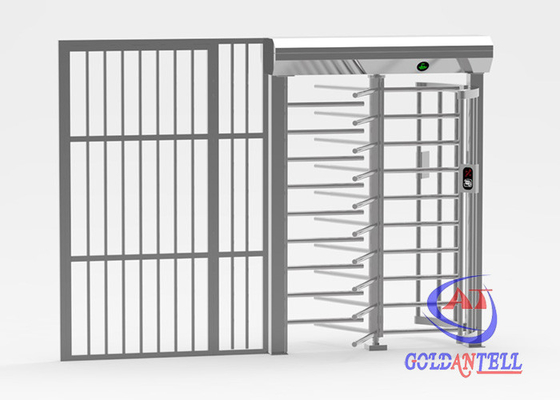

RFID / 2D Readers Full Body Turnstile Stainless Steel 1.1mts Wide Magnetic Lock Bypass Door 1
Packing Details
  • Crate package:
    • Double access turnstile: 4 pieces, ~9 m³
    • Single access turnstile: 3 pieces, ~7 m³
  • Closed wooden case packaging
Competitive Advantages
  • 10+ years ODM/OEM experience with custom design, logo, and packaging options
  • Complete solution including system software management to save time and costs
  • Special repair service: remote troubleshooting with video support and free spare parts replacement within 1 year
  • Professional customer service available 16 hours daily
