304 Stainless Steel Anti-static Wrist Band 0.43M Length ESD Tripod Turnstile With Foot Padel For Lab or Factory
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE , IS9001 |
| Model Number | GAT-306 |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Inside carton,outside exporter crate package or fully closed wooden pacakge |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T ,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Size Of Product | 430*330*1000mm | Material | 304 Stainless Steel |
|---|---|---|---|
| Usage Time | More Than 16 Years | Package | Bubble+crate |
| Net Weight | 48KG | Gross Weight | 55KG |
| Application | Indoor&outdoor | Transit Speed | 30 Persons Per Minute |
| Temperature | 10 Below Degree To 50 Degree | ||
| Highlight | turnstile security gates,stainless steel turnstiles,30 Persons Per Minute ESD Gate |
||
Product Description

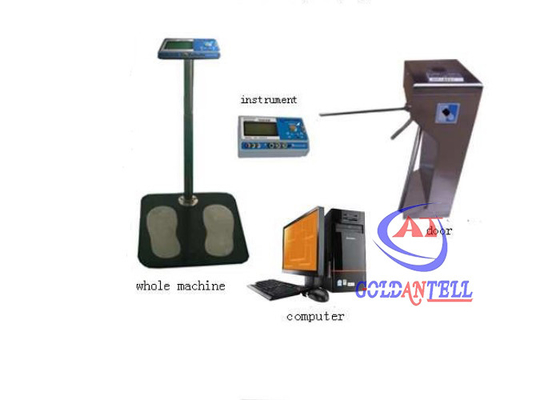

304 SS Anti-static Wrist Band 0.43M Length ESD Tripod Turnstile With Foot Padel For Lab or Factory
ESD Tripod Turnstile Technology Speciation:
- Framework: 304 Grade Stainless Steel
- Specification: 430*330*980mm
- Weight: 45kg
- Arms length: 510mm
- Logic voltage: 24v
- Emergency configuration: The tripod will drop automatically by power off or by hand to provide a clear walkway for escape in the event of an emergency
- Interface: one standard port-RS485
- Control panel with count and LED digital function
- Traffic-light: A Red Cross symbol will illuminate to indicate the unit is not available for pass, and a green arrow indicate the direction of allowable passing
- Transit speed: 20—30 persons per minute
- Work environment: Indoor/outdoor
- Temperature: -40℃ ～ 60℃
Parameters of ESD Checker_ Factory default Settings (stand-alone version) :
Wrist band: 750KΩ – 10MΩ, test range: 750KΩ – 10MΩ, accuracy ±10%.
Anti-static shoes: 750KΩ – 100MΩ, test range: 750KΩ – 100MΩ, accuracy ±10%.
ESD Tripod Turnstile Function:
- Single/double walkway---controlled in one direction or both
- A valid lock action can allow one passage at one time
- Normally open---the machine will unlock when a valid signal is received
- It will lock automatically if passage through turnstile is not completed within pre-set time, the set time can be adjusted via parameter change
Software of ESD Tripod Turnstile System Display:
Package of ESD Tripod Turnstile
Certificate of ESD Tripod Turnstile
