Shenzhen Goldantell Technology Co.,Limited
Quality is our culture!
|
Product Details:
Payment & Shipping Terms:
|
| Type: | Single Core Or Dual Core Unit | Working Environment: | Indoor / Outdoor ( Shelter),-10-70℃ |
|---|---|---|---|
| Certification: | CE | Size: | L1400*W300*H1000mm |
| Warranty: | One Year | Power Supply: | AC100V-240V |
| Passing Speed: | 40 Person/min | Material: | 304 Stainless Steel |
| Highlight: | ESD Flap Barrier Gate,AC100V Flap Barrier Gate,ESD flap gate barrier |
||

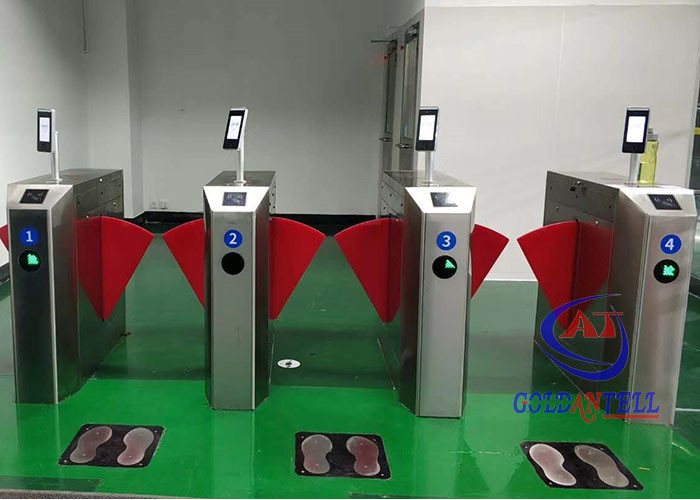

4 Passage Lane Temperature Face Detection ESD Flap Barrier Gate
Metro Station 4 passage lane ESD Temperature Monitor Face detection flap barrier with telescopic flaps
Product Brief
1) Special stretch wing design, save closing time, improve the passage speed, prevent trailing, increase the security level.
2) Especially suitable for ticketing channels, to avoid fare evasion behaviors.
3) Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
4) It has been widely used in airports, subway stations, and railway stations, docks, scenic spots, parks, student dormitories, pedestrian passages, etc.
5) Can be compatible with multiple access control systems covering ESD tester, facial scanner, barcode scanner, coin acceptors, button, etc.
Technical specification
| Item | ( single motor ), OR ( double motors ) |
| Name | Bridge type sharp flap turnstile |
| Technical parameters | |
| Size: | 1200/1400mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length: | 285 mm ( can be custom-made) |
| Pass speed: | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width: | ≤600mm ( or <900mm width, custom-made) |
| Normal running life: | 3 million |
| Time of opening/closing: | 0.6 second |
| Time to work after power on: | 3 seconds |
| Reset time after break down: | 10 seconds |
| Direction: | single or bi-directional (optional) |
| Drive motor: | DC 24 V brush motor |
| Working environment: | indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: | standard RS 485 interface, distance ≤1200m |
| Input interface: | +12V level signal or pulse width>100 ms 12V pulse, drive current>10 mA |
| Relative humidity: | ≤90% coagulation free |
| Housing material: | domestic standard 304 # stainless steel |
| Working voltage: | AC220±10%V 50±10%HZ |
Security Features
1. Flap barrier will auto alarm when some unauthorized person gets in.
2. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limit, or one direction card reading passing and another free passing, etc.
3. If power off, the arms will open automatically while power on late.
4. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
5. It is with a standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and management can be realized by a computer.
Product System
Onsite Application
Hotel,
Factory,
Bank,
Prison,
Hospital,
School,
Enterprise’s Entrance and Exit Attendance.
Why Choose Us?
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mold design, save your money!
4. We Timely Response to every customer! Response to customers no matter who did business with us or not in 3mins, and assist with project solutions later.
Package Info
1. Inside with a carton package.Then outside,there are 2 kinds of packages under your choice:
2. crate package and closed wooden package optional.
FAQ
Q: How long is your warranty period?
A: Standard One-year guarantee & lifetime technical support.
Q: How about the lead time?
A: Regular products need 7-10 working days; the customized products need 10-15 working days.
Q: What is the flap gate Working environment?
A: They can be used indoor and outdoor (added the rain shed)
Q. Can I customize it?
A: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
