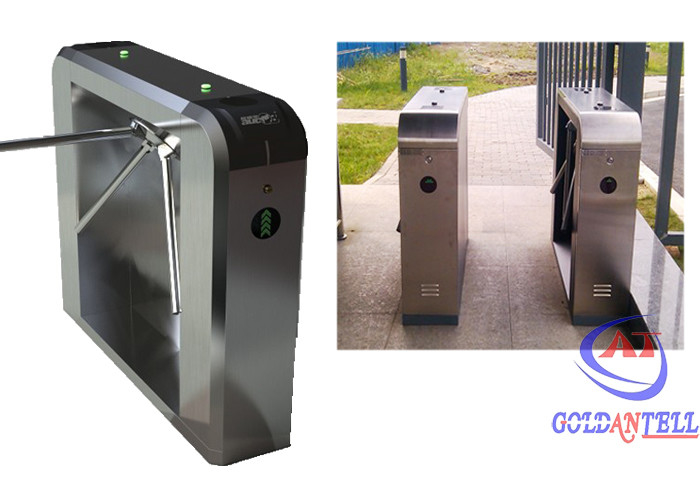

Automatic Rotate Turnstile Security Gates

Automatic rotate turnstile security gates for tourism , RFID Ticketing barcode System

Technical parameters

Housing material: domestic standard 304# stainless steel

Working voltage:AC220±10%V 50±10%HZ

Working movement :DC24V solenoid valve

Size:1200mm (L) * 280mm (W) * 980mm (H)

Arm width:530 mm

Passage width:≤600 mm

Direction: single or bi-directional (optional)

Normal running life: 3 million

Pass speed: 30 persons/min

Time of opening: 0.2 second

Emergence:When power off, arm open automatically

Communication interface: standard RS485 interface, distance ≤1200m

Input interface: +12V level signal or pulse width>100ms 12V pulse, drive current>10mA

System Integration

Integrate with ticketing system.

Integrate with visitor management system

Integrate with access control system required by customers, and built-in reader appointed by customer.

The Feature:

Made of 304 stainless steel,Goldantell tripod turnstile with nice and elegant shape,antirust,durable, Resistant to external damage.Rectangular box and brake lever to be a passage,provide orderly passage to people. Prevent illegal in and out.Arms off in emergency case.This item is widely used in station,pier,subway,factory,office building,intelligent community,hotel,clubs,enterprise,etc.

This equipment is intergrated with mechanism,electric and micro-controller and various kinds of identification technologies,compatible with IC,ID,barcode,fingerprint reader and so on ,to provide intelligent control and management to flow control.

 Goldantell tripod turnstile divided into 3 kinds:1)full automatic 2)semi-automatic 3)manual,and the semi-  automatic is the most widely used

1.Security

. Active arm can drop clear (emergency or application)

Arms cannot be removed without special tools

. Mechanism cannot be forced

2.Economic

. Inactive arms do not hinder the passage

. Simple to install

3.Flexibility

. Removable end covers for easy integration of any type of access control device

. Numerous configurations covering all cases of pedestrian access control

Application

Subway Station,

Hoverport,Tourism

Sports,Exhibition,

Swimming Hall,

Residence

Area,Enterprise’s Entrance and Exit Attendance,

Gateway Guard,

Charge Management,Special
