Product Details:
Payment & Shipping Terms:
|
Item: | GAT-ABS16 | Net Weight: | 8kg |
---|---|---|---|
Size: | 480*550*60mm | Desceded Height (mm): | 420mm |
Remote Controlled Distance: | ≤30 | Working Current (A): | 1.5A |
Time To Lie Flat From Standing: | 5-6 Sec | Gross Weight: | 8.5kg |
Work Time/Recharge: | 3 Months | Battery: | 12Volt 7.0Ah Sealed Lead-acid |
Highlight: | security road blocker,automatic road blocker |

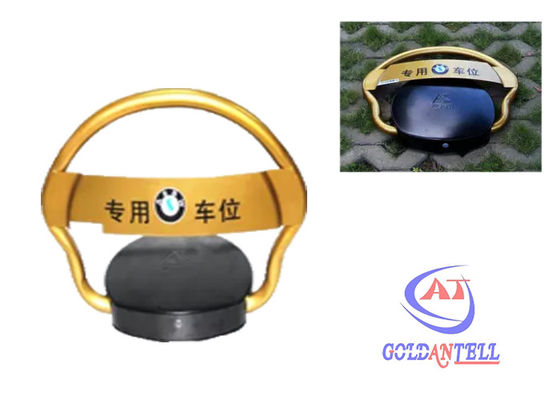

Anti Rust parking position lock with rechargeable barrier , lasting 4 months
Specificatios:
1 | Rise from down to up to protect the parking area is taken up by other cars; |
2 | Avoid car stolen to a certain extent; |
3 | Design with driving wheel to keep the device works steadily |
4 | With an anti-collision design |
5 | Stop and down the lock if something blocks the lock while locking |
6 | Electric motor with lowest noise; |
7 | Smart design with error check funtion |
8 | Stop automatically with buzz if something blocks the lock while unlocking |
Technical Data:
Battery Voltage |
12V 7AH |
Operational Current |
0.4A |
Rise up |
420mm |
Dimension Size |
480*550*60mm |
Up to Down Time |
4~6 Seconds |
Remote Control Distance |
30M |
Working Temperature |
-35~+55 degree centigrade |
Maximum Bearing Weight |
5 tons |
Protection Grade |
IP68 |
Time to stand up from flat |
5-6sec |
Weight |
8.5kg(N.W) 9.5kg(G.W) |
OME | custom logo size and package |
Functions:
1,Rise from down to up to protect the parking area is taken up by other cars;
2,Avoid car stolen to a certain extent;
3,Design with driving wheel to keep the device works steadily;
4,With an anti-collision design;
5,Smart design with error check funtion;
6,Stop and down the lock if something blocks the lock while locking;
7,Stop automatically with buzz if something blocks the lock while unlocking
Feature:
1. Easy to Use
Touch the remoter to lower your automatic parking lock to lay flat, then drive your vehicle into
parking space; When leaving, touch the remote, and your parking lock will automatically rise up
to prevent anyone else from using your parking space.
2. Easy to Install
Fix parking lock onto the ground by expansion bolts, that is enough.
3. Rechargeable Battery with Long Continuous Use
The parking lock is powered by rechargeable battery. After being charged, it will lasts for about 1000
uses,or about 4 months continuous use.the parking lock comes with a recharging power pack
4. Heavy Duty and Durable
The housing adopts high quality steel rolling which can bear Max. 5 ton weight. With spray plastic coating,
which is waterproof, rustproof and dust proof enough to last about 5 years in hard weather. The sway armmade of steel rolling won`t deform even it is crushed by a vehicle.
5. Anti-disconnecting for Power Safety
The power connection is anti-disconnecting design in case the use misplace the battery causing short circuit
6. Auto-repositioning
the external force could not change the sway arm position when it is vertical; when the sway arm is forced to a horizontal position, it will reposition vertically, unless the user uses remote control to put it horizontally.
7. Noise-free
The transmission design on motor makes almost zero noise, which is good for battery and motor longevity
and less friction, also goods for quiet environment.
8. Manual control in case of no power
In case the power is off, just manually control the parking lock in emergency.
9. Alarm Against a Low Battery
If the battery is low, the parking lock will alarm to remind the owner to recharge the battery.
Applications:
Parking lots in real estate, Hotel, Airport, Factory, Office Building, etc.
Packing List:
Name |
Quantity |
Parking barrier |
1 pcs |
Charger |
1 pcs |
Remote control |
2 pcs |
Tamperproof bolts 50mm |
4 pcs |
Battery |
1 pcs |
Installation and Operation Manual |
1 pcs |
