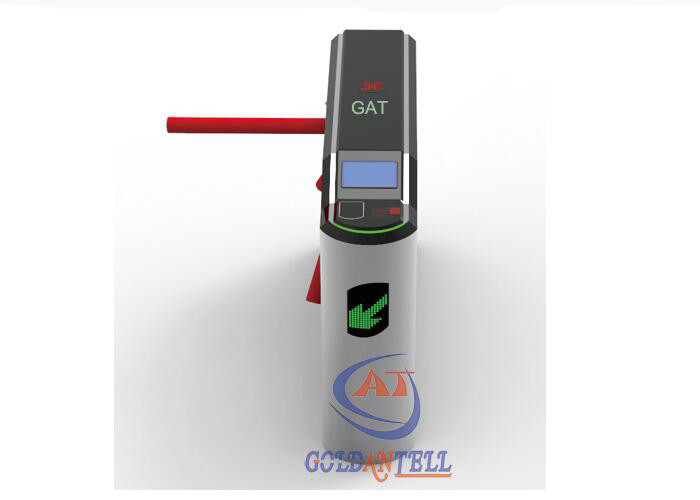

Prestige QR / Barcode Access Control Gate Bidirectional Intelligent IP62 Waterproof
Product Description

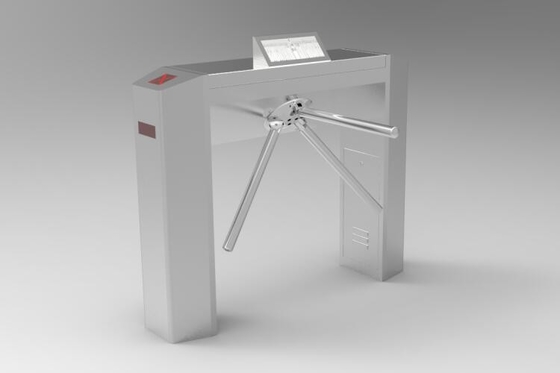

Tripod Turnstiles systems provide effective means for pedestrian flow control at entrances of production facilities, administrative buildings, company offices, schools, university campuses, stadiums, leisure and fitness facilities, amusement parks and zoos, shopping outlets.
Quick Technical Paramters
| No. |
Item |
Specification |
| 1 |
Model |
GAT-343 |
| 2 |
Type |
Auto |
| 3 |
Dimension: |
1200*280*990mm |
| 4 |
Power |
AC220C±10V,50HZ |
| 5 |
Operating Temperature |
-20°C-60°C |
| 6 |
Relative Humidity |
<95%, No Sensation |
| 7 |
Communication Distance |
≤1200m |
| 8 |
Passing Speed |
≤40 Persons/min |
| 9 |
Input Connection |
+12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma |
| 10 |
Communication Connection |
RS485 Communication |
| 11 |
Material |
SUS304 or Carbon Steel Powder Coating |
| 12 |
Protection class |
IP54 / IP62 |
| 13 |
Color |
SSB(US32D)- Stainless Steel Brushed / Powder Coating/Customized Color |
| 14 |
Application |
Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise’s Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control and so on |
| 15 |
Optional |
1.Counter and counter display
2.Access controller or card reader
3. Key by-pass
|
Features:
1.Incorporating advanced hydraulic kinetic buffering technology to ensure fast and smooth operation.
2.Equipped with standard input/output signal interface, can be integrated with all types of access control panel, offering complete entrance control solutions.
3.Equipped with LED directional indication / status lights.
4.Equipped with mechanical Fail-Safe mode. In the case of power failure, the Tripod arms can be triggered to drop automatically to ensure unblocked access.
5.The positive action lock also helps in preventing two passage at one time.
6.Anti-Illegal Entry with forced rotation feature which can withstand force of up to 80kg.
7.Unique tripod design ensures safe and reliable operation. Highly durable design ensures life span more than 5 million cycles.
8.When the turnstile arms have rotated for more than 60 degrees, the mechanical override will be activated automatically to prevent tailgating.
9.The emergency button which can ensure unblocked access is available.
1. Are you factory or trader?
We have our own factory in Shenzhen with independent department for purchasing, producing, testing, packing, storing and transportation, 12 years experience in security industry makes us one of the best suppliers in China.
Surely, OEM&ODM is available.
2. Do you sell the accessories for Products ?
Yes, we could provide all the accessories for our equipments, once you become our customer, you get our commitment of life-long service.
3. How about the package for product? Is it easy damaged during transportation?
For stainless steel turnstiles usually inside a carton then outside wooden case is required.
4. What's your main product?
We are professional in turnstiles, barrier gates, parking products. Today, we are more likely to provide systematic security solutions.
5. Where is your main sales market?
We have a high reputation in Chinese domestic market, and we have expanded quickly to every country of the world with our competitive quality and price.
6. What about the delivery time?
Waist high turnstile, barrier gates: 7-10 working days
Full height turnstile: 12 working days
If need install system,need need 1 working days.
7 . How about the after sales serivce?
All products from Goldantell with 2 years quality guarantee,our special serivce is:no need you send back the spare part if there's any quality problem,we will send the spare part to you by fastest express.98% suppliers in China could not do this
8 . Can I pay by paypal or credict card?
Yes,we accept above 2 payment ways when amount below 5000USD,if amount above 5000USD,TT,wetern Union and L/C are acceptable.
