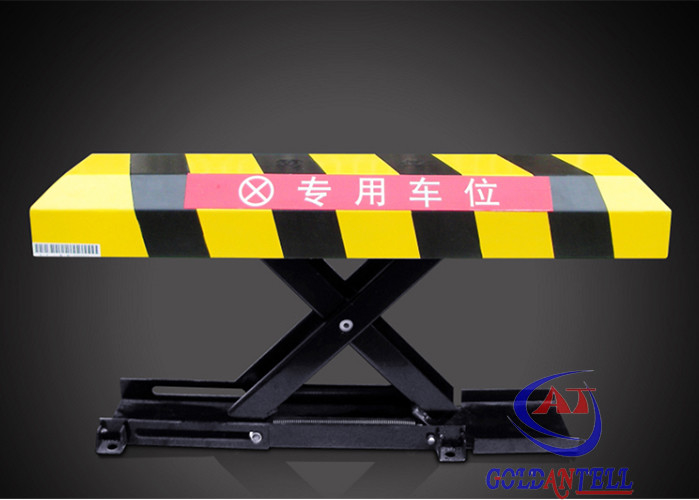

Manual And Automatic parking space locking device Protector 12 Volt Battery
Technical Data
Net weight: 11.5kg
Voltage of working motor: 12Volt DC
Battery: 12Volt 7.0Ah sealed lead-acid
Power Consumption (operation): 20W
Distance of remote control: ≥30m
Time to lie flat from standing: 5-6 sec
Dimensions (standing up): 640mm L x 165mm W x 305mm H
Dimensions (flat): 640mm L x 165mm W x 85mm H
Features
1 . Indicator light
With one indicator light in the front of the lid for show the state of operating:
a. The indicator will show a red light when the barrier is working normally.
b. The indicator will flash continually show the battery voltages is low. Pleases recharge in
time in order to extend battery's life.
2 . Crash resistance
If the barrier arm is forced down when in the upper position, the beeper will beep. When the barrier arm is released it will return to the upper position and running normally.
3 . Object sensing
The power will be cut off automatically when the parking barrier senses that excessive force is being exerted on barrier arm
4 . Energy saving
After one minute without use the barrier switches itself to the energy saving mode.
5 . Water-proof(IP54)
Processed for motor, main parts so that they have water-proof feature.
Brief introduction
Our parking lock with special restoration equipment for prevent from bumping and two controls, one charger, one storage battery ,smart appearance and precise decoration,waterproof and super-low designs
Pack List
1 x GAT-ABS6 unit
1 x Charger 220±10% volt
2 x Remote Controls
4 x Tamperproof bolts 50mm
2 x Keys for control box
1 x Installation and Operation Manual
Battery usage
1 . When the battery is fully charged, the expected use is 300 operations or approximate 3 months assuming 2 lifts and 2 downs per day.
2 . When the battery is low and dry, an audible alarm will sound to remind the owner to charge the battery. Open the control box with the key and take out of the battery, take home to re-charge. This must be plugged into 220/240 volt power. After 12 hours’ recharging, it’ll be ok.
3 . In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.
About our company
Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience
Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Project
FAQ
1 . How about the delivery detail?
1)When ship by sea,it normally takes 15-60 days depend on different countries.
2)We ship goods by UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to arrive;
3)We can also help you ship by air cargo ,it takes about 2-7 days to arrive ;
No matter what delivery way ,depending on your actual requirements.
2 . How about the customer service?
1)All items have 24 month quality guarantee.
2) Custom design shape and logo, for large amount, custom logo available for free.
3)Supported by professional engineers.
4)Special discount of our distributors or agents in their area.
5)Packing in standard export carton, suggest you pack it by wooden case to protect the products
6)CE, ROSH available.
