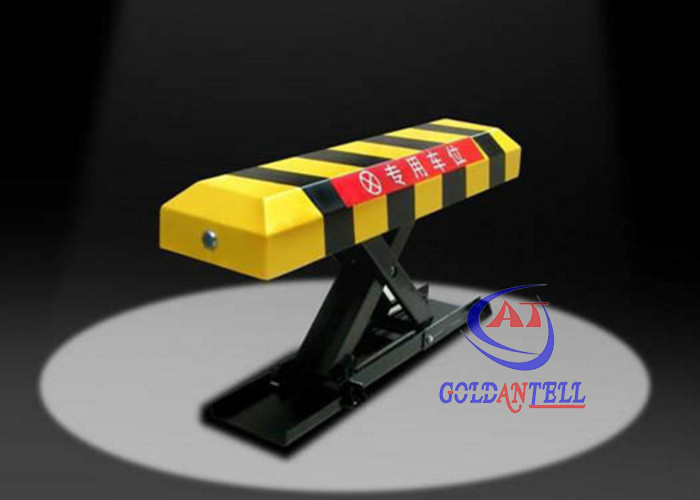

Automatic Battery Chargeable Car Parking Locks Mechanism A3 steel
Technical Data
1 . Net weight: 11.5kg
2 . Voltage of working motor: 12Volt DC
3 . Battery: 12Volt 7.0Ah sealed lead-acid
4 . Power Consumption (operation): 20W
5 . Distance of remote control: ≥30m
6 . Time to lie flat from standing: 5-6 sec
7 . Dimensions (standing up): 640mm L x 165mm W x 305mm H
8 . Dimensions (flat): 640mm L x 165mm W x 85mm H
Operation
1 . On the remote control, press the up square button to make the Parking Lock stand up. Press the bottom button to make it lie flat.
2 . When the battery is low on charge, an audible alarm will sound on the unit or it will not operate. Open the control box with the key and unplug the plug from the socket by pushing the release. After removing the flat battery, connect it to the re-charger (supplied). This must be plugged into 220/240 volt power. After 12 hours the battery will be fully re-charged ready for operation.
3 . When the battery is fully charged, the expected use is 300 operations or approx. 3 months assuming 2 lifts and 2 downs per day.
4 . In case of an emergency and the unit is standing up and will not operate, use the hex key (supplied, it’s a good idea to leave this key and key of the main box in your car), to open the main box and to undo the screw. The pin will then be released. Remove the pin and lay the whole unit down.
Brief introduction
Our parking lock with special restoration equipment for prevent from bumping and two controls, one charger, one storage battery ,smart appearance and precise decoration,waterproof and super-low designs
Pack List
1 x GAT-ABS6 unit
1 x Charger 220±10% volt
2 x Remote Controls
4 x Tamperproof bolts 50mm
2 x Keys for control box
1 x Installation and Operation Manual
About our company
Our Shenzhen Goldantell Technologies Co.,Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience
Our main products include intelligent turnstiles,parking barrier, RFID card,sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
Factory picture
FAQ
1 . How about the delivery detail?
1)When ship by sea,it normally takes 15-60 days depend on different countries.
2)We ship goods by UPS/DHL/FEDEX/TNT express which is door to door,it normally takes 3~ 5 days to arrive;
3)We can also help you ship by air cargo ,it takes about 2-7 days to arrive ;
No matter what delivery way ,depending on your actual requirements.
2 . How about the customer service?
1)All items have 24 month quality guarantee.
2) Custom design shape and logo, for large amount, custom logo available for free.
3)Supported by professional engineers.
4)Special discount of our distributors or agents in their area.
5)Packing in standard export carton, suggest you pack it by wooden case to protect the products
6)CE, ROSH available.
