Product Details:
Payment & Shipping Terms:
|
| Product Name: | Face Recognition Access Control Turnstile Gate | Type: | Three Arm / Rail Turnstile |
|---|---|---|---|
| Size Of Product: | 1200*200*1000mm | Package Size: | 1280*300*1070mm |
| Compatible: | RFID Reader&Fingerprint Reader ,Coin Acess,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button | Communication Port: | RS485 ,TCP/IP |
| Application: | Pulic Toilelt, Park, Office Building, Club, Etc. | Product Name: | 304 SUS Automatic Tripiod Turnstile |
| Material: | 304 Stainless Steel/316 Stainless Steel | ||
| High Light: | face recognition security system,face recognition door access system |
||
Security Integrating Tripod Turnstile Gate Face Recognition Access Control
Specifications:
| Item Number |
GAT-648 Full automatic Speed Turnstile |
| Technical Parameters | |
| Housing material |
domestic standard 304# stainless steel |
| Size |
1200mm (L) * 200mm (W) * 1000mm (H) or customized size |
| Package size | 1280mm (L) * 300mm (W) * 1070mm (H) |
| Gross weight | 75KG |
| Working voltage | AC220/110V±10%V 50±10%HZ |
| Working movement | DC24V solenoid valve |
| Arm width: | 510 mm |
| Support force of arm: | 60kg |
| Passage width: | ≤600 mm |
| Time of opening: | 0.2 second |
| Pass speed: | 30 persons/min |
| Emergence: |
When power off, arm open automatically |
| Normal running life: | 3 million |
| LED light: | direction arrow |
| Direction: | single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Relative humidity: | ≤90% coagulation free |
| Communication interface: |
standard RS485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100ms 12V pulse, drive current>10mA |
Application:
1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
Attendance.
3. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall,
Fitness Gym.
Description:

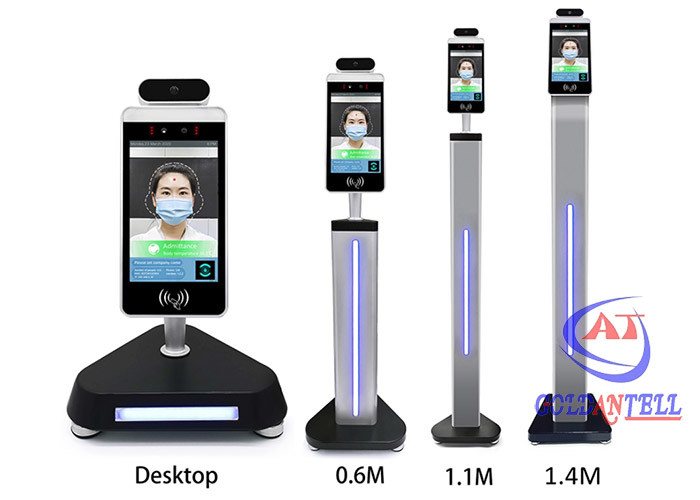

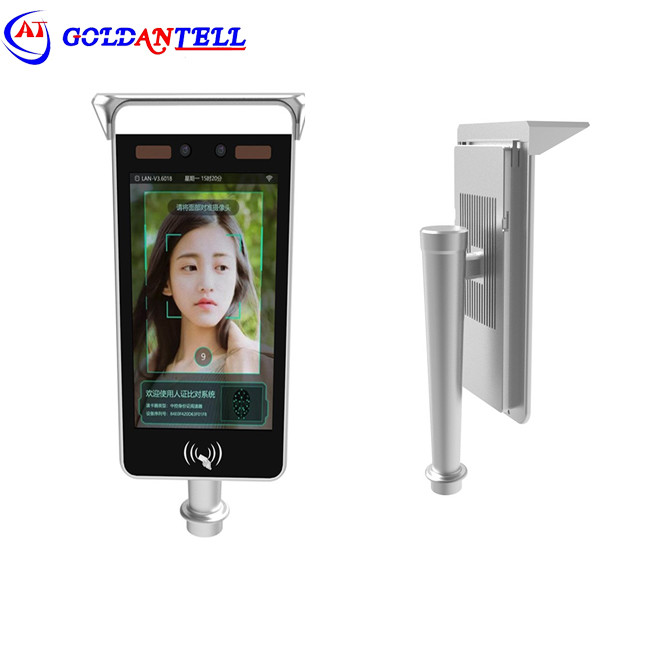

1. Both RFID card reader,face recognition and QR code scanner could be integrated for better user experiences.
2. Higher flow rate and better anti-tailgate functions.
3. Indicator and LED light can achieve real time displaying which improve the passing rate and convenient maintain.
4. Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s.
5. Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
6. Bi-directional or single way optional.
7. Gate auto-open when power is off to meet the fire protection requirements.
Appearance, Dimension, Material & Surface Finish
1. Appearance: customized according to customer’s requirement.
2. Material of the cabinet: 304 / 316 grade stainless steel.
3. Stainless steel thickness of the cabinet: customized within 1.2~2.0mm.
4. Surface finish of the cabinet: satin finish / polishing / anti- fingerprint/frosted finish / electroplating /
baking finish.
Goldantell Competitive Advantage:
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear
any fee.

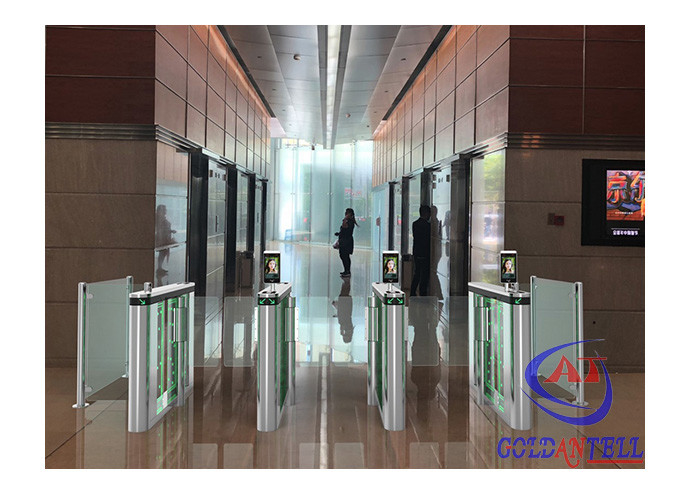

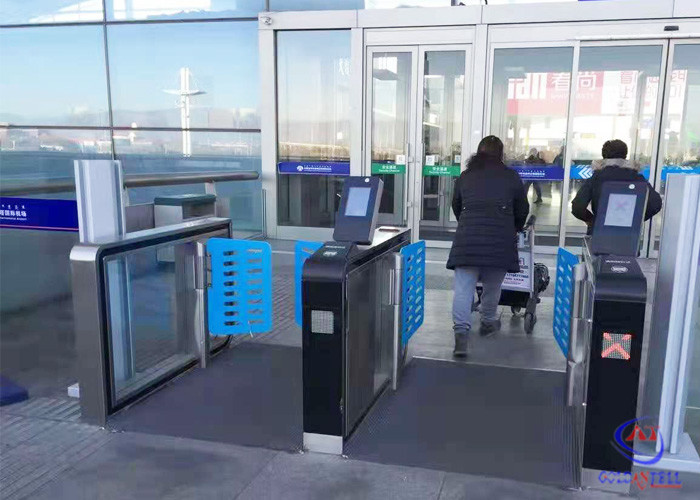

Face Recognition Access Control Turnstile Gate Picture:
