High Security Flap Barrier Gate Customized Led Light Changeable

China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
China SHENZHEN  GOLDANTELL TECHNOLOGY CO.,LIMITED certification
Goldantell is a Gold supplier, save me a lot of time to do the purchasing! And always giving professional suggestion, help me a lot in business!

—— Javier Torregrosa in Chile

Good quality products, competitive price and high quality services. Worthy trust and recommending business partner.

—— Michael Fusco in USA

Hi,Charlene,we've received the cargo!Our engineer tested the barriers,they all working very well!Now,I wanna make a new order!

—— Timmothy Mussared in Australia

I'm Online Chat Now

High Security Flap Barrier Gate Customized Led Light Changeable

High Security Flap Barrier Gate Customized Led Light Changeable
High Security Flap Barrier Gate Customized Led Light Changeable High Security Flap Barrier Gate Customized Led Light Changeable High Security Flap Barrier Gate Customized Led Light Changeable

Large Image :  High Security Flap Barrier Gate Customized Led Light Changeable

Product Details:
Place of Origin: Guangdong,China
Brand Name: Goldantell
Certification: CE/ROHS/FCC/IS9001
Model Number: GAT-206
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with export wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T ,western Union,LC,Paypal, L/C
Supply Ability: 2,000pcs per month
Detailed Product Description
Product Name: High Security Flap Barrier Gate Size Of Product: 1200*280*980mm
Package Size: 1280*370*1070mm Net Weight: 65KG
Gross Weight: 70KG Communication Port: RS485 ,TCP/IP
Application: Indoor&outdoor Compatible: RFID Reader&Fingerprint Reader ,Coin Access,QR Code Reader,Bar Code System,ESD Tester Access Control, Remote Button
Product Name: 304 SUS Flap Turnstile Indicate: Led Light
High Light:

Flap Barrier Turnstile

,

automatic flap barrier



High Security Flap Barrier Gate Customized Led Light Changeable



High Security Flap Barrier Gate Specifications

Item




GAT-206-1( single motor )
GAT-206-2( double motors )

Name




Bridge type sharp arc flap turnstile
Item

Technical parameters


Working voltage:


AC220±10%V 50±10%HZ

Size:


1200/1400mm (L) * 300mm (W) * 1000mm (H)

Retractable arm length:


260 mm

Pass speed:


40 persons/min (open), 25-30 persons/min (closed)

Passage width:


≤600mm

Normal running life:


3 million

Time of opening/closing:


0.6 second

Time to work after power on:


3 seconds

Reset time after break down:


10 seconds

Direction:


single or bi-directional (optional)

Drive motor:


DC 24 V brush motor
Working environment: indoor/outdoor (with a tent over)
-10℃~70℃
Communication interface: standard RS 485 interface,
distance ≤1200m
Input interface: +12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA
Relative humidity: ≤90% coagulation free
Housing material: domestic standard 304# stainless steel



High Security Flap Barrier Application:

1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
    Museums,Apartments,Residence Area, Offices,Commercial buildings.

2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,
    Fitness Gym.

3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit
    Attendance.


High Security Flap Barrier Function & features:

1 . Alarm function: when arms are pushed by force illegally, alarm will be triggered automatically and

arm will be set locked. turnstile can check by itself when it is have problem, it is good for customer to

maintain and use.

2. Turnstile can setting the working condition by press the button of main control board.

3. Anti- pinch function: turnstile have Mechanical/ infrared induction Anti- pinch functions( when it is meet

  the hinder during the reset time, the electrical machine closed work automatically in specified time, the

turnstile will default the delayed and reset again till reset succeed)

4 . The turnstile will closed the door when somebody enter the gate illegal, Tailgating or break into

negative direction gate.

5. Before received the open signal, the turnstile will lock automatically.

6. The arm have the collision avoidance function: when the turnstile arm closed, if it is under the collision,
the arm will open to protect the Transmission of inner machine.

7. Automatic Reset Functions: after you swap the card, during the specific time (the system is 10s), if you

didn’t pass the turnstile, the system will cancel your authority automatically to pass the gate, (reset time

is1~60s you can adjust it what time is suit for you). totally meet the fire protection needs.

8. Infrared reset function (Optional:4 pairs or 6 pairs Infrared).

9. Infrared induction clamp function (4 pairs Infrared).

10. The turnstile can work with door access control system/ consumption system /biometric recognition

system/ ESD system and so on.

11. The turnstile is bidirectional (pedestrian can enter and exit from one pair of turnstiles).

12. Can manager and long-range control the turnstile directly by managing the computer.

13. Flashing light prompt function: it is convenient to find the turnstile problem by administrative staff.

14. Classified into two kinds: single motor (suitable for single passageway and multiple passageway.);

Double motors (suitable for multiple passageways).


High Security Flap Barrier Gate Size Design Image:

High Security Flap Barrier Gate Customized Led Light Changeable 0



Advantages

  • Matt finished housing surface, dustproof and rainproof design for outdoor use.
  • Highly integrated solenoid mechanism, 100% heavy duty operation.
  • Drop arm when power off, for emergency use.
  • Compatible with other access control system.
  • Convenient installation and maintenance.



High Security Flap Barrier Gate Application Areas

  • Government
  • Banking
  • Education
  • Office building
  • Gym/Stadium
  • Factory
  • Hotel
  • Stadium

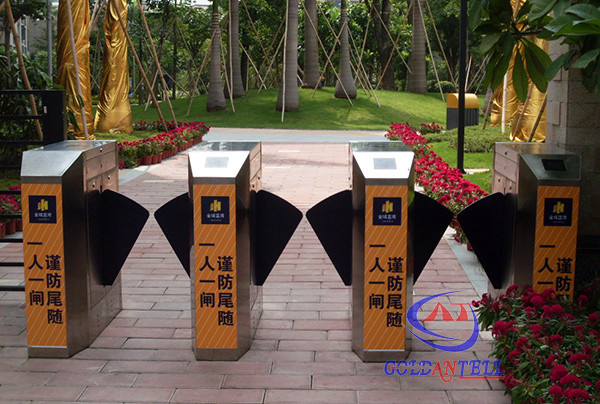

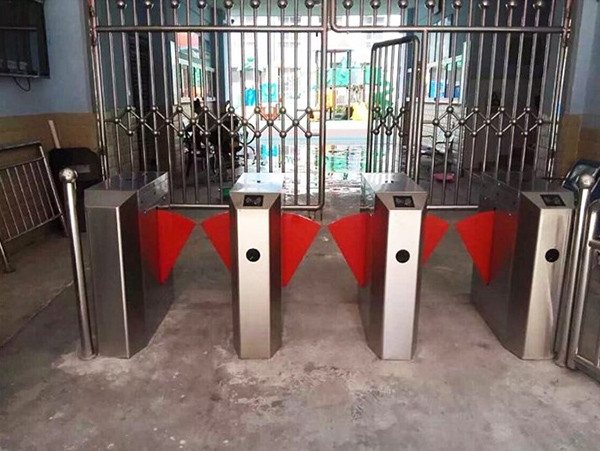

Application picture:

High Security Flap Barrier Gate Customized Led Light Changeable 1

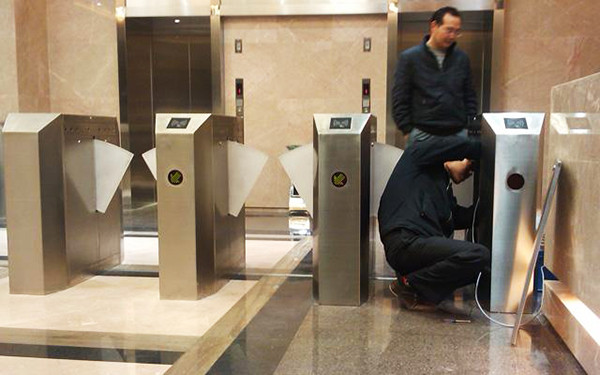

Flap Turnstile With Acess Control System

High Security Flap Barrier Gate Customized Led Light Changeable 2
