infrared automatically turnstile mechanism barcode access swing hidden gate barrier for student access
Product Details
| Size Of Product | 1.5*1.5*2.4 Meter | Material | Channel Steel |
|---|---|---|---|
| Lifetime | More Than 15 Years | Package | Bubble+crate |
| Net Weight | 400KG | Gross Weight | 420KG |
| Application | Indoor&outdoor Parking Lot,sentry Box | Product Name | Stainless Steel Composite Board Art Sentry Box |
| Size | 1.5*1.5*2.4 Meter | Cabinet Dimension | 1200 (L) X 280 (W) X 1000 (H) Mm |
| Cabinet Material | 304 Stainless Steel | Switching Power Supply | AC220±10%V 50Hz Or AC110±10%V 60Hz |
| Flap Opening/closing Time | 0.6-0.8s | ||
| Highlight | turnstile security gates,stainless steel turnstiles |
||
Product Description

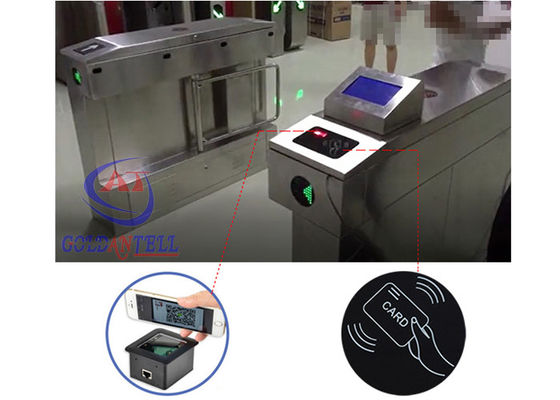

Infrared Automatic Turnstile Mechanism with Barcode Reader
Swing hidden gate barrier designed for secure student access control with advanced infrared technology and barcode integration.
Working Performance Features
- Self-diagnostic and alarm functions for easy maintenance and operation
- Programmable running status via main board keyboard interface
- Auto-close timer protection prevents unauthorized entry by automatically closing flaps after delay period
- Emergency evacuation mode - flaps automatically open during power failure and close when power resumes
- Easy integration with RFID readers, barcode scanners, or fingerprint readers via available mounting brackets
Product Specifications
| Item Model | GAT-603 |
|---|---|
| Cabinet Dimension | 1200 (L) x 280 (W) x 1000 (H) mm |
| Cabinet Material | 304 Stainless Steel |
| Switching Power Supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| Flap Opening/Closing Time | 0.6-0.8s |
| Stretching-out Flap Length | 285 mm for single wing; extendable for disabled access |
| Access Mode | Single in/out or Bidirectional |
| Optimal Flow Rate | 40 persons/min (open), 25-30 persons/min (closed) |
| Reset Time After Break Down | Default 10s, customizable to fit different requirements |
LCD Display Screen
Internal Components
- Control Board: Movement mechanism and IR sensor system
- Construction Material: Standard SUS 304 stainless steel, 1.5mm thickness, waterproof with strong performance
- Swing Pole: 304 stainless steel construction with adjustable swing arm length from 350 to 900 mm
Barcode System Integration Testing
Demonstration of barcode reader integration and testing process for secure access control.
Application Sites
- Public Places: Lobby entry, Subway, Airports, Stations, Library, Bookstores, Parks, Exhibition halls, Stadium, Museums, Apartments, Residence Area, Offices, Commercial buildings
- Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall, Fitness Gym
- Business Organizations: Hotel, Factory, Bank, Prison, Hospital, School, Enterprise's Entrance and Exit Attendance
Packaging & Shipping
| Package Details | Inner package - bubble bags Outer package - whole crate package advised; or wooden case package |
|---|---|
| Shipment Terms |
• <10pc: ships in 7 working days • >50pc: ships in 10-15 working days • Customized products: ships in 7-12 working days based on specific requirements |
