Waterproof IP54 Remote Control RFID Road Barrier Gate with 3-6M
Arm Length
Introduction of Entrance Boom Barrier
This is a trouble free solution for shipping and storage!
When a normal barrier gate is equipped with such a flexible arm, the packing length could be reduced to
within 3 meters which is acceptable for both sea and air shipment. And it will be much easier for you to find
a small truck to forward the goods to other places. Meanwhile, it's very convenient to adjust the length on
site:
1 - loose the hex nuts backside;
2 - pull out the inner pipe slowly to proper length;
3 - tighten the hex nuts to fix the length;
4 - done!
Specifications
Turbine motor, power AC220/50Hz/80w.
Professional control board with interfaces of red / green lights, photoelectric beam detecter, pressure
wave and 485/422.
Outer case in cold-rolled steel sheet thickness 2.0m.
Surface treatment: phosphating, pickling and car spraying process.
The surface is UV stable and the color could last for 3-5 years.
Aluminium alloy straight arm length: 3- 6 meters.
The direction of the arm could be set at manufacturer's side.
Rail up or down time: 4s-6s.
Remote control / manual control.
Include 2 remote controllers and 1 key switch.
Top cover in arc shape.
Overal size (exclude the arm): 290*340*1010 mm (L/W/H).
Cover and door panel locks are different.
Net weight: 55 kgs. Gross weight: 60 kgs.
Certificate: 3C.
Color available in red, orange, yellow, etc.
|
Arm Type
|
Crash proof straight Arm
|
|
Arm material
|
aluminum alloy + poly foam
|
|
Arm length
|
3-6 m
|
|
Rail up or down time
|
3 seconds
|
|
Motor power
|
AC220/50Hz
|
|
Frequency
|
50~60Hz
|
|
Protection class
|
IP65
|
|
Operating temperature
|
-40 to 65C
|
|
Operating humidity
|
≤ 90% non-condensing
|
|
Dimensions
|
290*340*1010 mm
|
|
Material
|
1.8mm cold-rolled steel plate with water-proof and rust-proof coating
|
|
Communication Interface
|
Standard RS485/422
|
|
Communication Range
|
800-1200m
|
|
Functions
|
remote control
|
|
Crash proof structure to protect barrier and car
|
|
Solid and endurable structure, strong bearing capacity
|
|
Manual operating mode is provided
|
|
In case of electric failure or trouble, it can manually operate the movable barrier to return to the horizontal position
|
Features
1. Water-proof and rust-proof coating.
2.1.8mm cold-rolled steel plate
3. Crash proof structure
4. Flexible arm
5. CE and ISO 9001-2008 certified
6.1 year warranty
Advantages of Our Vehicle Barrier
Used to control vehicles at customs, military bases, important government, departments, airports, jails,
nuclear power stations, docks, logistic centers, gardens, public parking place etc. Our products has a
solid and endurable structure.
Advantages of Our Services
1 Products: All of the productions are acquired CE and ISO 9001-2008 Certificate, lifespan over 5 years
guarantee under properly working circumstances. Totally Excellent EXW Price with great after-sale
service.
2 Quality Control: All of the productions must go throught a full professional test procedure before the
shipment:
A. Powder coating Test > B. 48Hrs High temperature aging Test > C. 48Hrs Low temperature (-50° C),
Humidity aging Test.
The Low-Returning Rate: <1%.
3 Warranty: Provide 1 year of warranty, our specialist team do best to help you on the journey.
4 arious payment Terms: T/T, Western Union etc.
5 Quick & Safe Delivery: Been specializing in this field for years, we have established many reliable
partners, Best freight and good service for the shipping, 24Hrs tracking make sure all the goods arrived
on time & safely.
6 Package: Strict package, all the products are in regular export strong package standard.

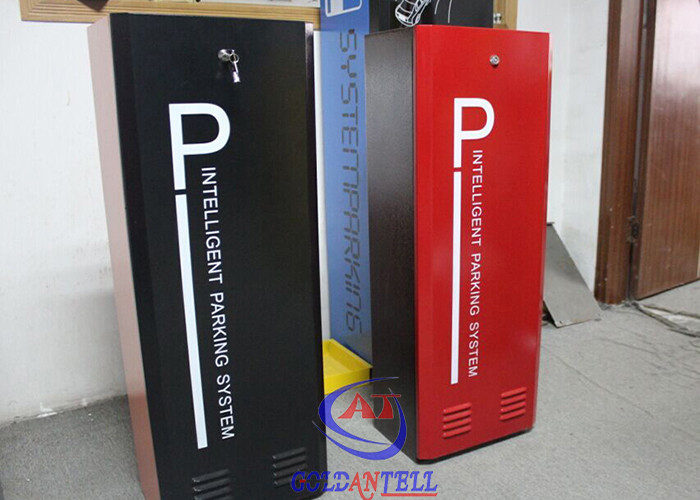

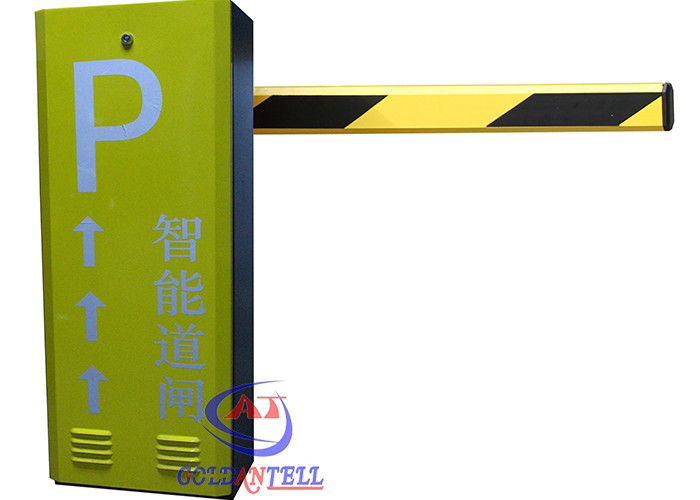

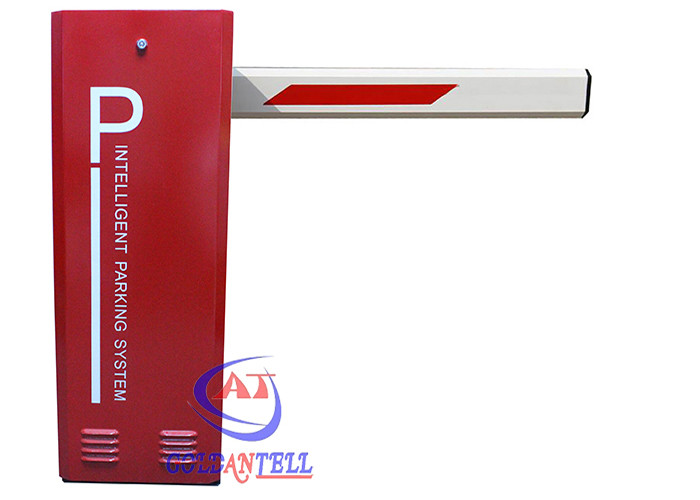

Entrance Boom Barrier Picture
