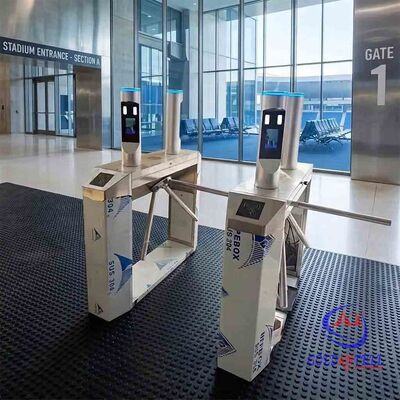

Finger-scan or Multi-technology Badge Waist-level Rotor Checkpoint for Employee-only Premises
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE certificate |
| Model Number | GAT-303 series |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | carton +crate, or closed wooden case |
| Delivery Time | 5-7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 2,000pcs per month |
Product Details
| Transit Speed | 25-30 Persons Per Minute | Communication | RS485 Communication |
|---|---|---|---|
| Material | 304 Stainless Steel, (or Custom 316) | Power Supply | AC 100~240 Volts, 50/60HZ |
| Dimension | L1200xW280xH1000mm | Screen | 7 Inches LCD Screen |
| Working Voltage | AC220/110±10%V; 50±10%HZ | Pass Speed | 30 Persons/min |
| Highlight | finger-scan badge waist-level rotor checkpoint,multi-technology employee-only premises turnstile,facial recognition rotor checkpoint with warranty |
||
Product Description
Product Overview
This waist-level rotor checkpoint is designed for employee-only premises and supports finger-scan or multi-technology badge verification. It integrates a 7-inch high-resolution LVDS LCD screen and can be combined with any face recognition access control system or other devices such as RFID readers, push buttons, fingerprint scanners, and biometric devices.
- 7-inch high-resolution top LVDS LCD screen
- Compatible with face recognition access control systems, RFID devices, push buttons, fingerprint scanners, and biometric devices
- Semi-automatic operation (manual and full-auto types also available upon request)
- Beam lifts and falls automatically when power is cut off
- Bi-directional passage
- Indoor or outdoor installation; waterproof design
Technical Specifications
Facial Recognition System Terminal
| Size Specifications | 155mm * 105mm * 660mm (length * width * height) |
| Memory | 2GB DDR + 8GB EMMC |
| Screen | 7-inch LCD screen |
| Wired Network | 1 * RJ45 Ethernet socket |
| Wiegand / RS232 | Wiegand format 26/34, RS232 |
| Relay Control Module | 3 inputs, 2 outputs |
| Card Reader | Optional (IC card reader / ID card reader) |
Tripod Turnstile
| Item Number | GAT-302 |
| Housing Material | Standard 304# stainless steel |
| Size | 1200 * 280 * 1000mm |
| Working Voltage | AC220/110 ±10%V; 50 ±10%Hz |
| Power Consumption | 20W |
| Passage Width | ≤600 mm |
| Pass Speed | 30 persons/min |
| Normal Running Life | 3 million cycles (continuous opening and closing operation) |
| LED Light | Optional, direction arrow |
| Direction | Single or bi-directional (optional) |
| Emergency | When powering off, arm opens |
Features & Functions
Security
- Active arm can drop clear for emergency situations or specific applications
- Arms cannot be removed without special tools
- Mechanism cannot be forced
Economy
- Inactive arms do not hinder passage
- Simple to install
Flexibility
- Removable end covers for easy integration of any type of access control device
- Numerous configurations covering all pedestrian access control scenarios
Frequently Asked Questions
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: We offer samples if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: Do you test all your goods before delivery?
A: Yes, we have 100% testing before delivery and will provide a testing video for your confirmation before shipment.
Product Applications
- Museums
- Apartments
- Country Clubs
- Fairgrounds
- Swimming Halls
- Fitness Gyms
- Hospitals
