8-Inch LCD ESD Tester Turnstile Gate 1200mm Stainless Steel

Large Image : 8-Inch LCD ESD Tester Turnstile Gate 1200mm Stainless Steel

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	Goldantell/OEM
Model Number:	GAT-201

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	US$420-950

Contact Now

Detailed Product Description

Turnstile Size:	1200mm (L) * 280mm (W) * 1000mm (H)	ESD Pedal Size:	400mm (W) X 420mm (L) X 20mm (H)
Recording Capacity:	100,000 Or More	Accuracy:	±5%
Material:	304 Stainless Steel	Direction:	Single Or Bi-directional
Communication Interface:	RS485	LCD Monitor Size:	8 Inch
Operating Voltage:	Input AC220V Output DC12V	Working Temperature:	5°C To 40°C
Test Range:	0.01-1000MΩ (shoes), 0.1-35MΩ (wrist-strap)	Power Consumption:	AC220V, 50Hz/AC110V, 60Hz
Net Weight:	150KG	Pass Speed:	30-40 Persons/min
IP Protection:	IP54
Highlight:	8-inch LCD ESD tester turnstile gate , stainless steel flap barrier gate , 1200mm ESD tester turnstile gate

Custom Designed 8-Inch LCD Monitor ESD Tester Turnstile Gate

Product Specifications

Attribute	Value
Item type	ESD Turnstile
Turnstile size	1200mm (L) × 280mm (W) × 1000mm (H)
ESD pedal size	400mm (W) × 420mm (L) × 20mm (H)
Recording information	Up to 100,000 or more
Accuracy	±5%
Material	304 stainless steel
Direction	Single or bi-directional (optional)
Access control system	Various access control compatible
Customization	Customized design, custom logo available
Communication interface	RS485

GAT-ESD305 ESD Tester System Specifications

Instrument Dimensions	8 inch LCD monitor
Pedal size	400mm (W) × 420mm (L) × 20mm (H)
Operating voltage	Input AC220V, Output DC12V
Working hours	Unlimited
Environmental conditions	Humidity: 0%~90%, Temperature: 5°C~40°C
Data storage	Automatically stores records and ESD test data (up to 100,000 or more)
Test Range and Accuracy	Left shoe: 0.01-1000MΩ (±5%) Right shoe: 0.01-1000MΩ (±5%) Wrist-strap: 0.1-35MΩ (±5%)

System Advantages

Larger 8-inch ESD monitor screen compared to standard 4-inch models
Supports IC or ID card access control in turnstile system

Turnstile Flap Gate Specifications

Power consumption	AC220V, 50Hz/AC110V, 60Hz (optional)
Housing Size	1200×300×1000mm
Housing material	1.5-2mm, 304# stainless steel, corrosion resistant
Net Weight	150KG
Drive motor	DC brushless motor
Channel width	500-600mm
Pass speed	30-40 persons/min
IP protection	IP54
Input signal options	DC12V/dry/contact/RS485/RS232/Remote
Fail-safe operation	Railing-off against power off
Working temperature	-15°C to 75°C
Working environments	Indoor, outdoor
Relative humidity	≤95% (non-condensing)
MCBF	2,500,000 cycles

Factory Production Photos

Installation Options

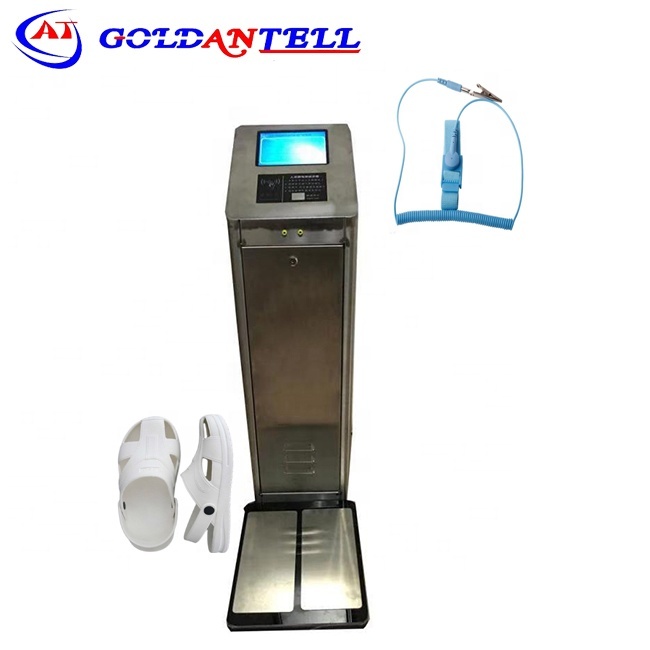

ESD Tester with pillar housing

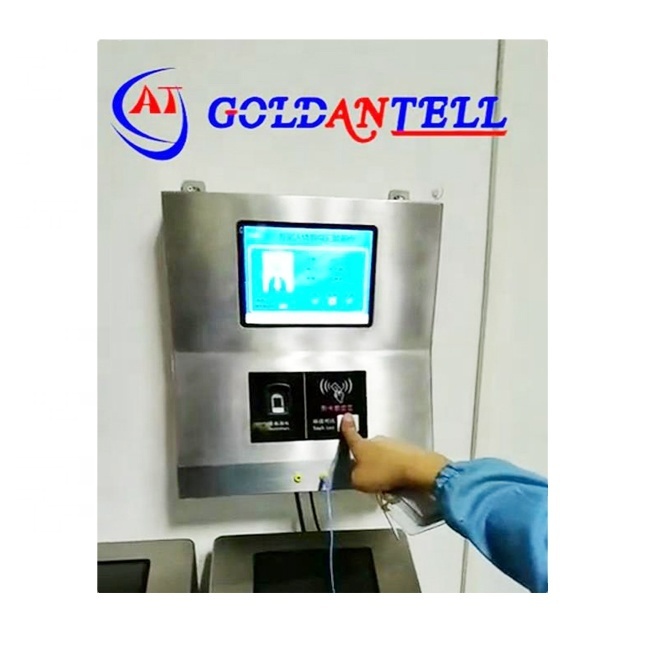

ESD Tester wall-mounted installation
