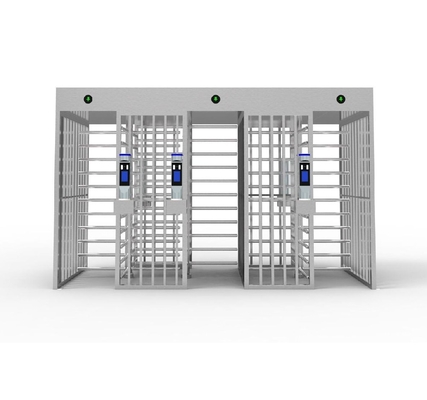

Indoor & Outdoor RFID Card Biometrics Facial Recognition Three Lane Full Height Turnstile

Indoor & Outdoor RFID Card Biometrics Facial Recognition Three Lane Full Height Turnstile

Brief Introduction of Three Lane Full Height Turnstile

This turnstile is an intelligent pedestrian channel management device developed, researched and produced by our company. It has beautiful appearance, mature technology and stable performance. The entire product appearance adopts the combination of national standard 304 high-quality stainless steel and modern fine processing technology. It is sturdy and durable, and organically integrates mechanical, electronic, microprocessor control and various reading and writing technologies. The standard external electrical interface is both intelligent and advanced, convenient and practical, and can be freely connected with various intelligent devices.

Specification of Three Lane Full Height Turnstile

I. Main technical parameters

1. Appearance size: length 3600*width 1500*height 2300mm
2. Material structure: 304 stainless steel; top box 1.5mm, guardrail/turn rod 1.5mm, turn column 2.5mm
3. Channel width: 650mm
4. Gate rod length: standard 600mm
5. Control mode: semi-automatic
6. Control direction: one-way, two-way (optional)
7. Locking and unlocking: lock or unlock when power off, reset lock when power on, unlock when gate opening signal
8. Passing speed: 60 people/minute
9. Working power supply: AC110V~AC220V
10. Use environment: indoor, outdoor (canopy recommended); temperature: -30℃ to 60℃; humidity: less than 95%RH, no condensation
11. Communication method: TCP/IP or RS485

Functional features of Three Lane Full Height Turnstile

1. It has multiple working modes, which can be used for bidirectional card entry and exit, and can be used for card swiping on one side and prohibiting or free passage on the other side.
2. It adopts a unique incomplete gear transmission system, which makes the gate locking and unlocking at zero position more accurate and reliable.
3. The whole system runs smoothly.
4. The gate opening signal is unlocked when the power is on, and locked or unlocked when the power is off.
5. Unified and standard external electrical interface, which can be freely connected with various intelligent devices, facilitate system integration, and can be remotely controlled and managed through the management computer.
6. With ultra-bright direction indicator, it has a clear direction indication function, and uses intuitive LED direction indicator to indicate whether it is allowed to pass or prohibited to pass.
7. It has an automatic reset function, which automatically resets if it does not pass within the specified time after the gate is opened.

Note: If you need to realize intelligent access control and attendance functions, please install our company's access control controller, card reader, fingerprint machine, face machine, barcode scanner and other equipment to realize personnel access permission setting and allocation, remote real-time monitoring, remote door opening, viewing access records, time-limited, number-limited, time-limited, number-limited management, timed normally open and normally closed, anti-submarine return, fire alarm linkage, centralized management, attendance management, etc.

Access Control System of Three Lane Full Height Turnstile

Packages of Three Lane Full Height Turnstile

Application of Three Lane Full Height Turnstile

Applicable to prisons, banks, railway stations, bus stations, factories, exhibition centers,

construction sites, stadiums, etc.
