Waterproof OLED Display Linux Turnstile Security Systems RFID Card QR Code Cloud Access
| Place of Origin | SHENZHEN CITY, CHINA |
|---|---|
| Brand Name | GOLDANTELL |
| Model Number | GAT-PW501 |
| Minimum Order Quantity | 1 |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 1-3 working days |
| Payment Terms | T/T,Western Union,Paypal |
| Supply Ability | 2,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Supply | DC12V | Application | Office/ Building/Factory Access Control,School |
|---|---|---|---|
| Function | QR Code Module | Weight | 0.8kg |
| Application Mode | Gate, Wall-mounted, Desktop, Floor-mounted Installation | Warranty | 1 Year |
| Highlight | OLED Display Turnstile Security Systems,Linux Turnstile Security Systems |
||
Product Description

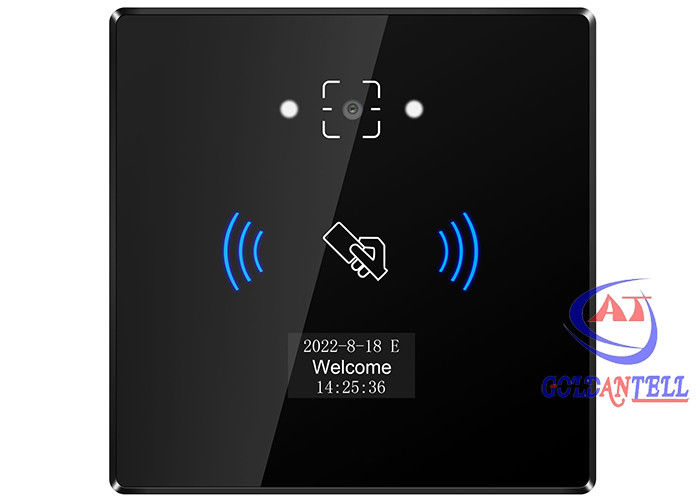

Waterproof OLED Display Linux Turnstile Security Systems RFID Card QR Code Cloud Access
Waterproof OLED display screen Linux system tickets entry door RFID Card 100,000 QR code cloud access controller
Key Features
- Working Mode: Compatible with pedestrian turnstile gates or standalone operation, supporting wall-mounted, desktop, and floor-mounted installations
- Application Places: Ideal for office areas, hotels, passage gates, office buildings, schools, shopping malls, shops, communities, and construction sites
- QR Code Health Verification: Optional feature with multi-language operating system support
- RFID Card Reader: Optional access control functionality
Technical Specifications
| Specification | Details |
|---|---|
| Body Dimension | 234*125*24.5mm |
| Screen Size | 8 inches, full viewing angle IPS LCD screen |
| CPU | 4-core RK3288/3399 |
| Memory | RAM DDR3 2GB + Local storage TF card 8GB |
| Serial Port | 2x RS232 interfaces, 1x 485/1 Wiegand input, 1x Wiegand output |
| Response Speed | Fastest 0.2s |
| Network | Supports wired, 2.4G wifi, 4G network card |
| Relay Control Module | 1 output |
| USB | USB2.0 micro 2 way |
| RFID Card Reader | Optional |
| QR Code Scanner | Optional (requires SDK development or customization) |
Advanced Features
- Single PC can control multiple face recognition devices
- Real-time monitoring of access control information
- 200W high-performance HD wide dynamic camera module
- Microcontroller-controlled light-sensing module eliminates bounce issues
- Direct control of linked equipment through gate and access control module
- LAN capability for sending black/white lists to terminal devices
Product Display
Frequently Asked Questions
Does this product support other language operation systems?
Yes, it supports multiple languages.
How is quality guaranteed?
Pre-production samples before mass production and final inspection before shipment.
Can your machine work with Turnstile Doors?
Yes, it's fully compatible with turnstile doors.
Does your machine support WIFI?
Yes, it supports wired, WiFi, and 4G module connections.
How long is the lead time?
Standard items:
10-50 sets: 3-7 working days
50-100 sets: 7-12 working days
200-500 sets: 12-15 working days
Custom items require 3-10 additional working days.
10-50 sets: 3-7 working days
50-100 sets: 7-12 working days
200-500 sets: 12-15 working days
Custom items require 3-10 additional working days.
Installation Options
Desktop Installation: Remove nut, pass tail wire through stainless steel bracket and nut, then tighten angle. Ideal for program debugging.

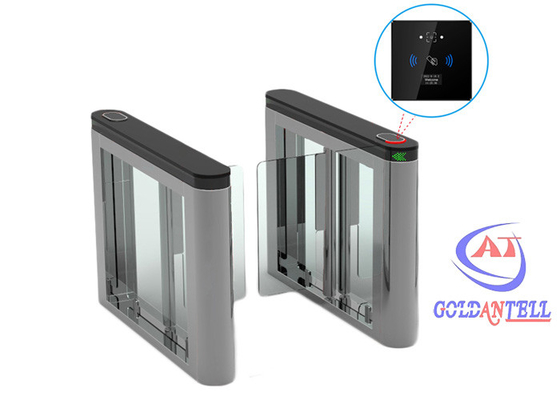

Turnstile Gate Installation: Can be attached to the top of turnstile gate or fixed in an extra pillar as an alternative option.
Application Areas
- Office areas
- Hotels
- Passage gates
- Office buildings
- Schools
- Shops
- Communities
- Construction sites
- Other public services requiring access control
