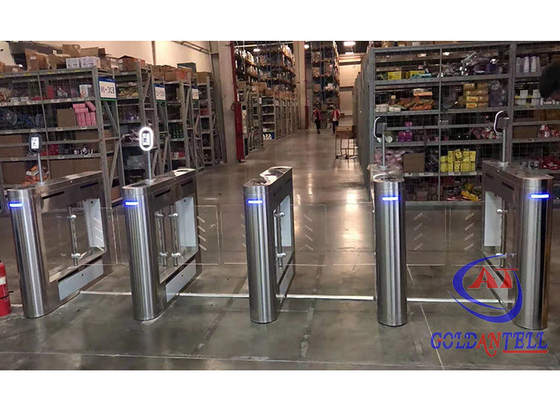

Indoor Workshop Entrance Face Gate Control Access Turnstile With biometric auto recognition reader
Quick Description
◊ Application: outdoor or indoor
◊ Safety: Gate auto open when power is off to meet the fire protection requirements.
◊ LED indicator light: green and red indicate the passing information.
◊ Unified and standard external electrical interface, which can be connected with various reading and writing devices, which is convenient for system integration.
◊ Custom: we can make a visible high glass panel that prevents a user from climbing over the gate to gain unauthorized access.
◊ Glass panel slides open horizontally to provide an unobstructed passageway.
Technical parameters
| Size of housing: |
1400mm (L) * 200mm (W) * 1000mm (H) |
| Pass through width |
widely 60 /90cm ,or (120cm and custom-made) for a pair |
| Pass speed: |
40 persons/min (open), 25-30 persons/min (closed) |
| Drive motor: |
standard DC 24 V brush motor ( or brushless motor) |
| Normal running life: |
3 million |
| Time of opening/closing: |
0.6 second |
| Time to work after power on: |
3 seconds |
| Reset time after break down: |
10 seconds |
| Direction: |
single or bi-directional (optional) |
| Working environment: |
indoor/outdoor (with a tent over) -10℃～70℃ |
| Communication interface: |
standard RS 485 interface, distance ≤1200m |
| Input interface: |
+12V level signal or pulse width>100 ms
12V pulse, drive current>10 mA |
| Relative humidity: |
≤90% coagulation free |
| Housing material: |
domestic standard 304 # stainless steel |
| Working voltage: |
AC100-240V, 50±10%HZ |
Functions & Features
1.The passing time is adjustable.
2. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
3.The bicycle delay function: prevent the gate from hitting the bicycle;
4.Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
5.The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
6.Various control functions: external button, remote control, bar code, IC or ID, etc.
7.Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
Project Application
a. Movie theaters, fitness halls, Clubs, Swimming Hall, Gym.
b. Hotel, Factory, Bank, Prison, Hospital, School, Enterprise’s Entrance and Exit Attendance
FAQ
1.Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
2) How about your package?
Vivian: Seaworthy wooden case + Foam.
3) How about the payment method?
Vivian: Standard products: 50% deposit, 50% balance payment before shipment.
4) How about the lead time?
Vivian: Regular products need 5-8 working days. The customized products need 9-13 working days.
