Product Details:
Payment & Shipping Terms:
|
| Size: | 1200*280*1000mm | Operating Temperature: | -15°C-70°C |
|---|---|---|---|
| Passing Width: | 60~180cm | Material: | 304 Stainless Steel |
| Communication: | RS485 Or TCP/IP | Application: | Office\School\Airport\Subway\Outdoor,Apartment Door |
| Power Supply: | AC100V-240V | Working Environment: | Indoor / Outdoor ( Shelter) |
| Highlight: | Disabled Swing Barrier Gate,Subway Swing Barrier Gate,SS 304 Swing Turnstile Gate |
||
Turnstile Gate New Products Disabled Turnstile Swing Barrier Gate Disabled Access Gate
Product Application
1. The complete stainless steel construction is suited for interior or exterior application.
2. The access gates also have double core engine, apply for both sides access which can apply to multi-channel.
3. Our pedestrian barrier Gates can provide a level of security to meet any challenging requirements, including anti-pinch, time attendance, or passing management, etc.
4. with 485 interface for long-distrance control concern.
5. IP54, suitable for both outdoor and indoor.
6. Smoothly running with little noise.
7. MOQ: 1 unit.
Technical data list
|
SPECIFICATIONS FOR MACHINE
|
|||
|
1
|
Cabinet dimension
|
1200 (L) x 280 (W) x 1000 (H) mm
|
|
|
2
|
Cabinet material
|
304 stainless steel (SUS316 can be custom-made)
|
|
|
3
|
Lane length
|
normally 600~900 mm, can lengthen
|
|
|
4
|
Opening/closing time
|
0.6s
|
|
|
5
|
Access mode
|
single in/out or Bidirectional
|
|
|
6
|
Access Readers
|
rfid cards , fingerprint, Barcode ,ticket scanners
|
|
|
7
|
More Optional function
|
coin controller, counter , sound alarm, speakers
|
|
Feature & Function
1. Using 304 standard stainless steel, professional industry design at IP54 with moisture proof, dust proof and water proof, suitable for indoor and outdoor;
2. Housing in standardized design, based on the full CNC laser cutting, drilling, molding technology, mechanization drawing process, the modular docking, it is easy to handle maintenance with high degree of interchange;
3. Access gate installed infrared sensor, when telescopic flap arm meets resistance during open and close, it will automatic bounces back or within a specified time motor stop working, the intensity is very small, at the meantime gates send out alarm signal and voice. In addition, access gates have anti-trailing, orientation discrimination, anti-pinch injury functions etc.
4. With automatic reset function, pedestrian read valid card, if the person does not pass in the specified time, the system will automatically cancel the access rights;
5. The whole system running smoothly with low noise. The access gates also have double core engine, apply for both sides access which can apply to multi-channel.
6. Unified standard external interface which can be mounted with a variety of card reader. The access gate can also to be remote controlled and managed through distance computer;

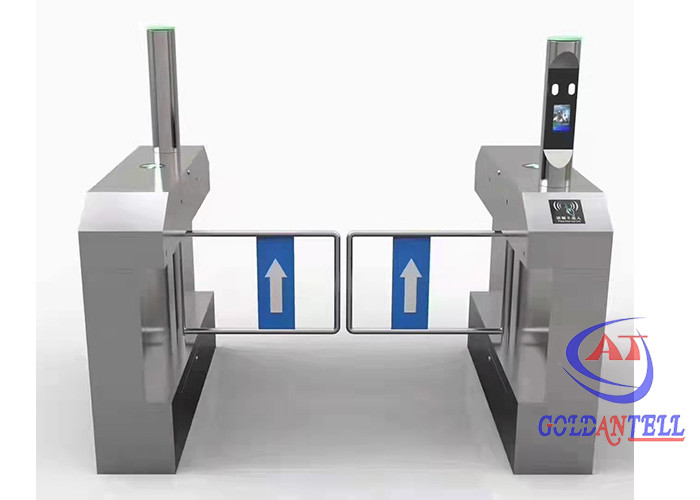

Product Photo
FAQ
Q1. What is your terms of packing?
A: First, we will pack our goods in a protective film. Then we will put it in neutral cartons. Third, we will pack it in a standard export wooden case to protect the goods perfectly.
Q2. What are your terms of payment?
A: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Application Project
