Product Details:
Payment & Shipping Terms:
|
| Passage Width: | 60cm | Size Of Product: | 120 X 30 X 100(H) Cm |
|---|---|---|---|
| Direction: | Bi-directional (or Optional Single Way) | Opening Speed: | Within 1s |
| Opening Ways: | Rfid, Barcode,fingerprint, Or More Access | Material: | 304 Stainless Steel |
| Application: | Indoor Or Outdoor | Power Supply: | 110-240v, 50/60HZ |
| Type: | Speed Electrical Flap Gate | IP: | IP 54 |
| High Light: | 60cm flap barrier turnstile,flap barrier turnstile IP54,Office Access Control Turnstiles |
||
Face recognition and temperature office access control wing turnstile flap barrier turnstile gate
Our Turnstile can combine with different kinds of access readers,like: RFID Reader&Fingerprint Reader &Coin Machine&QR code/Bar code System&ESD Tester Access Control(If you have access control system,you can only purchase our turnstiles,if not, our side will install the access control system for you),except acess system,also can use remote control.
What is the technical parameters of the flap barrier?
| 1 | Power | AC220C±10V,50HZ |
| 2 | Operating temperature | -15°C--75°C |
| 3 | Relative Humidity | ≤95%, No Condensation |
| 4 | Arm length | 51cm |
| 5 | Passing Speed | 30~40 persons/min(IC Card) |
| 6 | Motor | 0.5NM/24V(Fully Automatic) |
| 7 | Input Connection | +12V Level Signal or Pulse Wide>100ms DC12V |
| 8 | Communication Connection | RS485 Communication Module Standard. |
| 9 | Material | SUS304,thickness is no less than 1.3mm |
| 10 | Protection Grade | IP54 |
| 11 | Colour | SSB(US32D)- Stainless Steel Brushed / Powder Coating(Optional) |
| 12 | Operation Place | Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control |
What is the feature of your flap barrier?
◊Smart card reader compatible with a variety of card such as IC and ID card.
◊ Can be expanded to automatic identification system, realizing function of access control,
pedestrian flow control,attendance check or fare collection.
◊ Equipped with international standard electrical interface, can be easily integrated with other
R/W device, also can be controlled and management through remote supervision computer
◊ Equipped with a couple of infrared photocell, alarm at unauthorized entry or tailgating
attempts, together with anti-strike function to protect pedestrian
◊ LED gate direction indicator that displays the current operational state to pedestrian. Green
arrow for entry free, Red cross for passage locked.
◊ Can open the turnstile by two input signals (signal can be input by access controller, button or other equipments)
◊ Provide audible sound prompt and information display function.
◊ The flaps will open automatically during power interruption, and recover N/C mode after power on(optional)
Where is the operation place of the flap barrier ?
Subway Station, Hoverport,Tourism Sports,Exhibition, Swimming Hall,Residence Area,Enterprise’s Entrance and Exit Attendance,Gateway Guard,Charge Management,Special Access Control

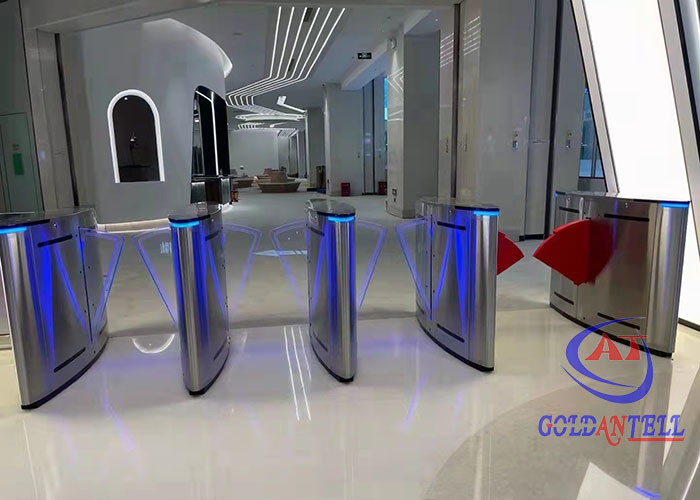

FYI,we can supply with Single Lane ,Two Lanes or (multiple lanes) as you expected, examples as shown below:
What is the similar recommendation of your flap barrier?
1. Double wings flap type, can support wider passageway about 900mm;
2. High speed sliding type, support high security with FULL height glass wall (or half height wall barrier optional).
