Product Details:
Payment & Shipping Terms:
|
| Application: | Office\School\Airport\Subway\Outdoor | Dimension: | 1400 * 65 * 1000mm |
|---|---|---|---|
| Power Supply: | AC100V-240V | Passing Speed: | 45persons/min |
| Driving Motor: | 24V Brushless DC Motor | Usage: | Subway Station Mall |
| Material: | Stainless Steel 304/316 | Lane Width: | 60,90,110cm Or Others |
| Highlight: | Pedestrian Access Control Turnstile Gate,SUS304 Access Control Turnstile Gate,Standium Pedestrian Turnstile Gate |
||

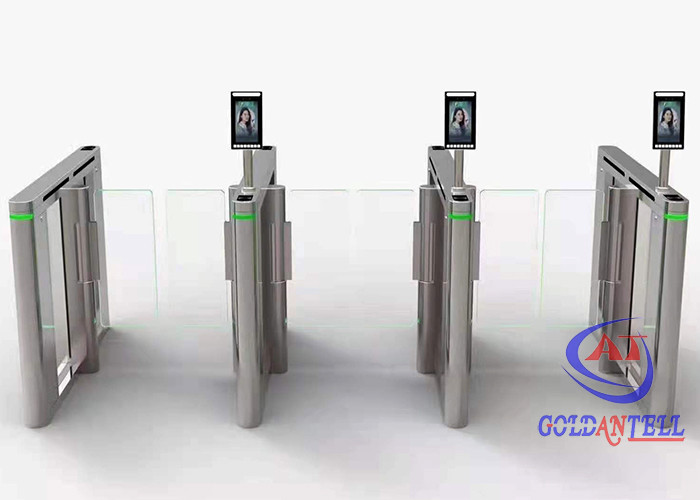

SUS304 Pedestrians Access Control standium auto gate turnstiles with face recognition terminal linux base
Brief Description
1. Goldantell intelligent Series of turnstile gates with excellent design and good performance are produced by utilizing innovative technology and high quality material, are available with unique features for wide range of security, commercial and industrial applications to meet customer satisfaction.
2. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
3. System Integration: be compatible with Face, thermal, RFID / fingerprint / QR or barcode / ESD access control system, to manage.
4. Acceptable: CUSTOM OEM/ODM service like size, shape, etc.
5. made of 304 stainless steel; IP 54,waterproof , with nice and elegant shape, anti- rust,durable.
Technical specification
| 1 | Cabinet dimension | 1400 (L) x 65 (W) x 1000 (H) mm |
| 2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
| 3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
| 4 | opening/closing time | 0.2s |
| 5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
| 6 | Access mode | single in/out or Bidirectional |
| 7 | Passthrough Width | 900mm (or custom) |
| 8 | Mechanism | DC Brushed motor+Clutch (or Servo motor) |
| 9 | Communication interface | RS485, TCP/IP |
| 10 | Infrared sensor | 6~10 pairs |
| 11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
| 12 | Reset time after break down | default 10s can be changed to fit different demands |
| 13 | MCBF | 5,000,000 Cycles |
| 14 | Working humidity | 30%~95% |
Security Features
◊ Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
◊ Bi-directional or single way optional.
◊ Gate auto-open when power is off to meet the fire protection requirements.
◊ Anti-Tail gaiting feature built in to prevent unauthorized entry.
◊ The wings will open automatically during power interruption, and recover N/C mode after poweron(optional)
◊ Fast opening and closing time.
◊ Built-in mechanical lock to prevent forced opening of swing flaps.
◊ Pairs of IR sensors.
Operation Application
Bank
Fitness Gym
Factory
Hotel
Movie theaters
Office buildings
Product Photos
Packing Details
1. Exported product: Wooden case package of Export exempted from inspection plus pearl wool and plastic wrap
2. Domestic: Bubble wrap plus carton or pearl wool plus wooden packaging.
FAQ
1. Can we visit your factory?
Vivian: Yes. Any time will be welcome.
2. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
3. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
4. What is your MOQ?
Vivian: Any quantity is acceptable.
5. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
Our Service
1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
