Product Details:
Payment & Shipping Terms:
|
Pole Material: | Stainless Steel 304 | Product Name: | Single Pole Swing Barrier Gate |
---|---|---|---|
Mechanism: | Brushless Motor/Servo Motor | Lane Width: | 450mm-900mm(single Side) |
Dimension: | 168mm Diameter, 1050mm High | Application: | Office\School\Airport\Outdoor,Apartment Door |
Power Supply: | AC100V-240V | Passing Speed: | 30-35 Persons/min |
Highlight: | 0.3s Cylindrical Swing Turnstile,SS304 Cylindrical Swing Turnstile,Cylindrical swing turnstile gate |

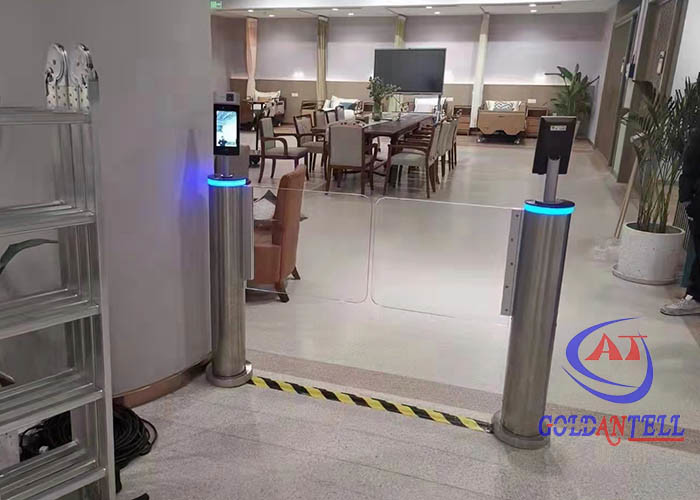

Automatic cylinder Bracket 0.3 speed face recognition temperature swing turnstile gate with remote control
Brief Description
1. Silk printing logo: Available
2. This turnstile with swing panels is designed in a modern and elegant style and provides an ideal contactless solution for access control at sites with high aesthetic and comfort requirements.
3. Panel swing Material: Stainless steel /Acrylic plate / tempered glass are optional.
4. Built-in mechanical lock to prevent forced opening of arms.
5. Widely used in Commercial Buildings, Airports, Metro Stations, Libraries, Factories, Exhibition Centers, Gyms, and Government Institutions.
6. Bi-directional or single-way optional.
Technical specification
1 | Cabinet dimension | diameter of pillar is 168mm, the height is 1050mm |
2 | Cabinet material | 304 stainless steel (316 ss can be custom-made) |
3 | Switching power supply | AC220±10%V 50Hz or AC110±10%V 60Hz |
4 | opening/closing time | 0.2s |
5 | Arm material | thickness 10mm Acrylic, or tempered glass or steel (custom) |
6 | Access mode | single in/out or Bidirectional |
7 | Passthrough Width | 550 mm - 1800 mm for a pair or 60-90mm for a pc |
8 | Swing arm angle | 180 degree |
9 | Communication interface | RS485, TCP/IP |
10 | Time of opening/closing | 1 second |
11 | Optimal flow rate | 40 persons/min (open), 35 persons/min (closed) |
12 | Reset time after break down | default 10s can be changed to fit different demands |
13 | MCBF | 5,000,000 Cycles |
14 | Working humidity | 30%~95% |
Security Features
1. Problem-self-checking function.
2. When the power off, arm open automatically and power on again, the arm will be held automatically.
3. Anti-Tail gaiting feature built in to prevent unauthorized entry.
4. Fast opening and closing time.
5. Safety function(anti-pinching). By default sliding wing will auto- reverse if IR sensor detected obstacle within the sliding wing area. This avoid sliding wing to accidentally hit onto to user. Can adding green/red/blue light lining effect along the edge of the sliding wing to ensure sliding wing is easily visible
6. Long service life with low operational cost.
Operation Application
1. Entertainment Places
Movie theaters,
Fitness halls,
Country clubs,
Fairground
Swimming Hall,
Fitness Gym.
2. Public Places
Stadium,
Library,
Museums
Parks,
Offices,
Exhibition halls,
Commercial buildings.
Our Advantages
1. We Focus on Turnstile for more than 13 years.
2. We do customize Service. OEM, OEM is available.
3. We Optimize For Lower Cost, remove unnecessary features/use mould design, save your money!
4. We Timely Response every customer! Response to customers whoever did business with us in 3mins, and assist with project solutions later.
FAQ
1. How long is your warranty period?
Vivian: One-year guarantee & Lifetime technology support.
2. How does your factory control the quality?
Vivian: Quality control from the beginning to the ending.
3. Can your machines be used outside?
Vivian: With waterproof function, could be used outside.
4. How about the payment method?
Vivian: If order amount <=5000USD, 100%T/T in advance. If order amount >5000USD, it is 50%T/T in advance and 50%T/T before shipment (can be further negotiated for best cooperation between us).
5. Which payment terms are you accept?
Vivian: T/T, Western Union, LC, PayPal, etc.
