Multifunctional Flap Turnstile Gate Face Recognized Access Control Security Scanner Gate
| Place of Origin | Guangdong,China |
|---|---|
| Brand Name | Goldantell |
| Certification | CE/ROHS/FCC/IS9001 |
| Model Number | GAT-220 series |
| Minimum Order Quantity | 1pc |
| Price | negotiation |
| Packaging Details | Packed in carton firstly,and then reinforced with export wooden case for outer packing |
| Delivery Time | 7 working days after received your payment |
| Payment Terms | T/T,western Union,LC,Paypal |
| Supply Ability | 1,000pcs per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Fare Collection,ticket Station,Office | Transit Speed | 30~40 Persons / Min |
|---|---|---|---|
| Direction | One Or Bi-direction(optional) | Working Environment | -15-70℃ |
| Communication Port | RS485 ,TCP/IP | Power Supply | AC110 Or AC220+/-10% |
| Size Of Product | 1200*300*1000mm | Material | 304 Stainless Steel/316 Stainless Steel |
| Highlight | Multifunctional Flap Turnstile Gate,face recognized Flap Turnstile Gate,RS485 security scanner gate |
||
Product Description

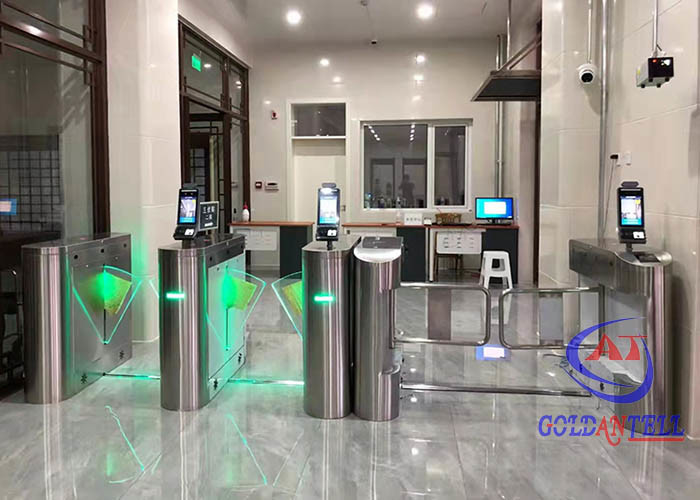

Multifunctional Flap Turnstile Gate with Face Recognition Access Control
Product Description
Wholesale multifunctional flap turnstile gate with face recognition access control, security scanner, and swing barrier door functionality.
Key Features
- LED indicator lights (green/red) for clear passage status
- Special stretch wing design reduces closing time and improves passage speed while preventing tailgating
- Bi-directional lanes compatible with facial detection temperature scanners and multiple access control systems (RFID, fingerprint, QR/barcode, ESD)
- Constructed with high-quality stainless steel (customizable)
- Customization options including logo printing and design modifications
Technical Specifications
| Item | Specification |
|---|---|
| Model | Bridge type flap turnstile (single or double motor options) |
| Dimensions | 1200mm (L) * 300mm (W) * 1000mm (H) |
| Retractable arm length | 260mm |
| Passage speed | 40 persons/min (open), 25-30 persons/min (closed) |
| Passage width | ≤600mm |
| Operating life | 3 million cycles |
| Opening/closing time | 0.6 seconds |
| Power-on activation time | 3 seconds |
| Reset time after failure | 10 seconds |
| Direction options | Single or bi-directional (configurable) |
| Motor | DC 24V brush motor |
| Operating environment | Indoor/outdoor (with cover), -10℃ to 70℃ |
| Communication interface | RS 485 (distance ≤1200m) |
| Input interface | +12V level signal or pulse width >100ms |
| Housing material | 304 stainless steel |
| Power supply | AC220±10%V 50±10%HZ |
Advanced Functions
- Fault detection and alarm system for easy maintenance
- Programmable operation via built-in keyboard
- Mechanical anti-pinch protection with automatic reset
- Anti-breakthrough locking mechanism
- Synchronization capability for dual gate setups
- Automatic user authority cancellation after timeout
- Configurable as normally open or closed
- Compatible with multiple reader types (IC/ID cards, barcodes, fingerprints)
- LED directional indicators
- Fire safety compliant (opens when power fails)
- Intrusion alarm system
- Optional counter function
- Infrared photocell anti-pinch protection
Typical Applications
- Movie theaters
- Fitness centers
- Country clubs
- Fairgrounds
- Nightclubs
- Swimming pools
- Gyms
- Hotels
- Factories
- Banks
- Hospitals
- Schools
Competitive Advantages
- 16-hour professional customer support
- 10+ years ODM/OEM experience with custom design capabilities
- Complete system solutions including software management
- Remote troubleshooting and free spare parts replacement within warranty
Frequently Asked Questions
What is the warranty period?
One-year guarantee with lifetime technology support.
What payment methods do you accept?
For orders ≤$5000: 100% T/T in advance. For orders >$5000: 50% T/T in advance, 50% before shipment (negotiable).
Can we visit your factory?
Yes, visitors are welcome at any time.
What is your packaging standard?
Export: Wooden case with pearl wool and plastic wrap. Domestic: Bubble wrap with carton or pearl wool with wooden packaging.
