Human Body Comprehensive ESD Tester Antistatic Checker Tool Esd Wrist Strap Anti-Static Shoes Tester
Human Body Esd Tester Features & Functions
Human Body ESD tester has 4 modes to choose from:
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
④ Only detect the hand, this mode is suitable for assembly line or logistics;
Pls note: The above modes do not need to be switched manually, all can be set in the software, reading card automatically recognizes the employee's authority, the company can set different test card permissions according to different test requirements
Human Body ESD Tester Specification
|
1
|
Instrument Dimensions
|
8 inch LCD monitor:
display all info of users, like photo, name, card ID,depart, entry time,etc.
|
|
2
|
Operating voltage
|
input AC220V output DC12V
|
|
3
|
Pedal size
|
W 400 x L 420 x H 20 (mm)
|
|
4
|
Working hours
|
unlimited
|
|
5
|
Environmental conditions
|
Humidity: 0%~90%, Temperature: 5C°~ 40°C
|
|
6
|
Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more.
|
|
7
|
Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper
and lower limit values of the test range can be adjusted according to customer requirements.)
|
|
Left shoe setting 0.01-1000MΩ,Accuracy ±5%
Right shoe setting 0.01-1000MΩ,Accuracy ±5%
Wrist-strap setting 0.1-35MΩ,Accuracy ±5%
|
| 8 |
With industrial computer(sql&software installed) |
There are 3 types of the esd type:

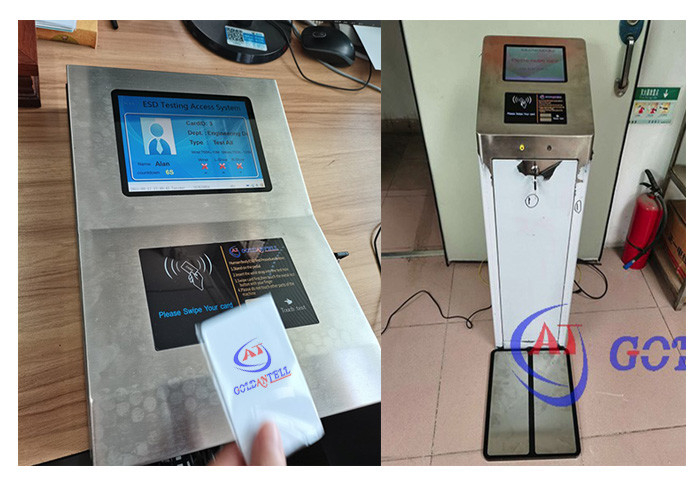

Type 1-Esd tester installed in vertical column
Type 2-installed in turnstile gate
Type3-mounted on wall
Working mode Instruction
① Simultaneously detect hands and feet. This mode is suitable for line operators;
② Only detect the feet, this mode is suitable for those who need to enter the workshop, but do not directly contact the product such as QC, warehouse manager, etc.;
③ Only detect the hand, this mode is suitable for assembly line or logistics;
④ Free test card, applicable to the boss/customer inspection workshop, passing directly via swiping card.
FAQ:
1-Are you factory or trading company?
Goldantell:We are a source factory with 14 years experiences in this line.
2- Can you do OEM service?
Goldantell:Sure,OEM and ODM are our strengths.
3- Can I purchase the ESD system without gate?
Goldantell:Sure,you can purchase ESD system only,there are 2 kinds options:
01-to mounted on wall type
02-the ESD system built in a 1 meter height vertical box type.
4- What is the leading time?
Goldantell:Our leading time for samples 3-5 working days,for bulk order like 100-500 sets,
about 20-35 working days.
5- What is the delivery way?
Goldantell:By express,by air or by sea.
6- What is the after sale service?
The esd tester with 2 years quality guaranttee,if you have any installation,our technical person
will help you online.
